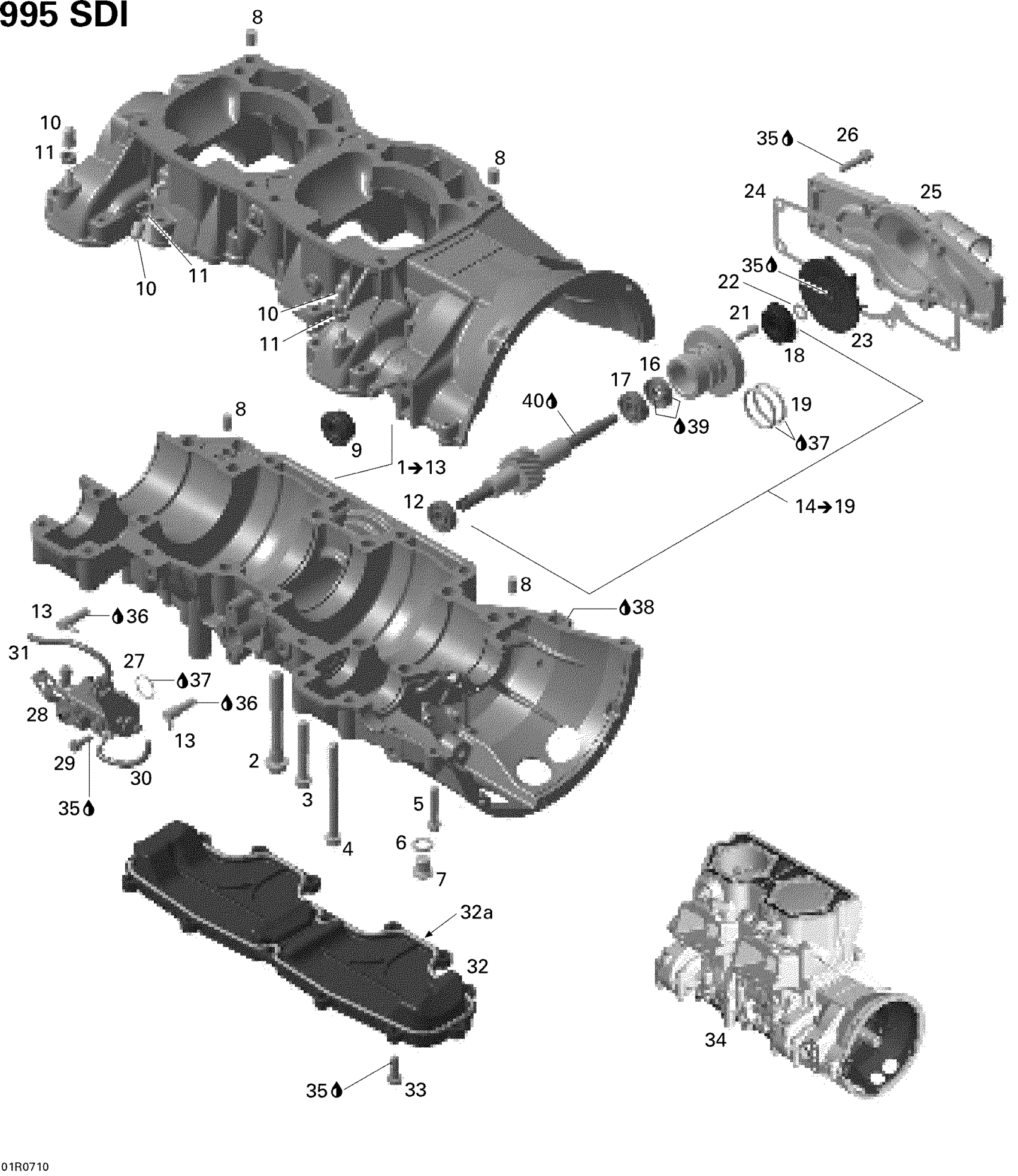

Ski-Doo MACH Z Adrenaline, 2007 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 13

420889226

Unavailable

2

Torx Flange Screw M10 X 85

420440442

Unavailable

3

Torx Flange Screw M10 X 55

420440392

Unavailable

4

Torx Flange Screw M8 X 90

420440412

$7.01

5

Torx Flange Screw M6 X 35

420440274

$0.83

6

Copper Washer

420250640

$0.81

7

Plug Screw M12 x 1,5

420241701

$10.76

8

Center Pin 8 X 12

420632010

$3.07

9

Cable Grommet

420660890

$12.15

10

Cap

420960770

$3.88

11

Clamp

420853653

$7.01

12

Ball Bearing

420232100

$15.57

13

Check Valve

420956511

$28.57

14

WATER PUMP/OIL PUMP ASS'Y - Call your local BRP dealership | Includes 14 to 19

420837671

Unavailable

16

Oil Seal

420230195

$12.65

17

Ball Bearing

420232100

$15.57

18

Rotary Seal

420650371

$35.72

19

O-Ring

420950890

$4.15

21

Allen Screw M5 x 16

420840514

$1.79

22

Thrust Washer

420227945

$3.75

23

Water Impeller

420922805

$35.79

24

GASKET - Call your local BRP dealership

420630620

Unavailable

25

WATER PUMP HOUSING - Call your local BRP dealership

420922920

Unavailable

26

Torx Flange Screw M6 X 25

420641238

$2.68

27

O-Ring

293300041

$7.05

28

OIL PUMP ASS'Y - Call your local BRP dealership

420888772

Unavailable

29

Hex. Tapping Screw M5 X 20

420841555

$1.63

30

Oil Hose 1500Mm Long

219704404

$13.62

31

Oil Hose 1500Mm Long

219704404

$13.62

32

Waterduct Cover, Heat Exchanger

420812342

Unavailable

32a

GASKET - Call your local BRP dealership

420631190

Unavailable

33

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

34

Short Block 995 SDI

420099502

Unavailable

34

REBUILT - CYLINDER - SHORT BLOCK 995SDI - Call your local BRP dealership

421000637

Unavailable

35

Loctite 243, 10 ml

293800060

$20.77

36

Sealant Loctite 648

219703000

$35.72

37

Dow Corning 111, 150 g

413707000

$57.82

38

Loctite 5910, 300 ml

293800081

$57.99

39

Petamo Grease, GHY133N, 400 g

420899271

$57.17

40

Not Available As Spare Part - Friction Washer

Unavailable
