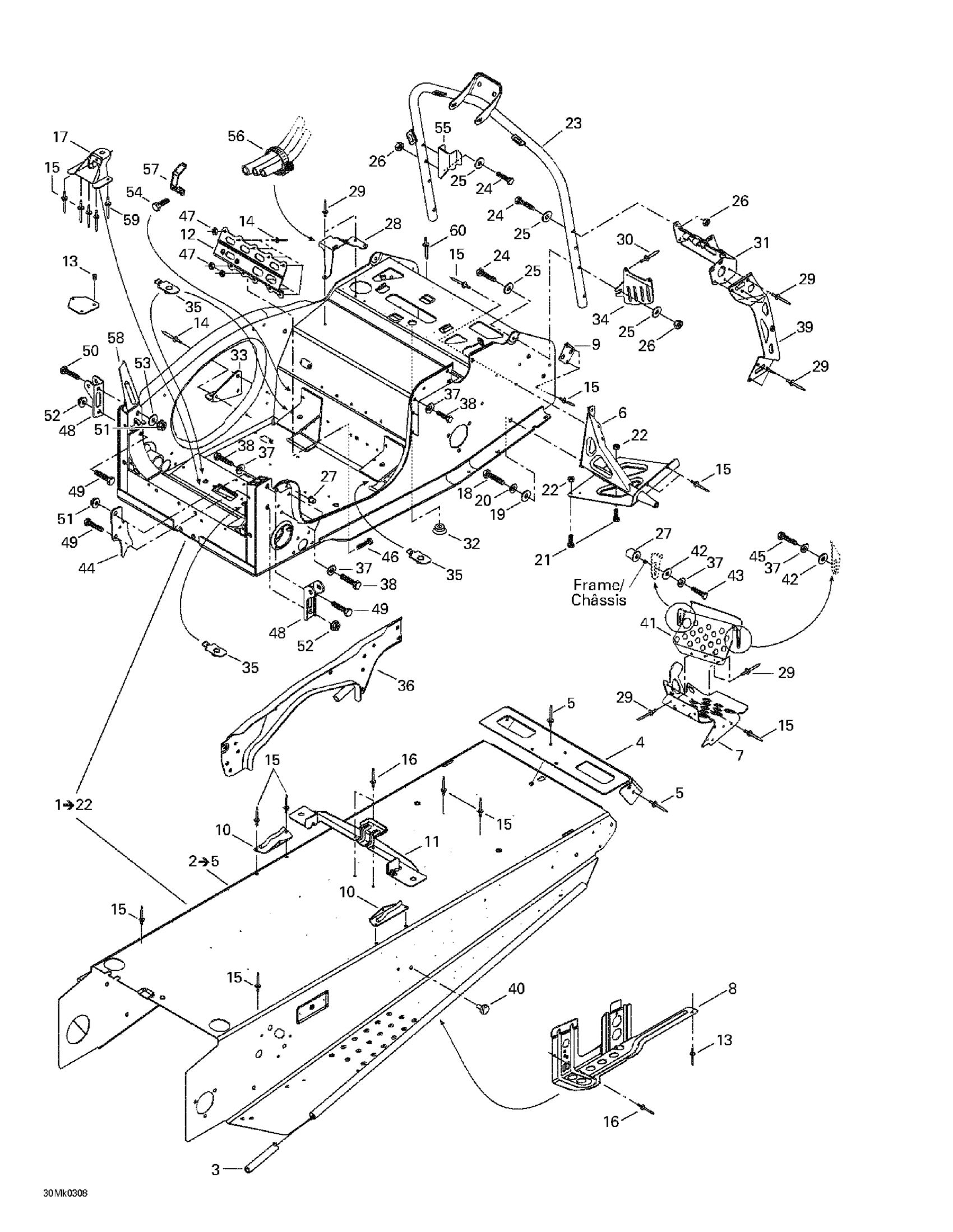

Ski-Doo Mach Z, 2003 09- Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 22. (Radiator and Radiator Protector Included)

518322986

Unavailable

2

Tunnel | Includes 2 - 5.

518322533

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Cap-End

518321301

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518317522

Unavailable

LH Footrest Support

518317523

Unavailable

7

RH Footrest

518321433

Unavailable

LH Footrest

518321434

Unavailable

8

RH SLIDE BRACKET - Call your local BRP dealership

518323315

Unavailable

LH SLIDE BRACKET - Call your local BRP dealership

518323318

Unavailable

9

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

10

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

11

Seat Bracket

518317506

Unavailable

12

Steering Support

518322282

Unavailable

13

Rivet Avex

309909200

Unavailable

14

Avex Rivet

390909100

$0.30

15

Pop Rivet 3/16"

390402200

$0.35

16

Pop Rivet 3/16"

390402400

$0.35

17

Pivot Arm Support

518317509

Unavailable

18

Hex. Screw M10 X 35

207103544

$1.58

19

Flat Washer 10 mm

234001410

$1.26

20

Lock Washer M10

234101402

Unavailable

21

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

22

Hex. Flange Elastic Nut M5

233251414

$1.04

23

Handle Steering Support

518321511

Unavailable

24

Hex. Flange Screw M6 X 35

207063544

$1.37

25

Flat Washer

224061121

$0.53

26

Elastic Stop Nut M6

232561414

$0.55

27

Insert

293450275

$12.99

28

Guide

518317556

Unavailable

29

Pop Rivet 3/16"

390402200

$0.35

30

Rivet 3/16"

293150102

$0.70

31

RH Upper Bracket

518321572

Unavailable

LH Upper Bracket

518317543

Unavailable

32

CAP - Call your local BRP dealership

414859400

Unavailable

33

Muffler Support

518317553

Unavailable

34

Belt Protector

518317572

Unavailable

35

Plate

518317507

Unavailable

36

Strap

518317515

Unavailable

37

Lock Washer M6, Black

234161471

$0.53

38

Hex. Screw M6 X 18

207161844

$0.76

39

RH Vertical Bracket

518317520

Unavailable

LH Vertical Bracket

518317521

Unavailable

40

Panel Fastener

518321954

$7.69

41

RH Holding Toe

518317531

Unavailable

LH Holding Toe

518317532

Unavailable

42

Flat Washer

224061201

$1.37

43

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

44

Heat Shield

518321421

Unavailable

45

Hex. Screw M6 X 16

207161644

$0.74

46

Hex. Screw M5 X 14

207151444

$0.87

47

Elastic Stop Nut M5

232551414

$0.87

48

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

LH Shock Bracket

518317519

Unavailable

49

Hex. Screw M8 X 50

207085044

$1.48

50

Hex. Screw M8 X 55

207085544

$1.68

51

Hex. Flange Elastic Nut M8

233281414

$1.47

52

Hex. Elastic Stop Nut M8

232581414

$0.56

53

Yellow, Washer

503183200

$3.19

54

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

55

Cable Support

515175149

Unavailable

56

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

57

Tubing 6 mm

515175422

Unavailable

58

Support

514052788

Unavailable

59

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

60

Chobert Rivet

390911200

Unavailable
