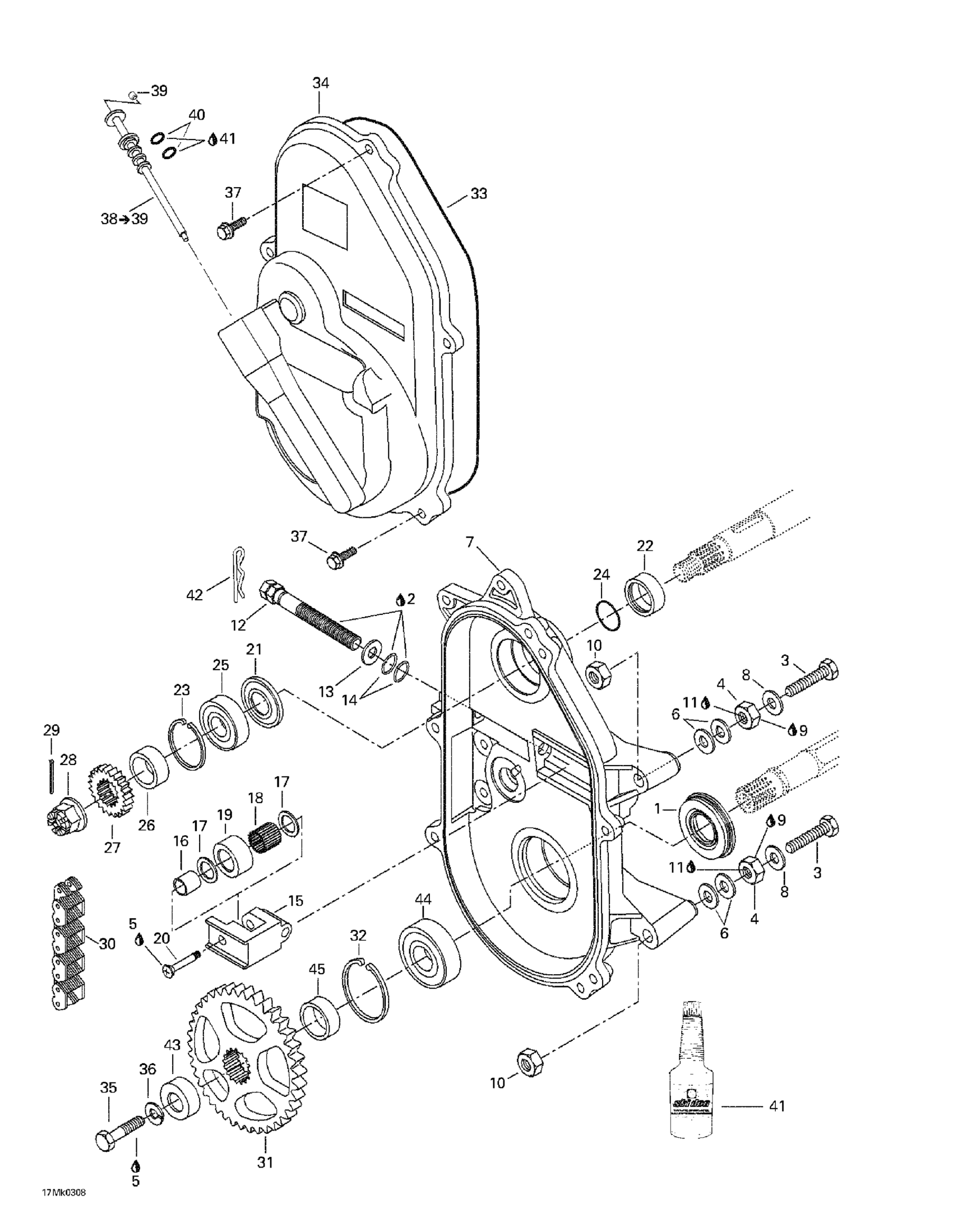

Ski-Doo Mach Z, 2003 05- Chaincase Diagram

#

Description
Price

1

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

2

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

3

Hex. Screw M10 X 75

207107544

Unavailable

4

Spacer

504083800

Unavailable

5

Loctite 271, 10 ml

293800005

$26.99

6

WASHER - Call your local BRP dealership

504073700

Unavailable

7

Chaincase

504152052

Unavailable

8

Washer

503183800

$3.28

9

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Loctite 243, 10 ml

293800060

$21.49

12

ADJUSTING SCREW - Call your local BRP dealership

732601311

Unavailable

13

Flat Washer 10 mm

234001410

$1.26

14

O-Ring

414484400

$7.51

15

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

16

SPACER - Call your local BRP dealership

504080200

Unavailable

17

WASHER - Call your local BRP dealership

504080300

Unavailable

18

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

19

ROLLER - Call your local BRP dealership

414531300

Unavailable

20

SCREW - Call your local BRP dealership

732601144

Unavailable

21

Oil Seal

293200158

$14.22

22

SPACER - Call your local BRP dealership

507031500

Unavailable

23

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

24

O-RING - Call your local BRP dealership

414876700

Unavailable

25

Ball Bearing

293350115

$12.11

26

SHIM - Call your local BRP dealership

504147200

Unavailable

27

SPROCKET, LARGE, 26 TEETH - Call your local BRP dealership | GSX 800 HO

504085300

Unavailable

28

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

29

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

30

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

31

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

32

Circlip (Int-rior)

414784900

Unavailable

33

O-Ring

414362300

Unavailable

34

Chaincase Cover

080039500

Unavailable

35

Hex. Screw M10 X 25

207102544

$1.37

36

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

37

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

38

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

39

SCREW-SET SOCKET DIN.916 - Call your local BRP dealership

206540490

Unavailable

40

O-RING - Call your local BRP dealership

414969400

Unavailable

41

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

42

Hair Pin

414575600

$1.89

43

Cap

501022400

Unavailable

44

Ball Bearing 6206

504152010

Unavailable

45

Shim

504152058

Unavailable
