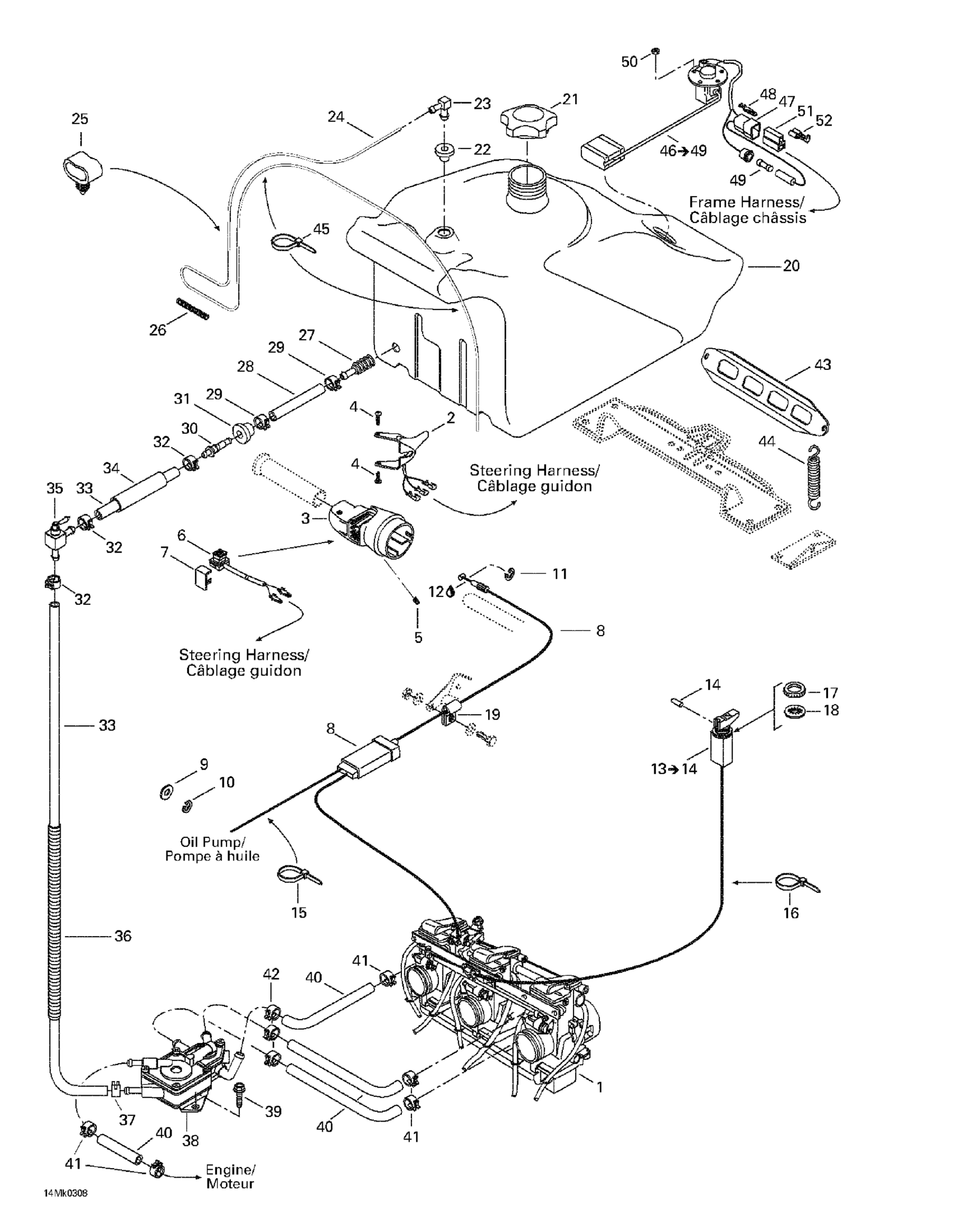

Ski-Doo Mach Z, 2003 02- Fuel System Diagram

#

Description
Price

1

Carburetor Kit TM38-C317

403138633

Unavailable

2

Heat Throttle Handle (26 mm)

512059159

Unavailable

3

Throttle Handle Housing

572098800

Unavailable

4

Flange Screw

732601143

$4.12

5

Socket Set Screw M8 X 10

414440800

$4.12

6

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

7

Switch Cover

572100901

$14.83

8

THROTTLE CABLE - Call your local BRP dealership

512059389

Unavailable

9

Flat Washer 8 mm, Nylon

234081100

$1.39

10

Circlip

414753500

$0.71

11

Circlip

414274500

$0.90

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

Choke Cable Ass'y | Includes 13 - 14.

561205500

Unavailable

14

Spring Pin

372118400

Unavailable

15

Tie-Rap 180 mm

414115200

$0.11

16

Tie-Rap 180 mm

414115200

$0.11

17

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

18

Lock Washer, Interior Teeth

394103300

Unavailable

19

Open Clamp

414176000

$1.99

20

Fuel Tank

513032926

Unavailable

21

Fuel Tank Cap 91 Octane

513033722

$22.49

22

Grommet

513032908

$10.49

23

Male Connector

414814100

$2.22

24

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

25

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

26

Spring

513032961

Unavailable

27

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

28

POLYURETHANE HOSE 7.6MM - Call your local BRP dealership

415097800

Unavailable

29

Norma Spring Clamp

513033010

$9.69

30

Male Connector

414872700

$1.90

31

Grommet | Europe

707800347

$10.49

32

Spring Clamp

414655700

$0.72

33

HOSE 9.5 MM, METER - Call your local BRP dealership

709000022

Unavailable

34

Hose (Rubber)

513033032

Unavailable

35

Shut-Off Valve

415112200

Unavailable

36

Tubing 16 Mm 1000Mm Long

219704408

$7.49

37

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

38

FUEL PUMP - Call your local BRP dealership

513032929

$79.99

39

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

40

Hose

219704549

$50.99

41

Spring Clamp

414415200

$0.88

42

Spring Clamp

513033014

Unavailable

43

Fuel Tank Bracket

517249200

Unavailable

44

Spring

415107100

$6.35

45

Tie-Rap 180 mm

414115200

$0.11

46

Fuel Sensor Ass'y | Includes 46 - 49.

415080800

Unavailable

47

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Fuse, 0.25 Ampere

410112400

Unavailable

50

Elastic Stop Nut M5

232551414

$0.87

51

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

52

Female Terminal

561503100

$2.41
