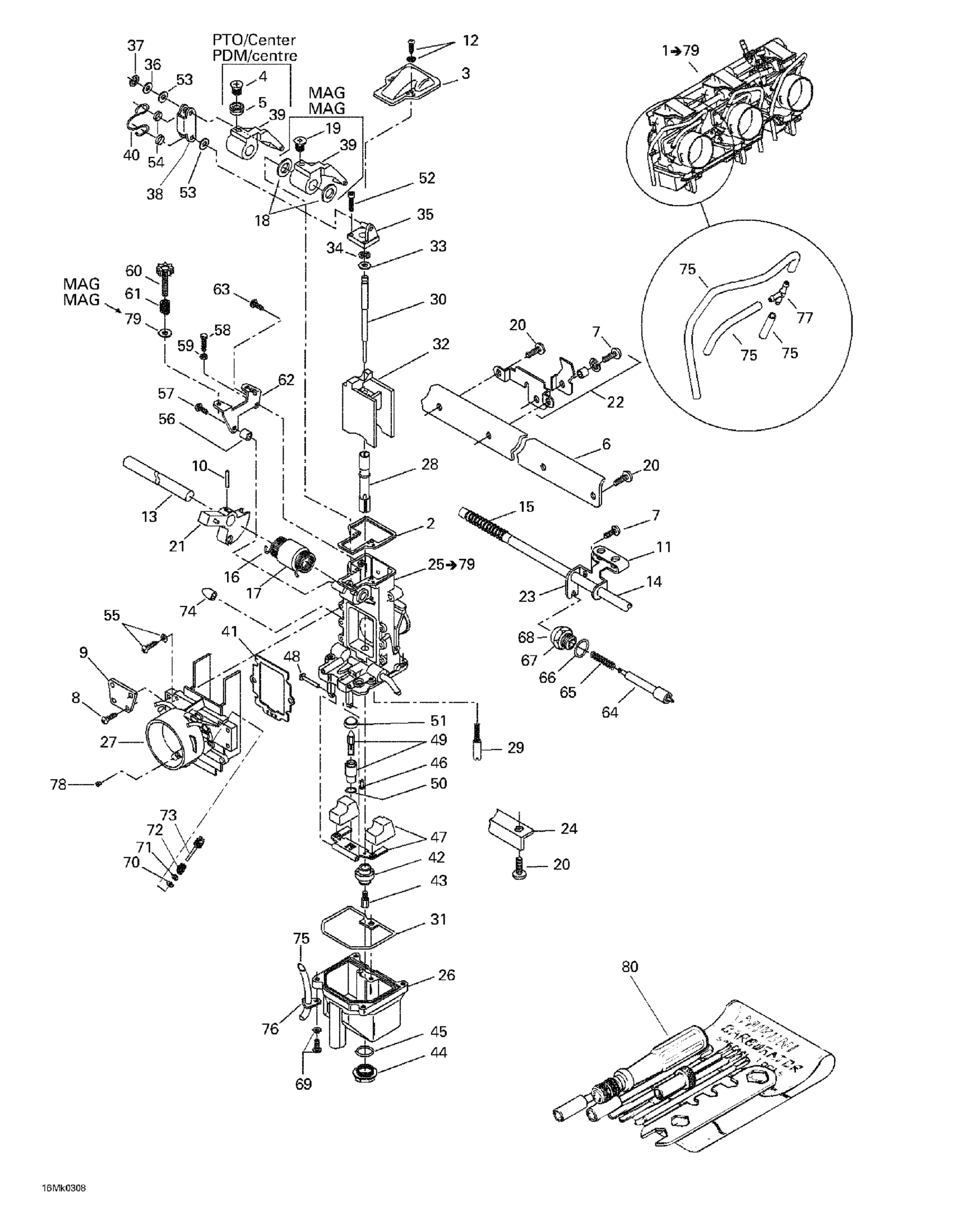

Ski-Doo Mach Z, 2003 02- Carburetors Diagram

#

Description
Price

1

Carburetor Kit TM38-C317

403138663

Unavailable

2

Gasket

404143600

Unavailable

3

Cover

404142700

Unavailable

4

Screw (PTO/Center)

404139000

Unavailable

5

Ring (PTO/Center)

404143500

Unavailable

6

Plate

404142300

Unavailable

7

Screw

404140500

Unavailable

8

Screw

404136100

$6.38

9

Plate

404142400

Unavailable

10

Pin

404140100

Unavailable

11

Lever

404143900

Unavailable

12

Screw

404139100

Unavailable

13

Throttle Shaft

404137100

Unavailable

14

Choke Shaft

404137200

Unavailable

15

Spring

404158000

Unavailable

16

Spring

404143200

Unavailable

17

Ring

404141700

Unavailable

18

Packing (MAG)

404144400

Unavailable

19

Screw (MAG)

404138900

Unavailable

20

Screw

404138800

$6.06

21

Lever Ass'y

404142100

Unavailable

22

Bracket Ass'y

404155100

Unavailable

23

Starter Lever

404140600

Unavailable

24

Plate

404142500

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

26

Float Body Ass'y

404161841

Unavailable

27

Funnel (PTO)

404161891

Unavailable

Funnel (Center)

404161890

Unavailable

Funnel (MAG)

404161889

Unavailable

28

Needle Jet

404161830

Unavailable

29

Pilot Jet 50

404144800

Unavailable

30

Needle J8-8ADY01-41

404161829

Unavailable

31

O'Ring

404137000

Unavailable

32

Piston Valve 2.0

404152900

Unavailable

33

Packing

404137600

$6.38

34

Circlip

404113300

Unavailable

35

Plate Ass'y

404142000

Unavailable

36

Washer

404139500

Unavailable

37

E-Ring

404138300

$11.18

38

Plate

404144000

Unavailable

39

Throttle Lever (PTO/Center)

404143000

Unavailable

Throttle Lever (MAG)

404143100

Unavailable

40

Clip

404144100

Unavailable

41

Gasket

404143700

Unavailable

42

Ring

404142900

Unavailable

43

Main Jet 290 This part replaces 404162139.

404101100

$11.13

44

Drain Plug Screw

404107400

$22.99

45

O-Ring

404107300

$9.06

46

Screw

404141000

Unavailable

47

Float

404149800

Unavailable

48

Lever Pin

404103300

$6.27

49

NEEDLE SEAT 1.5 - Call your local BRP dealership

404149500

Unavailable

50

O-RING - Call your local BRP dealership

270500127

Unavailable

51

Filter

404141200

Unavailable

52

Screw

404161920

$12.70

53

Packing

404138100

Unavailable

54

Ring

404144200

Unavailable

55

Screw

404145100

Unavailable

56

Ring (MAG)

404141800

Unavailable

57

Screw

404138800

$6.06

58

Bolt (MAG)

404138000

Unavailable

59

Nut (MAG)

404139600

Unavailable

60

Adjustment Screw

404137500

$19.49

61

Spring (MAG)

404138200

Unavailable

62

Bracket (MAG)

404142600

Unavailable

63

Screw (MAG)

404135900

Unavailable

64

Plunger Ass'y

404161842

Unavailable

65

Spring

404141100

Unavailable

66

O-Ring

404140200

Unavailable

67

Guide Holder

404136900

$16.49

68

Cap

404140000

$11.18

69

Screw

404138700

$4.14

70

O-RING - Call your local BRP dealership

404139900

Unavailable

71

Washer

404140900

Unavailable

72

SPRING - Call your local BRP dealership

404139800

Unavailable

73

Adjuster Screw

404154200

Unavailable

74

CAP - Call your local BRP dealership

404154900

Unavailable

75

HOSE - Call your local BRP dealership

404161888

Unavailable

76

Plate

404144900

Unavailable

77

T Fitting

270500347

Unavailable

78

Plug Screw

404131700

Unavailable

79

Washer (MAG)

404161885

Unavailable

80

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
