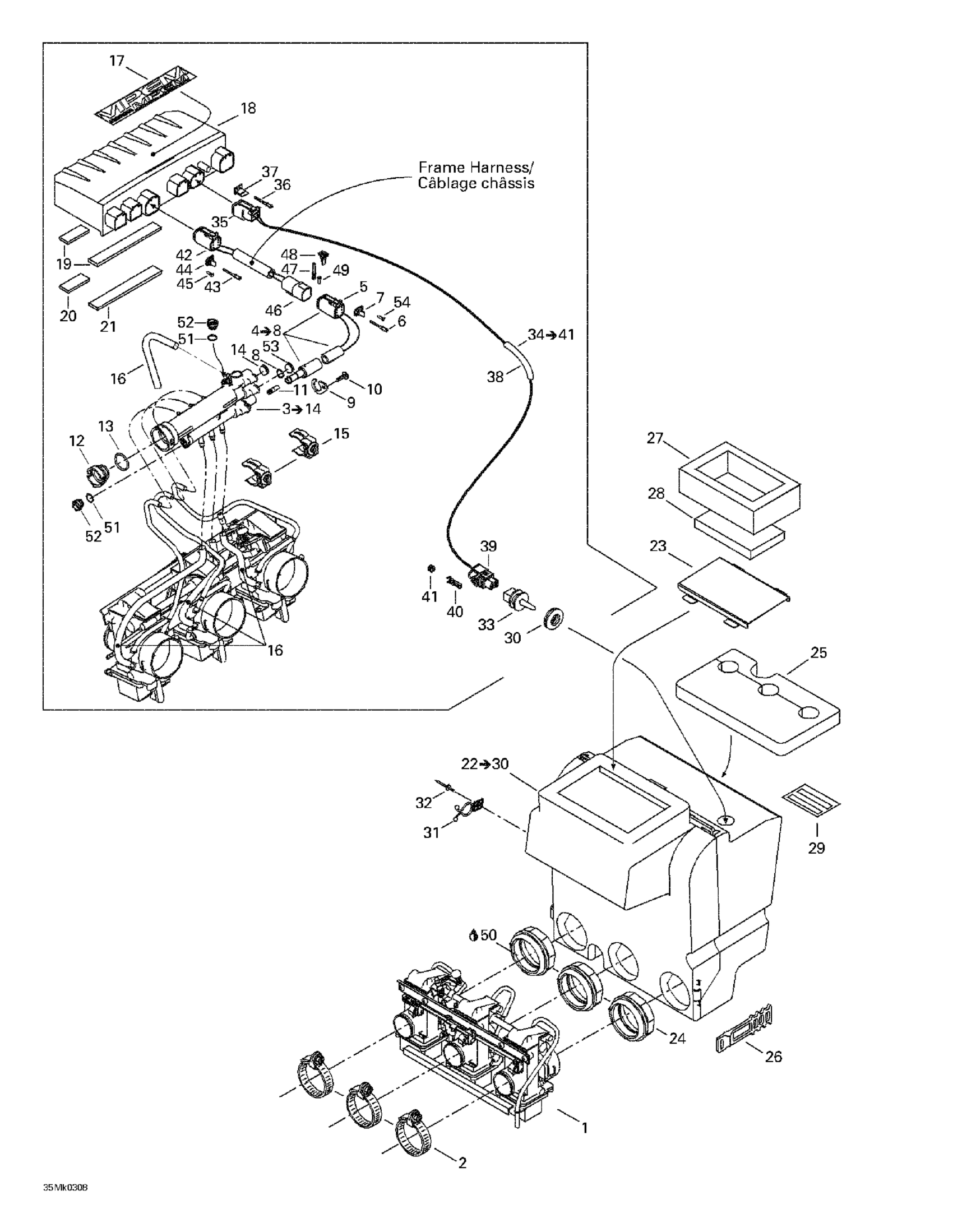

Ski-Doo Mach Z, 2003 02- Air Intake System Diagram
#
1
Carburetor Kit TM38-C317
403138663
Unavailable
2
GEMI CLAMP - Call your local BRP dealership
512059005
Unavailable
3
Pressure Manifold Ass'y | Includes 3 - 14.
512059566
Unavailable
4
Pressure Manifold Harness | Includes 4 - 8.
515175271
Unavailable
5
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
409015400
Unavailable
6
FEMALE TERMINAL - Call your local BRP dealership
409015100
Unavailable
7
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership
409014900
Unavailable
8
O-Ring | Grand Touring 600. Grand Touring 700.
512059558
Unavailable
9
SOLENOID LOCK - Call your local BRP dealership
415061600
Unavailable
11
STARTER JET - Call your local BRP dealership
404161825
Unavailable
12
Cap | Grand Touring 600. Grand Touring 700.
512058949
Unavailable
13
O-Ring | Grand Touring 600. Grand Touring 700.
512058950
Unavailable
14
Cap | Grand Touring 600. Grand Touring 700.
512059557
Unavailable
15
SUPPORT - Call your local BRP dealership
512058919
Unavailable
17
Electrical Box Decal
516000245
Unavailable
18
Calibration Module
512059292
Unavailable
19
VELCRO LOOP - Call your local BRP dealership
512059338
Unavailable
21
VELCRO 1/2? - Call your local BRP dealership
415110900
Unavailable
22
Air Intake Ass'y | Includes 22 - 30.
508000242
Unavailable
23
Intake Grill
517294400
Unavailable
24
Air Intake Adaptor
570069100
Unavailable
25
Inner Foam
415081200
Unavailable
26
LATCH - Call your local BRP dealership
570069700
Unavailable
27
Lower Foam
415081300
Unavailable
28
Air Filter
415081400
Unavailable
29
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
30
GROMMET - Call your local BRP dealership
570065500
Unavailable
31
CLIP - Call your local BRP dealership
415115100
Unavailable
32
RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership
293150034
Unavailable
33
AIR TEMPERATURE SENSOR - Call your local BRP dealership
270600000
Unavailable
34
Temperature Harness | Includes 34 - 41.
515175582
Unavailable
35
Female Terminal Housing (2 circuits)
515175256
Unavailable
36
FEMALE TERMINAL - Call your local BRP dealership
409015100
Unavailable
37
Female Lock (2 circuits)
515175255
Unavailable
39
FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
515175588
Unavailable
42
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
409015400
Unavailable
43
FEMALE TERMINAL - Call your local BRP dealership
409015100
Unavailable
44
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership
409014900
Unavailable
45
PLUG - Call your local BRP dealership
515175303
Unavailable
46
Male Terminal Housing, 6 Circuits
409015200
Unavailable
47
MALE TERMINAL - Call your local BRP dealership
409014800
Unavailable
48
Male Lock, 6 Circuits
409014600
Unavailable
49
PLUG - Call your local BRP dealership
515175303
Unavailable
50
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
51
O-Ring | Grand Touring 600. Grand Touring 700.
512058925
Unavailable
52
Cap | Grand Touring 600. Grand Touring 700.
512058921
Unavailable
53
Cap | Grand Touring 600. Grand Touring 700.
512058982
Unavailable
54
PLUG - Call your local BRP dealership
515175303
Unavailable
