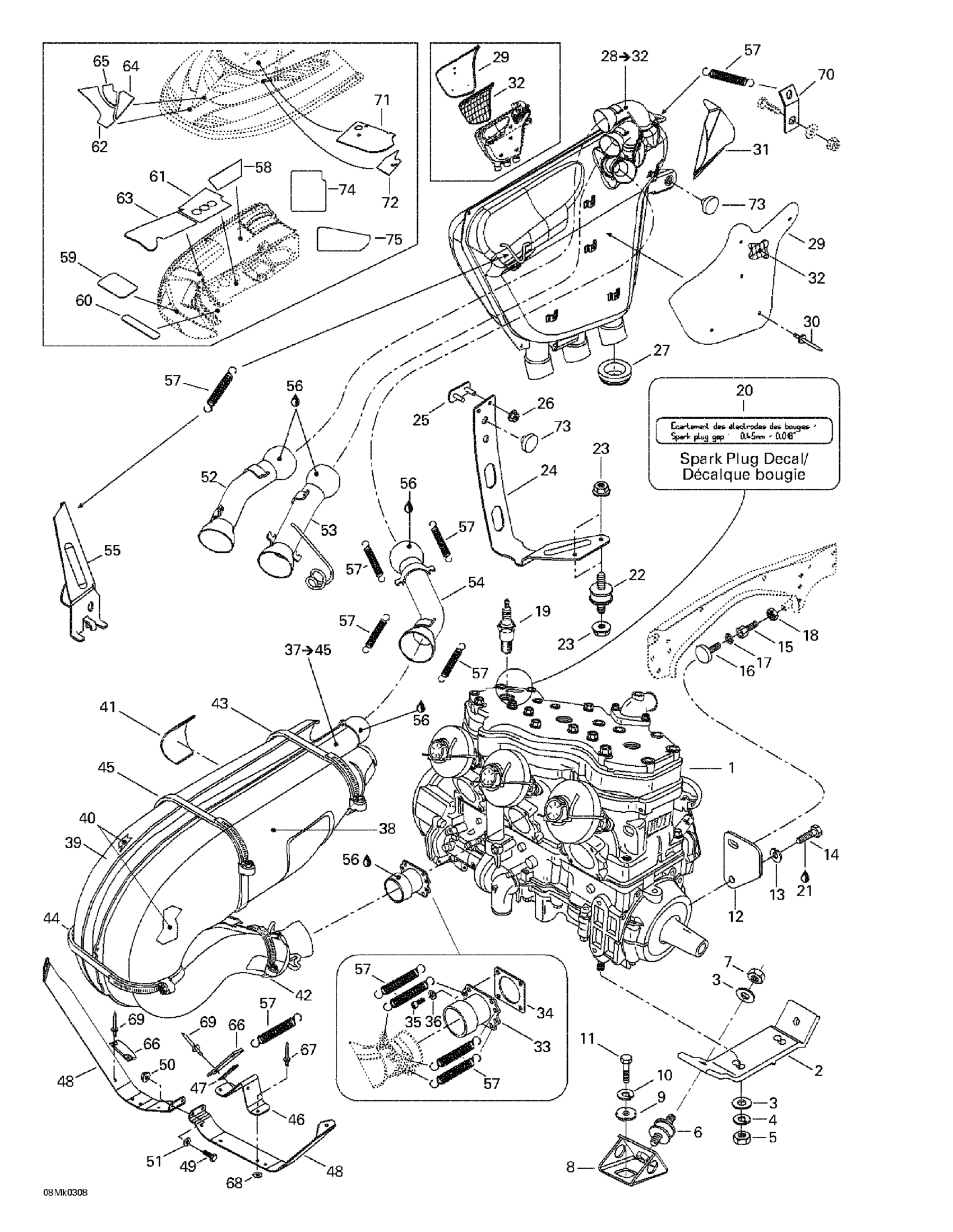

Ski-Doo Mach Z, 2003 01- Engine Support And Muffler Diagram

#

Description
Price

1

Engine <<809>>

400800310

Unavailable

2

Engine Support (MAG Side)

512059089

Unavailable

Engine Support (PTO Side)

512059090

Unavailable

3

Flat Washer 10 mm

234001410

$1.26

4

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

7

Elastic Locking Nut M10 X 1.5

233601416

$1.69

8

Engine Support

512050900

Unavailable

9

Lock Washer

512056700

$3.17

10

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

11

Hex. Screw M10 X 25

207102544

$1.37

12

STOPPER PLATE - Call your local BRP dealership

512056000

Unavailable

13

Lock Washer 8 mm

234181401

$0.92

14

Hex. Screw M8 x 16

207181644

$1.15

15

Stopper Screw

512056900

Unavailable

16

STOPPER - Call your local BRP dealership

512059055

Unavailable

17

Washer

512059058

Unavailable

18

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

19

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

20

Spark Plug Decal

516000986

Unavailable

21

Loctite 271, 10 ml

293800005

$26.99

22

RUBBER MOUNT - Call your local BRP dealership

514052743

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Support

514052887

Unavailable

25

Bracket

517294300

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Exhaust Grommet

570066200

Unavailable

28

Muffler Ass'y | Includes 28 - 32.

514053346

Unavailable

29

RH Heat Shield

514053374

Unavailable

LH Heat Shield

514052835

Unavailable

30

Pop Rivet 3/16”

390910000

$0.57

31

Heat Shield

514052862

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

33

Exhaust Socket

420978818

Unavailable

34

Gasket

420850552

$8.85

35

Socket Head Screw M6 X 25

205062544

$1.15

36

Lock Washer M6, Black

234161471

$0.53

37

Tuned Pipe Ass'y | Includes 37 - 45.

514052766

Unavailable

38

Upper Shell

514052774

Unavailable

39

Lower Shell

514052775

Unavailable

40

Insulator

514052776

Unavailable

41

Rubber Pad

514052866

Unavailable

42

Norma Gear Clamp

293650118

$13.16

43

Norma Clamp

514052860

Unavailable

44

Norma Clamp

514052924

$14.22

45

Gear Clamp (Norma)

514052861

$8.29

46

Support

514052954

Unavailable

47

Spring Bracket

514052955

Unavailable

48

RH Tuned Pipe Support

514052777

Unavailable

LH Tuned Pipe Support

514052778

Unavailable

49

Hex. Screw M5 X 20

207152044

$0.90

50

Hex. Flange Elastic Nut M5

233251414

$1.04

51

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

52

Tail Pipe (MAG)

514052779

Unavailable

53

Tail Pipe (Center)

514052782

Unavailable

54

Tail Pipe (PTO)

514052785

Unavailable

55

Support

514052788

Unavailable

56

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

57

Spring

415107100

$6.35

58

RH Reflective Sheet

415083800

Unavailable

59

Leaf Valve Ø16 X 0.114 (C36)

415083900

Unavailable

60

Reflective Sheet

415111900

Unavailable

61

Reflective Sheet

415115000

Unavailable

62

RH Reflective Sheet

415112300

Unavailable

LH Reflective Sheet

514053469

Unavailable

63

Reflective Sheet

514052950

Unavailable

64

RH Reflective Sheet

415112500

Unavailable

LH Reflective Sheet

415112600

Unavailable

65

RH Reflective Sheet

415114800

Unavailable

LH Reflective Sheet

514053470

Unavailable

66

Rubber Pad

570044100

Unavailable

67

Pop Rivet 3/16"

390906800

$0.93

68

Flat Washer

517225900

$0.18

69

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

70

Spring Bracket

514051000

Unavailable

71

Reflective Sheet

514052951

Unavailable

72

Reflective Sheet

514052956

Unavailable

73

Rubber Bumper

514053654

$50.99

74

Reflective Sheet

514052952

Unavailable

75

Washer

514053953

$0.77
