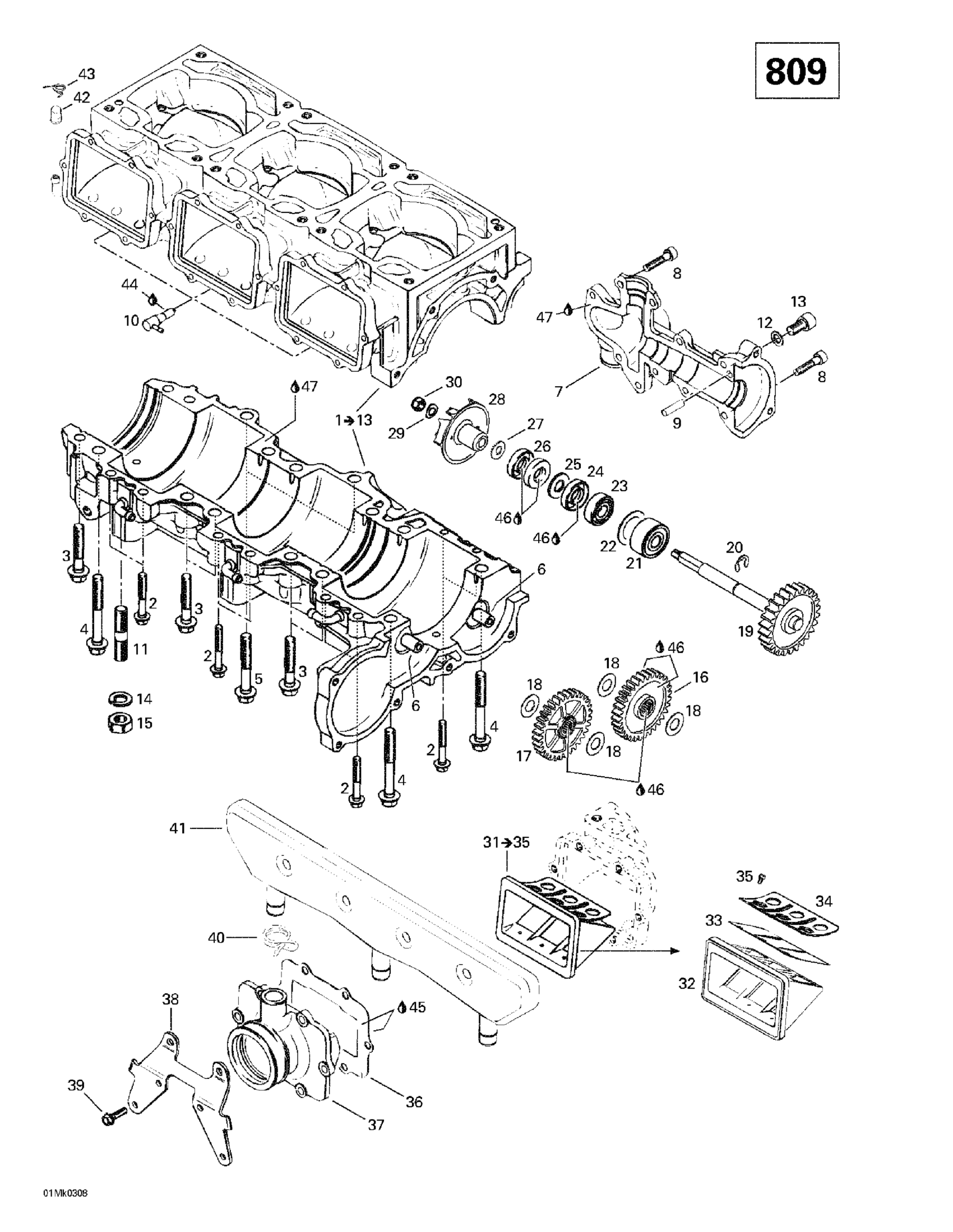

Ski-Doo Mach Z, 2003 01- Crankcase, Reed Valve, Water Pump Diagram
#
Description
Price
1
Crankcase Water Pump Cover Ass'y | Includes 1 - 13.
420888731
Unavailable
2
HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
420941451
Unavailable
5
Hex. Flange Screw M8 X 53.5
420240326
Unavailable
6
INTERMEDIATE GEAR SHAFT - Call your local BRP dealership
420929935
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
9
Dowel Pin
420429230
Unavailable
11
Stud M10 x 25
420940400
Unavailable
13
SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership
205081644
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Sprocket (32 Teeth)
420834395
Unavailable
17
SPROCKET, 32 TEETH - Call your local BRP dealership
420834267
Unavailable
18
THRUST WASHER - Call your local BRP dealership
420927952
Unavailable
19
Waterpump - Shaft/Gear Ass'y
420837431
Unavailable
20
RETAINING RING - Call your local BRP dealership
420845390
Unavailable
21
Bearing_Ball - Call your local BRP dealership
420832490
Unavailable
22
SHIM 1 MM - Call your local BRP dealership
420944466
Unavailable
26
OIL SEAL - Call your local BRP dealership
420950400
Unavailable
27
Washer
420227155
Unavailable
28
Impeller Water
420922445
Unavailable
29
SPRING WASHER - Call your local BRP dealership
420845020
Unavailable
30
Locking Nut M6
420842042
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
36
GASKET 1 MM - Call your local BRP dealership
420950292
Unavailable
37
INTAKE SOCKET - Call your local BRP dealership
420867848
Unavailable
38
CARRIER - Call your local BRP dealership
420851351
Unavailable
40
Clamp
420851360
Unavailable
41
Intake Resonator
420867797
Unavailable
43
CLAMP - Call your local BRP dealership
420938190
Unavailable
