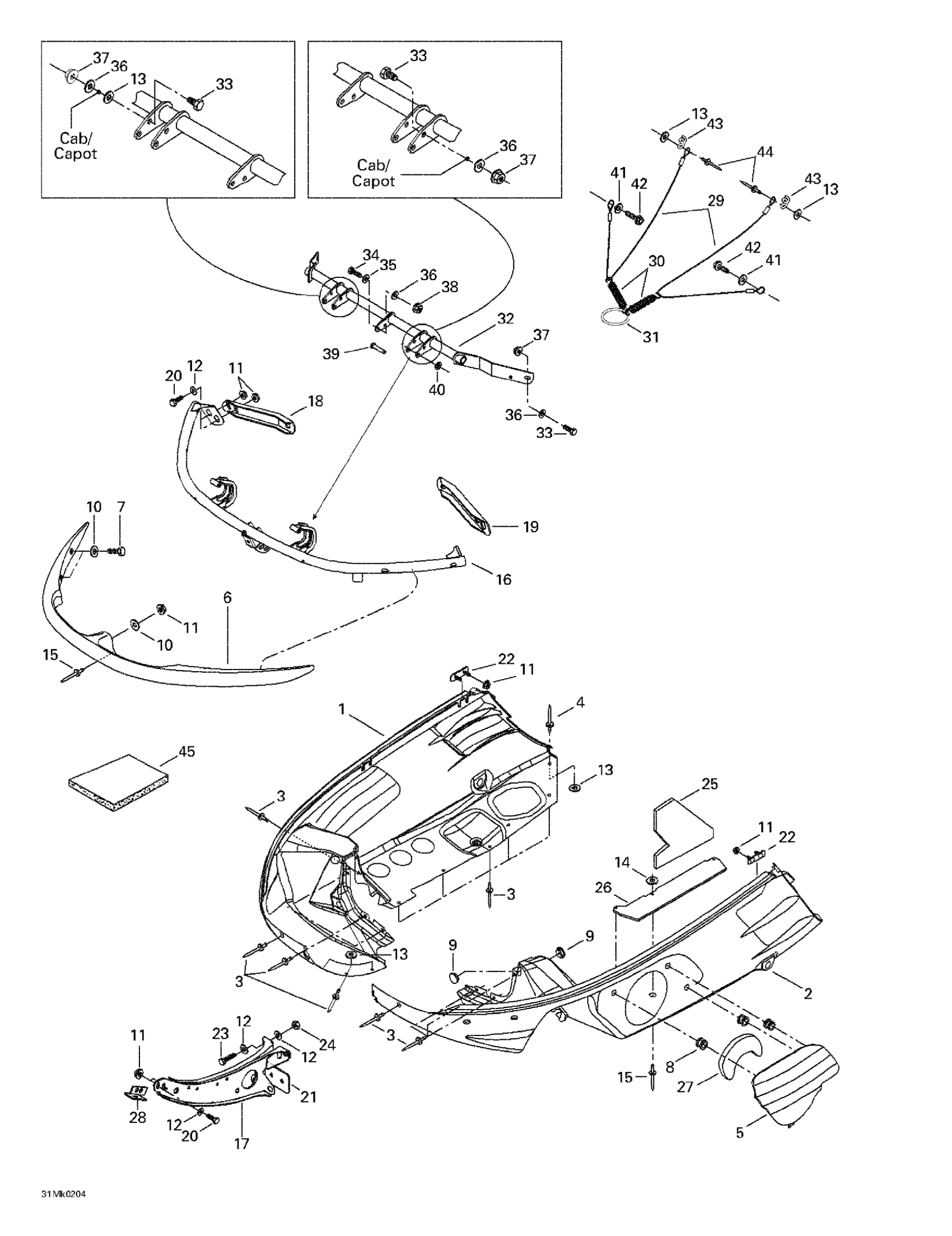

Ski-Doo Mach Z, 2002 Bottom Pan Diagram

#

Description
Price

1

Deep Black, RH Bottom Pan

572087000

Unavailable

2

Deep Black, LH Bottom Pan

572087100

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4

Pop Rivet 3/16"

390402300

$0.64

5

DEEP BLACK, BOTTOM PAN DOOR - Call your local BRP dealership

572098500

Unavailable

6

Deep Black, Front Bumper

572087200

Unavailable

7

Hex. Screw M6 X 30

207063044

$0.98

8

Grommet

414036300

$2.22

9

Black, Nylon Cap

414916600

$4.32

10

Flat Washer

224061201

$1.11

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

Flat Washer

224061121

$0.44

13

Washer

517124300

$0.16

14

Flat Washer

517225900

$0.17

15

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

16

Hinge Bracket

502006523

Unavailable

17

Center Support

502006549

Unavailable

18

RH Support

517288400

Unavailable

19

LH Support

517288500

Unavailable

20

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

21

Plate

517288600

Unavailable

22

Bracket

517294300

Unavailable

23

Hex. Screw M6 X 60

207066044

$0.56

24

Elastic Stop Nut M6

232561414

$1.55

25

Foam, Bottom Pan

415111300

Unavailable

26

Protector

517299500

Unavailable

27

Foam, Door

415112800

Unavailable

28

Front Support

517302009

Unavailable

29

RETAINER CABLE - Call your local BRP dealership

415093900

$12.49

30

Spring

414185600

Unavailable

31

RING - Call your local BRP dealership

415058300

Unavailable

32

Hinge

517302187

Unavailable

33

Hex. Screw M5 X 16 | 4X4

207151644

$0.74

34

HEX. SCREW M4 X 16 - Call your local BRP dealership

207141644

Unavailable

35

WASHER - Call your local BRP dealership

391301000

$0.65

36

WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.

420845330

Unavailable

37

Hex. Flange Elastic Nut M5

233251414

$1.66

38

Elastic Stop Nut M4

232541484

$0.61

39

RIVET-STEEL SOLID - Call your local BRP dealership

390004800

$0.97

40

Push Nut

389804300

$0.43

41

Washer | DS 650 X

391301600

$0.48

42

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

$1.45

43

Bracket

517262800

Unavailable

44

Pop Rivet 3/16"

390406500

$0.70

45

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable
