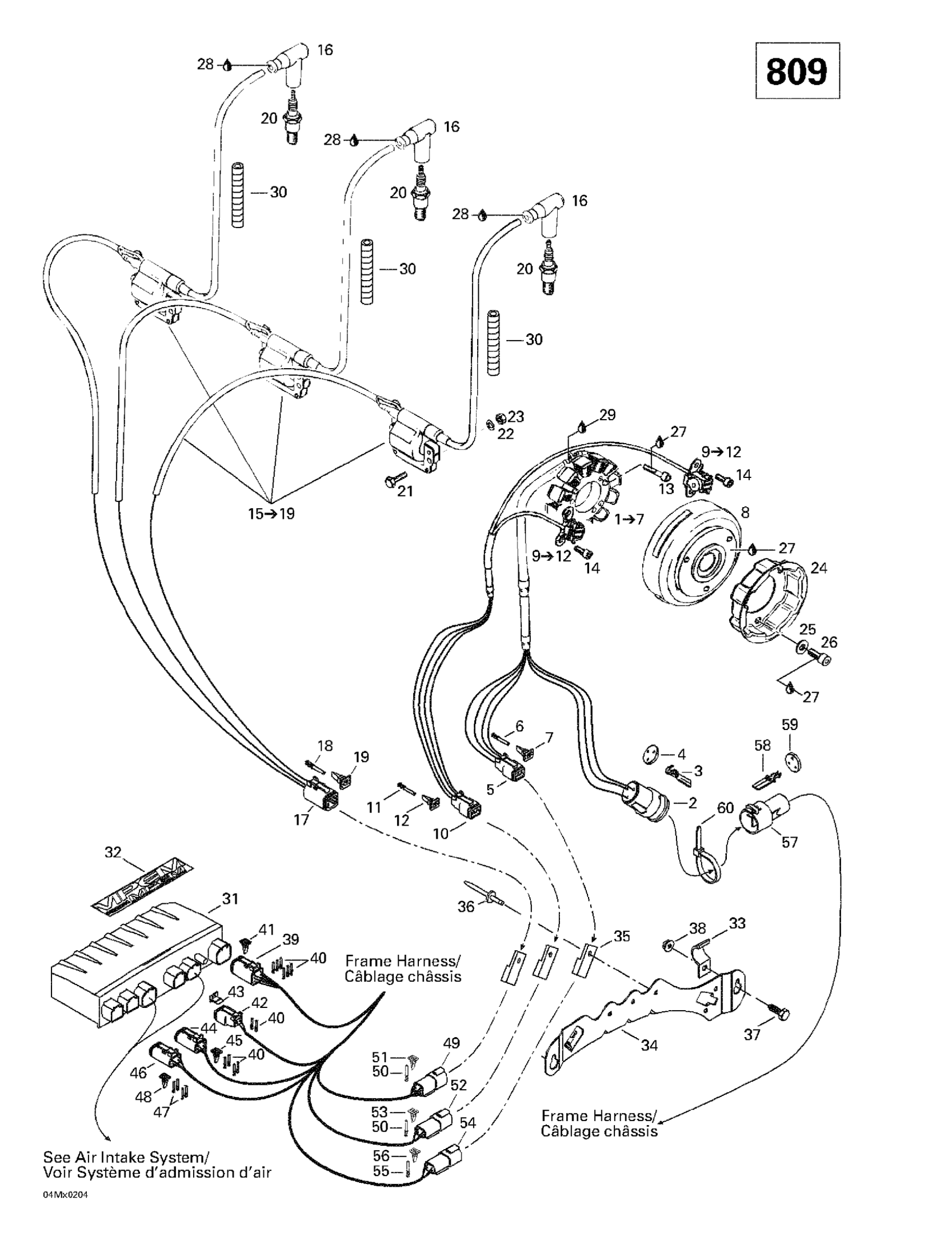

Ski-Doo Mach Z, 2002 Magneto (12V, 290W) 2 Diagram

#

Description
Price

1

Stator Ass'y | Includes 1 - 7.

410922927

Unavailable

2

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

4

SEAL - Call your local BRP dealership

409208500

Unavailable

5

Female Terminal Housing (4 circuits)

515175245

Unavailable

6

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

7

Female Lock (4 circuits)

515175246

Unavailable

8

Magneto Flywheel

410922930

Unavailable

9

Pick Up Ass'y | Includes 9 - 12.

410922909

Unavailable

10

Male Connector, 4 Circuits | CE

278000739

$14.92

11

Female Terminal

278000632

$1.69

12

Male Lock, 4 Circuits | CE

278000738

$2.91

13

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

$1.49

14

Allen Screw M6 X 14

420840391

$1.49

15

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

16

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

17

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

18

Female Terminal

278000632

$1.69

19

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

20

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.03

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

22

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

23

Hex. Nut M6

232061414

$0.44

24

Starting Pulley

420852418

Unavailable

25

Flat Washer

420827405

$1.66

26

Socket Head Screw M8 X 12

420841520

$1.68

27

Loctite 243, 10 ml

293800060

$20.77

28

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

29

Silicone Sealant 51388, 300 ml

296000309

$35.72

30

Tubing 10 MM 1000MM Long

219704407

$2.20

31

Calibration Module

512059292

Unavailable

32

Electrical Box Decal

516000245

Unavailable

33

Bracket

517274400

Unavailable

34

Housing Support

515175148

Unavailable

35

Clip

270000141

$8.33

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Hex. Screw M5 X 14

207151444

$0.72

38

Hex. Flange Elastic Nut M5

233251414

$1.66

39

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

40

Female Terminal

278000632

$1.69

41

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

42

Female Connector, 2 Circuits

409207300

$9.60

43

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

44

Male Connector, 4 Circuits | CE

278000739

$14.92

45

Male Lock, 4 Circuits | CE

278000738

$2.91

46

Female Terminal Housing (4 circuits)

515175245

Unavailable

47

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

48

Female Lock (4 circuits)

515175246

Unavailable

49

Male Terminal Housing, 6 Circuits

710001539

$15.57

50

Male Terminal

278000631

$4.12

51

Female Lock, 6 Circuits

278000735

$3.02

52

Female Housing, 4 Circuits

278000635

$14.02

53

Female Wedge, 4 Circuits

278000636

$4.12

54

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

$30.74

55

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

56

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

$6.12

57

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

58

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

59

SEAL - Call your local BRP dealership

409208500

Unavailable

60

Tie-Rap 180 mm

414115200

$0.09
