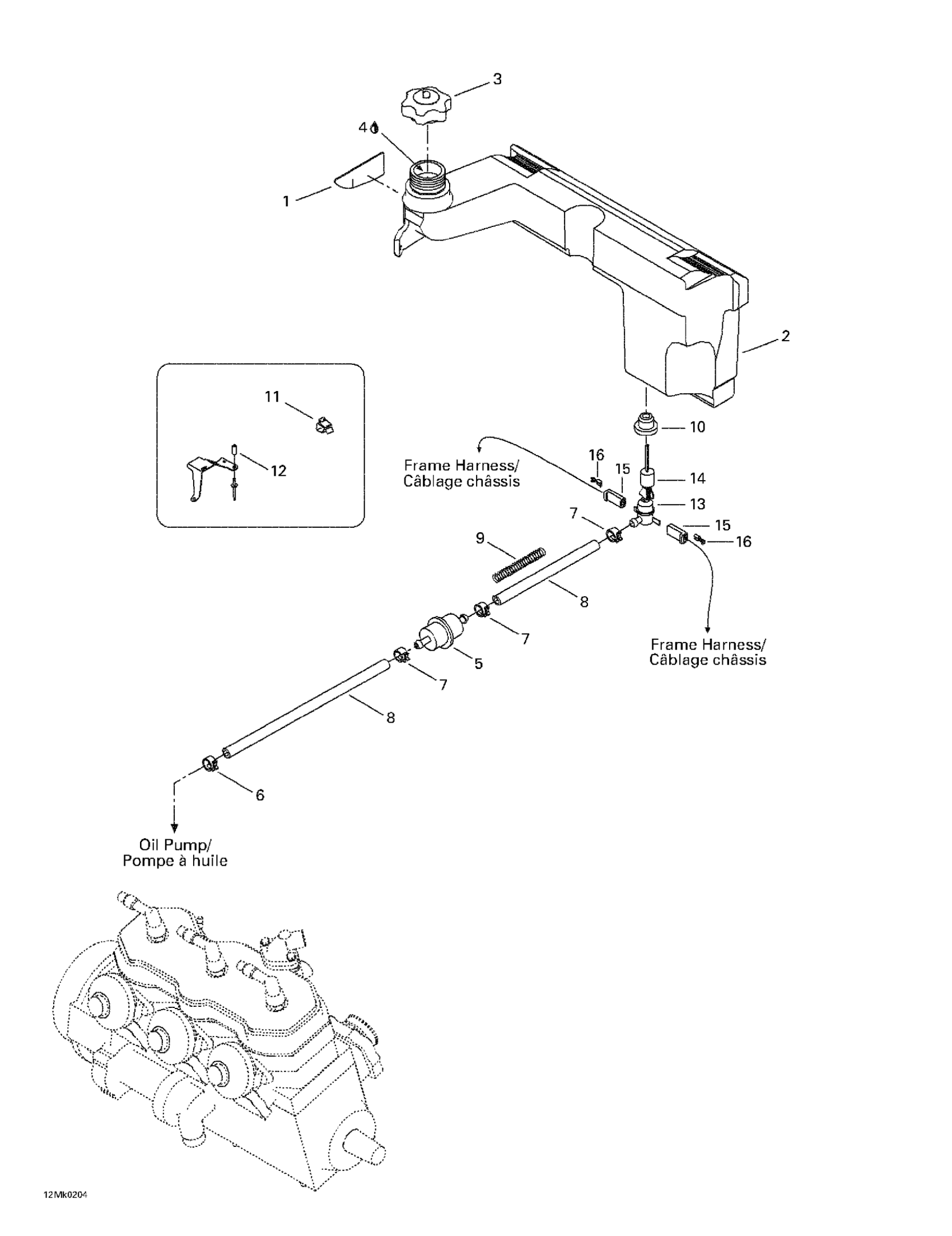

Ski-Doo Mach Z, 2002 Oil Tank Diagram

#

Description
Price

1

Reflective Sheet

514052953

Unavailable

2

Injection Oil Tank

572088500

$106.89

3

CAP - Call your local BRP dealership

519000044

$40.74

4

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

$1,896.12

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

5

Filter

414536500

$3.25

6

Spring Clamp

414420700

$0.68

7

Spring Clamp

414415200

$0.83

8

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

9

Spring

519000001

Unavailable

10

Insulating Ring

570023000

$4.62

11

Clip

414227300

$1.45

12

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

13

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

14

Float

414681900

Unavailable

15

Female Terminal Housing (1 circuit)

409204800

Unavailable

16

Female Terminal

561503100

Unavailable
