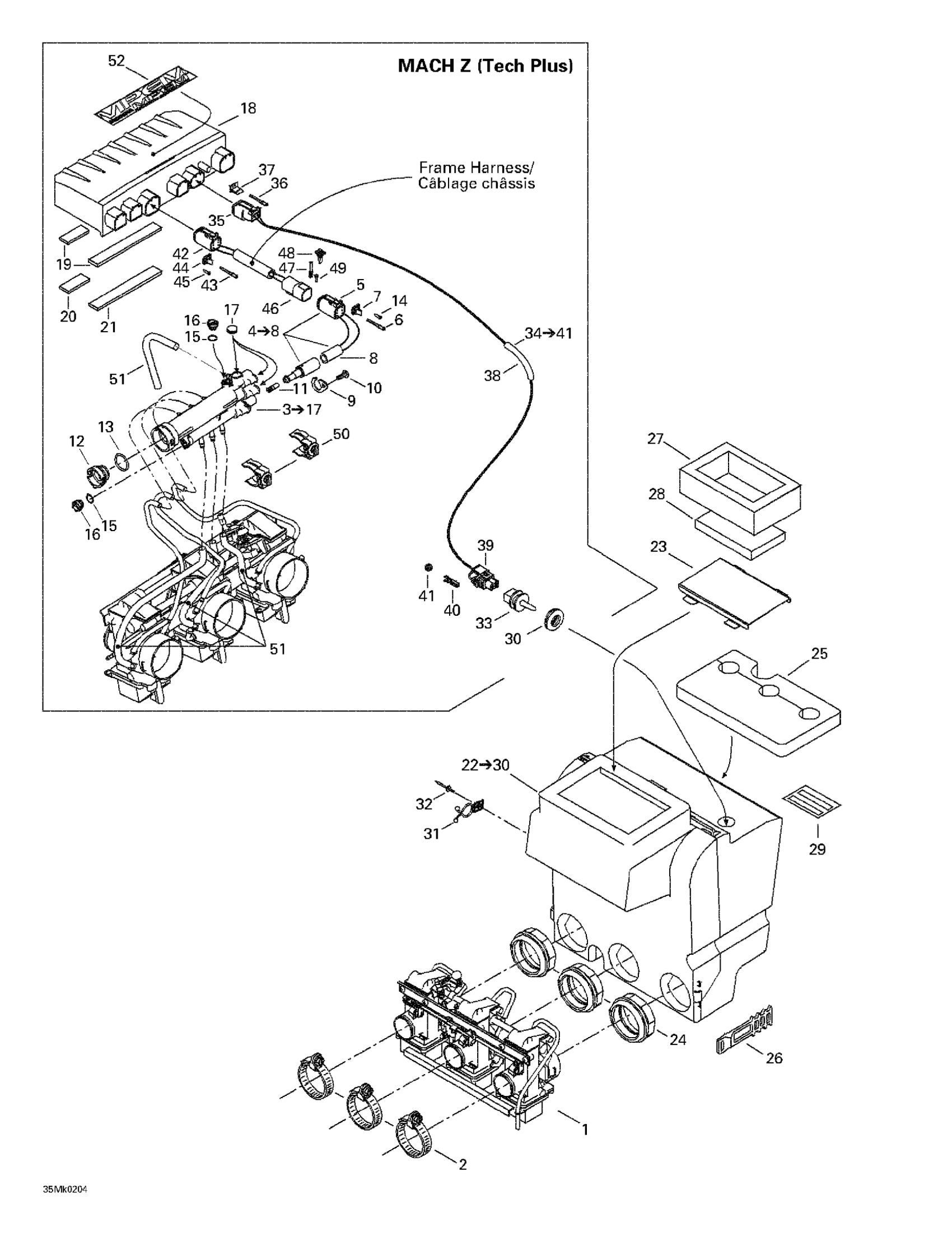

Ski-Doo Mach Z, 2002 Air Intake System Diagram

#

Description
Price

1

Carburetor Kit TM38-C317

403138663

Unavailable

2

GEMI CLAMP - Call your local BRP dealership

512059005

Unavailable

3

Pressure Manifold Ass'y | Includes 3 - 14.

512059566

Unavailable

4

Pressure Manifold Harness | Includes 4 - 8.

515175271

Unavailable

5

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

6

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

7

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

8

Tubing 10 MM 1000MM Long

219704407

$2.20

9

SOLENOID LOCK - Call your local BRP dealership

415061600

$7.34

10

Screw K40 X 10

241140060

$1.25

11

STARTER JET - Call your local BRP dealership

404161825

Unavailable

12

Cap | Grand Touring 600. Grand Touring 700.

512058949

Unavailable

13

O-Ring | Grand Touring 600. Grand Touring 700.

512058950

Unavailable

14

PLUG - Call your local BRP dealership

515175303

$4.58

15

O-Ring | Grand Touring 600. Grand Touring 700.

512058925

Unavailable

16

Cap | Grand Touring 600. Grand Touring 700.

512058921

Unavailable

17

Cap | Grand Touring 600. Grand Touring 700.

512058982

Unavailable

18

Calibration Module

512059292

Unavailable

19

VELCRO LOOP - Call your local BRP dealership

512059338

$10.06

20

Était/Was 414843500 Velcro #8MVA PSA 1"

219704406

$12.72

21

VELCRO 1/2? - Call your local BRP dealership

415110900

$9.57

22

Air Intake Ass'y | Includes 22 - 30. Mach Z (Sport).

508000241

Unavailable

Air Intake Ass'y | Includes 22 - 30.

508000242

Unavailable

23

Intake Grill

517294400

Unavailable

24

Air Intake Adaptor

570069100

Unavailable

25

Inner Foam

415081200

Unavailable

26

LATCH - Call your local BRP dealership

570069700

Unavailable

27

Lower Foam

415081300

Unavailable

28

Air Filter

415081400

Unavailable

29

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

30

GROMMET - Call your local BRP dealership

570065500

$10.74

31

CLIP - Call your local BRP dealership

415115100

$3.92

32

RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership

293150034

Unavailable

33

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

34

Temperature Harness | Includes 34 - 41.

515175582

Unavailable

35

Female Terminal Housing (2 circuits)

515175256

Unavailable

36

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

37

Female Lock (2 circuits)

515175255

Unavailable

38

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

39

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

$12.28

40

Female Terminal

278000998

$3.48

41

Wire Seal

278000999

$2.55

42

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

43

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

44

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

45

PLUG - Call your local BRP dealership

515175303

$4.58

46

Male Terminal Housing, 6 Circuits

409015200

Unavailable

47

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

48

Male Lock, 6 Circuits

409014600

Unavailable

49

PLUG - Call your local BRP dealership

515175303

$4.58

50

SUPPORT - Call your local BRP dealership

512058919

$10.74

51

Polyurethane Hose 10000Mm Long

219704410

$46.12

52

Electrical Box Decal

516000245
