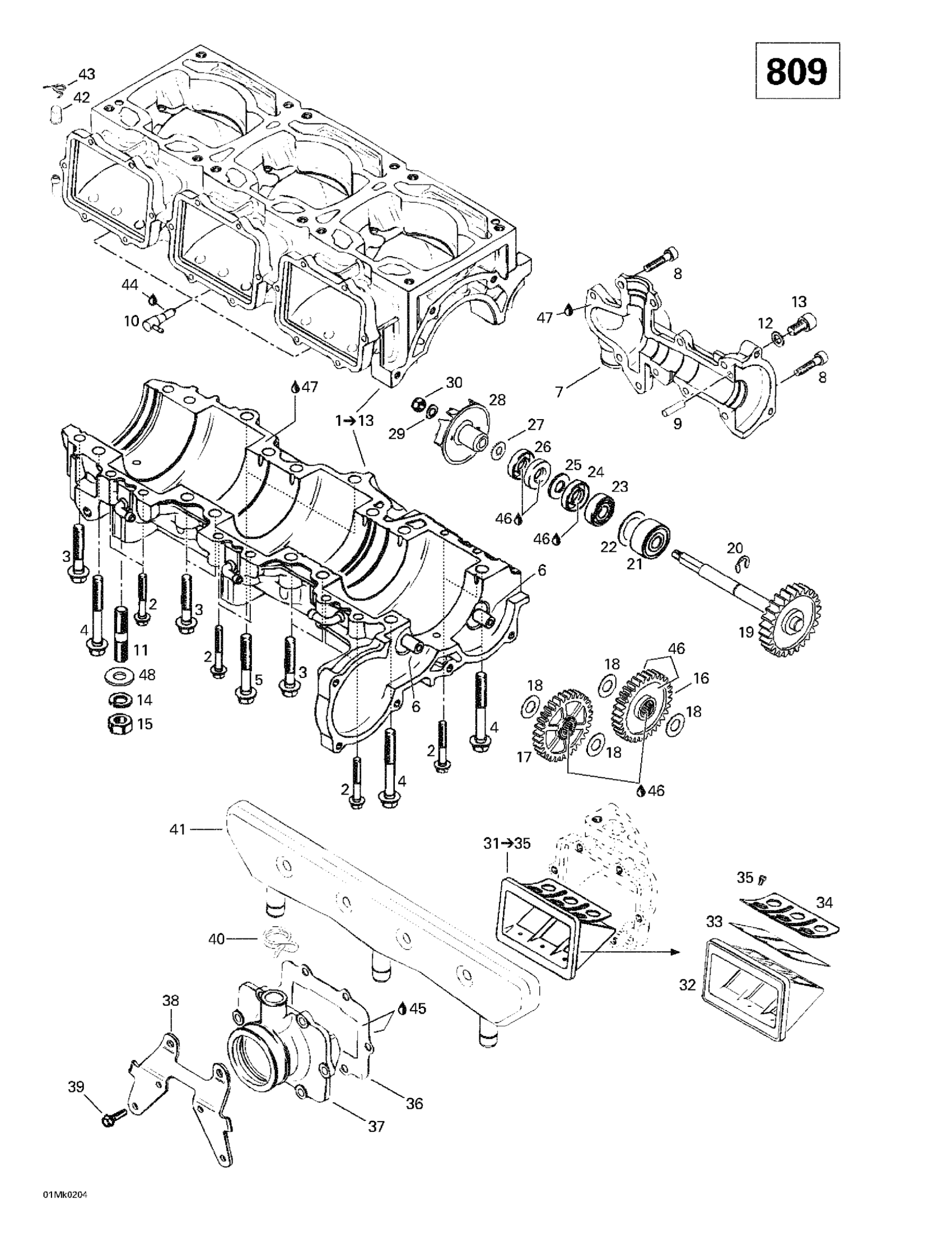

Ski-Doo Mach Z, 2002 Crankcase, Reed Valve, Water Pump Diagram

#

Description
Price

1

Crankcase Water Pump Cover Ass'y | Includes 1 - 13.

420888731

Unavailable

2

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

3

Hex. Collar Screw M8 x 45

420640432

$1.94

4

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$6.09

5

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

6

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420929935

$5.74

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Socket Head Screw M6 X 25

205062544

$0.88

9

Dowel Pin

420429230

Unavailable

10

Check Valve

420956511

$28.57

11

Stud M10 x 25

420940400

Unavailable

12

Sealing Ring

420950141

$1.64

13

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

14

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

15

Hex. Nut M10 X 1.5

232006414

$1.11

16

Sprocket (32 Teeth)

420834395

Unavailable

17

SPROCKET, 32 TEETH - Call your local BRP dealership

420834267

Unavailable

18

THRUST WASHER - Call your local BRP dealership

420927952

$5.34

19

Waterpump - Shaft/Gear Ass'y

420837431

Unavailable

20

RETAINING RING - Call your local BRP dealership

420845390

$1.51

21

Bearing_Ball - Call your local BRP dealership

420832490

Unavailable

22

SHIM 1 MM - Call your local BRP dealership

420944466

$3.05

23

Ball Bearing

420232100

$15.57

24

Oil Seal

420230195

$12.65

25

Flat Washer M10 This part replaces 420927410.

420927411

$2.06

26

OIL SEAL - Call your local BRP dealership

420950400

$13.86

27

Washer

420227155

Unavailable

28

Impeller Water

420922445

Unavailable

29

SPRING WASHER - Call your local BRP dealership

420845020

$0.83

30

Locking Nut M6

420842042

Unavailable

31

Reed Valve Ass'y

420924519

$50.74

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Reed Pedal

420924532

$43.82

34

Reed Pedal Stop

420924539

$11.52

35

Phillips Screw M3 X 5

420941215

$1.42

36

GASKET 1 MM - Call your local BRP dealership

420950292

Unavailable

37

INTAKE SOCKET - Call your local BRP dealership

420867848

Unavailable

38

CARRIER - Call your local BRP dealership

420851351

$19.20

39

Hex. Tapping Screw M5 X 20

420841555

$1.68

40

Clamp

420851360

Unavailable

41

Intake Resonator

420867797

Unavailable

42

Cap

420960770

$4.00

43

CLAMP - Call your local BRP dealership

420938190

$6.95

44

Sealant Loctite 648

219703000

$35.72

45

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

46

Dow Corning 111, 150 g

413707000

$57.82

47

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

48

Flat Washer 10 mm

234001410

$0.98
