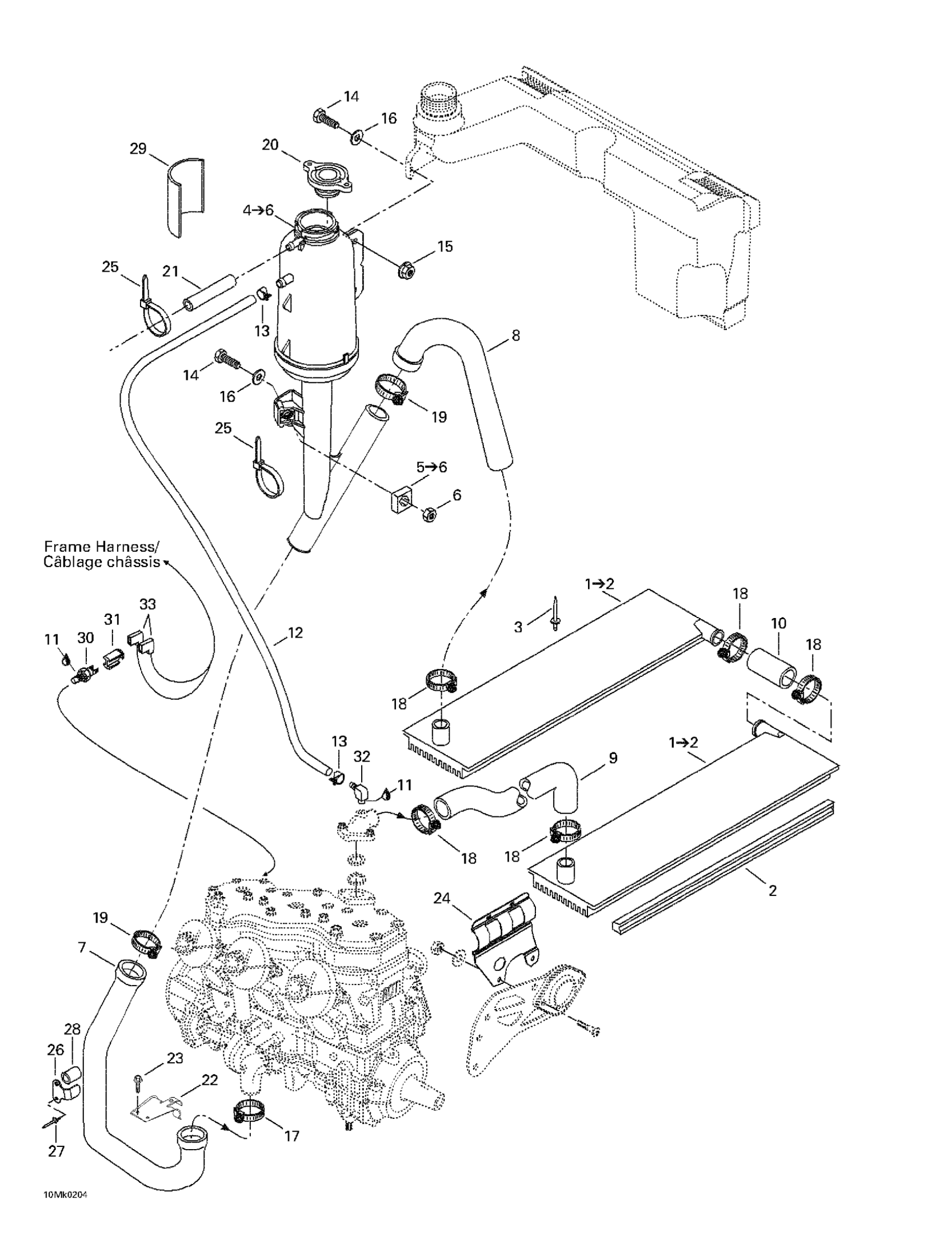

Ski-Doo Mach Z, 2002 Cooling System Diagram

#

Description
Price

1

RH Radiator | Includes 1 - 2.

518322348

Unavailable

LH Slide Bracket

518322350

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Coolant Tank Ass'y | Includes 4 - 6.

509000079

Unavailable

5

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

6

Hex. Nut M6

232061600

$1.04

7

Engine Inlet Hose

509000026

Unavailable

8

Radiator Outlet Hose

415047000

Unavailable

9

RADIATOR INLET HOSE - Call your local BRP dealership

415047100

Unavailable

10

Hose

509000129

Unavailable

11

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

12

Hose 8 mm

509000093

Unavailable

13

Spring Clamp

414655700

$0.66

14

Hex. Screw M6 X 25

207162544

$1.01

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

16

Flat Washer

224061121

$0.51

17

Norma Gear Clamp

293650098

$4.15

18

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

19

Oetiker Gear Clamp 36.1MM

509000045

$4.07

20

Pressure Cap

509000187

$26.84

21

Polyurethane Hose 10000Mm Long

219704410

$52.96

22

Hose Protector

509000037

Unavailable

23

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

24

HOSE PROTECTOR - Call your local BRP dealership

509000042

Unavailable

25

Tie-Rap 180 mm

414115200

$0.10

26

Bracket

509000101

Unavailable

27

Avex Rivet

390909100

$0.28

28

Protector

509000113

Unavailable

29

Reflective Sheet

514052952

Unavailable

30

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable

31

Connector Plug | Grand Touring 500.

515175297

Unavailable

32

Elbow Fitting 90°

293700020

Unavailable

33

Female Terminal

409010300

$4.00
