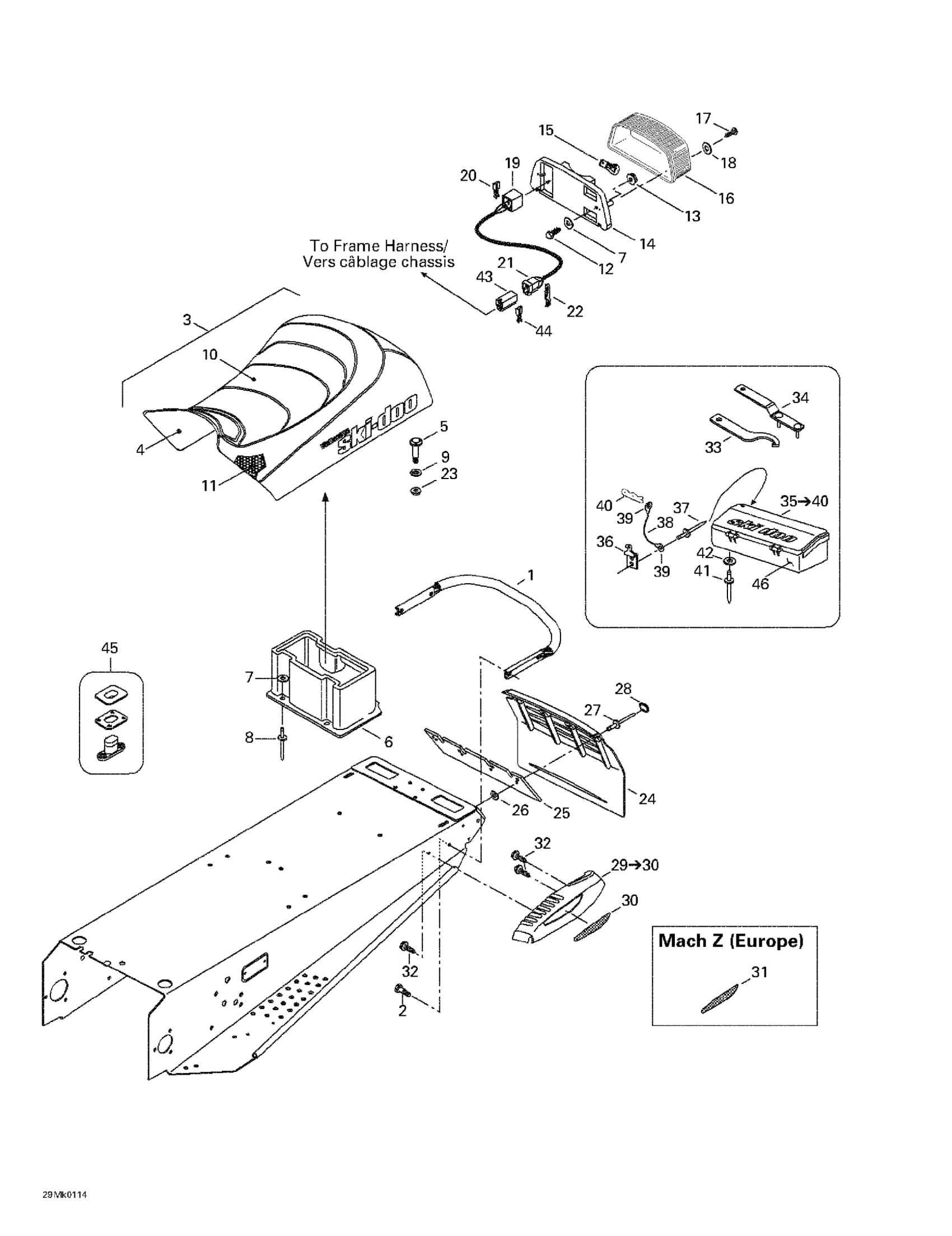

Ski-Doo Mach Z, 2001 09- Seat And Accessories Diagram

#

Description
Price

1

REAR BUMPER - Call your local BRP dealership

518322438

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Sub-Seat

572088200

Unavailable

5

«T» Bolt

732601221

Unavailable

6

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

7

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Push Nut

732610072

$2.19

10

Seat Cover

510003913

Unavailable

11

Foam Seat

415046302

Unavailable

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

15

Bulb

520000758

$9.10

16

Lens

414513700

$28.99

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

Washer - Call your local BRP dealership

414516400

Unavailable

19

Female Terminal Housing, 3 Circuits

515175250

Unavailable

20

Female Terminal

561503100

$2.41

21

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

22

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

SNOW GUARD - Call your local BRP dealership

572092100

Unavailable

Snow Guard

572103804

Unavailable

25

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

26

Flat Washer

517225900

$0.18

27

Pop Rivet 3/16"

293150100

$1.09

28

Cap

415073300

Unavailable

29

2000 Yellow, RH Molding kit (121") | OPT on LEG 550F/380F

861776900

Unavailable

2000 Yellow, LH Molding kit (121") | OPT on LEG 550F/380F

861777000

Unavailable

30

RH Reflector, Red

516000237

Unavailable

LH Reflector, Red

516000238

Unavailable

31

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

32

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

33

ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership

529034100

Unavailable

34

Adjustment Wrench | LT

520000126

$1.49

35

Tool Box Ass'y | Includes 35 - 40.

520000107

Unavailable

36

Latch

517168500

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Terminal Ring

561502800

Unavailable

40

HAIR PIN - Call your local BRP dealership

414112400

Unavailable

41

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

42

Washer

517124300

$0.19

43

Female Housing

409204300

Unavailable

44

Female Terminal

561503100

$2.41

45

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

46

Tool Kit (Not Shown) | Includes 44 - 55.

529035592

Unavailable

47

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

48

Socket Wrench 10/13 mm

529014900

$0.94

49

Wrench Socket (21/26 mm) (Not Shown)

529032800

Unavailable

50

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

51

Not Available As Spare Part - Friction Washer

Unavailable

52

MULTI-WRENCH - Call your local BRP dealership

529014700

Unavailable

53

Was 412500100 Rope-Starter

219704403

$158.99

54

Starter Grip

529000060

$14.15

55

Spacing Tool

529035501

$4.72

56

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable
