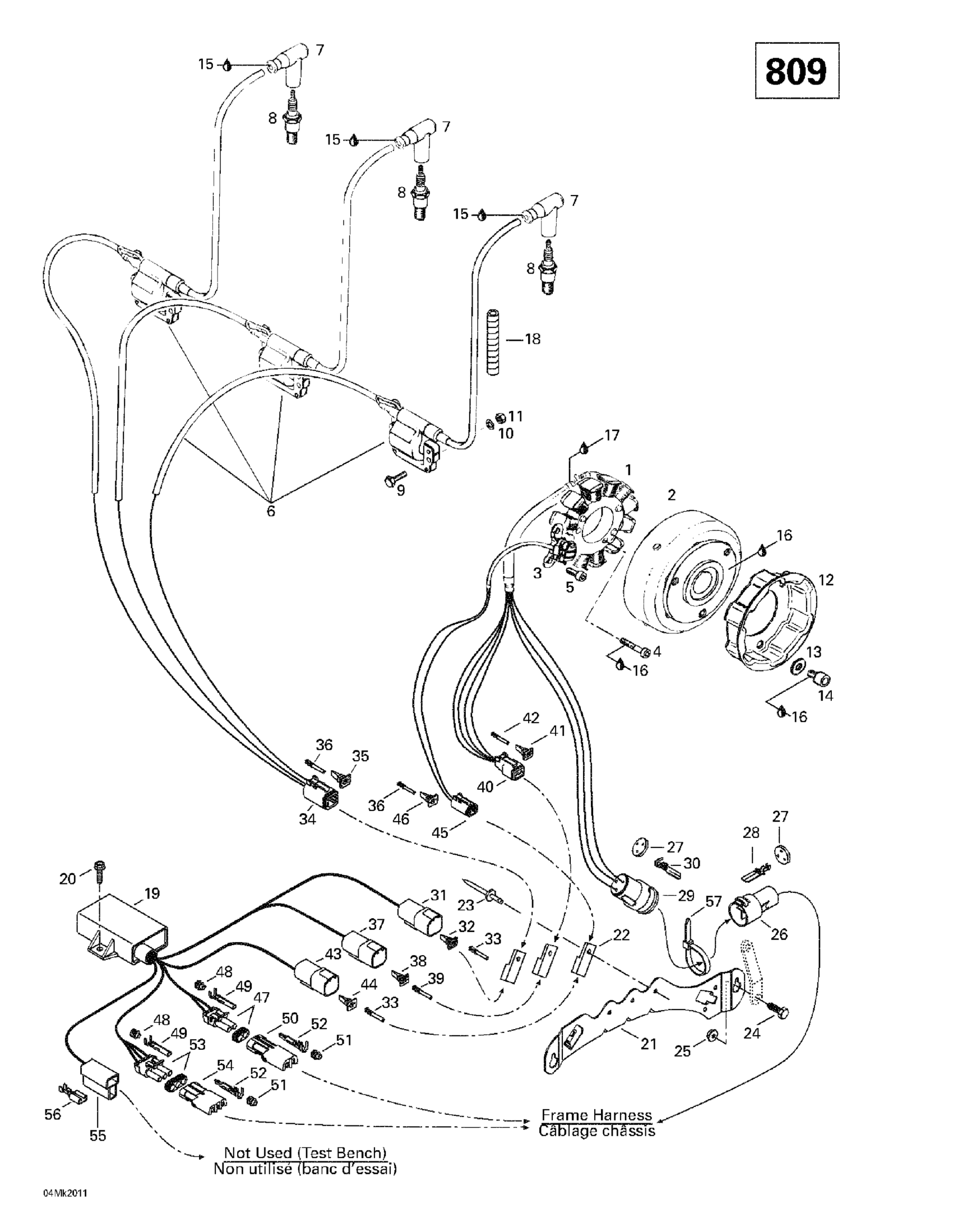

Ski-Doo Mach Z, 2000 Magneto (12V, 290W) Diagram

#

Description
Price

1

Stator Ass'y | Includes 1 - 7.

410922927

Unavailable

2

Magneto Flywheel | Mach Z (Sport).

410922928

Unavailable

3

Pick Up Ass'y | Includes 9 - 12. Mach Z (Sport).

410922929

Unavailable

4

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

5

Allen Screw M6 X 14

420840391

Unavailable

6

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

7

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

8

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

11

Hex. Nut M6

232061414

$0.44

12

Starting Pulley

420852418

Unavailable

13

Flat Washer

420827405

$1.66

14

Socket Head Screw M8 X 12

420841520

$1.68

15

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

16

Loctite 243, 10 ml

293800060

$20.77

17

Silicone Sealant 51388, 300 ml

296000309

Unavailable

18

Tubing 10 MM 1000MM Long

219704407

Unavailable

19

Calibration Module | Mach Z (Sport).

515175430

Unavailable

20

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

21

Housing Support

515175148

Unavailable

22

Clip

270000141

$8.33

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Hex. Screw M5 X 14

207151444

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

Unavailable

26

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

27

SEAL - Call your local BRP dealership

409208500

Unavailable

28

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

29

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

30

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

31

Male Terminal Housing, 6 Circuits

710001539

$15.57

32

Female Lock, 6 Circuits

278000735

$3.02

33

Male Terminal

278000631

$4.12

34

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

35

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

36

Female Terminal

278000632

Unavailable

37

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

38

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

39

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

40

Female Terminal Housing (4 circuits)

515175245

Unavailable

41

Female Lock (4 circuits)

515175246

Unavailable

42

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

43

Male Housing, 2 Circuits

409206900

Unavailable

44

Male Lock, 2 Circuits

409207500

$3.02

45

Female Connector, 2 Circuits

409207300

$9.60

46

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

47

Male Connector, 2 Circuits

278000220

$11.02

48

Wire Seal

278000218

Unavailable

49

Female Terminal

278000223

Unavailable

50

Female Housing, 2 Circuits

278000217

Unavailable

51

Seal

409208300

Unavailable

52

Male Terminal | XT Models

278000222

$2.55

53

Male Housing, 3 Circuits

278000273

Unavailable

54

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

55

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

56

Female Terminal

561503100

Unavailable

57

Tie-Rap 180 mm

414115200

$0.09
