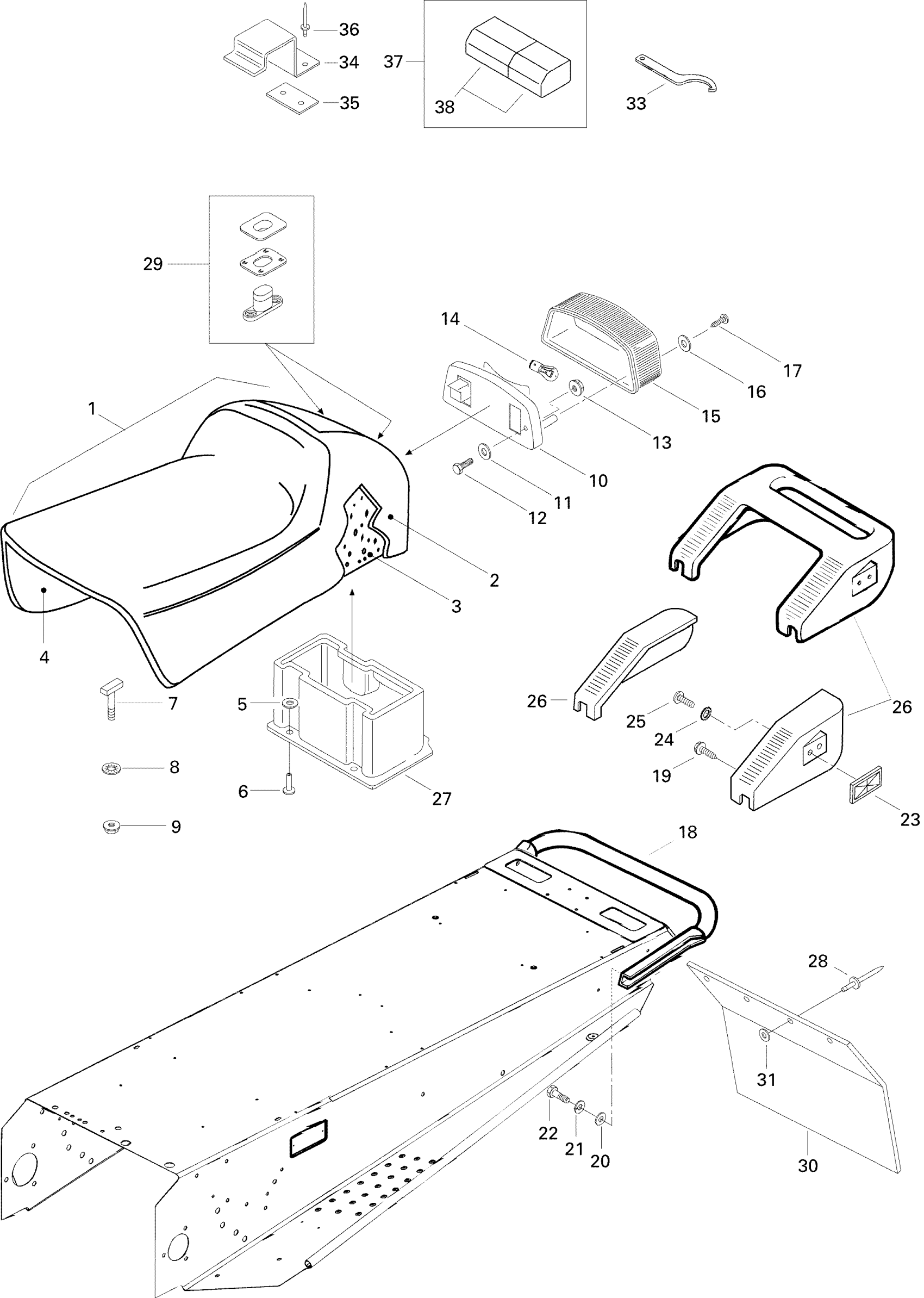

Ski-Doo Mach Z, 1996 09- Seat Mach Z Diagram

Not Available As Spare Part - Friction Washer

Unavailable

Seat Cover (1 pass.)

414971403

Unavailable

Foam Seat

414837100

Unavailable

Sub-Seat

572059600

Unavailable

Flat Washer

517225900

$0.18

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

«T» Bolt M6

732601126

Unavailable

Push Nut

732610072

$2.19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

Flat Washer

517225900

$0.18

Hex. Screw M5 X 30

207053044

$1.16

Hex. Flange Elastic Nut M5

233251414

$1.04

Bulb

520000758

$9.10

Lens

414513700

$28.99

Washer - Call your local BRP dealership

414516400

Unavailable

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

Rear Bumper

517243800

Unavailable

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

Flat Washer 8 mm

234081410

$0.83

Lock Washer 8 mm

234181401

$0.92

Hex. Screw M8 X 20

207182044

$0.74

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

Rear Moulding Ass’y (Incl. It. 23, 24, 2

580642400

Unavailable

Rear Trunk

572039802

Unavailable

Pop Rivet 3/16"

293150100

$1.09

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

Snow Gard (Red) | Formula 500.

572076501

Unavailable

Flat Washer

517225900

$0.18

Moulding

572029800

Unavailable

ADJUSTER WRENCH (REAR SUSPENSION) - Call your local BRP dealership

529019000

Unavailable

Retainer Plate

518301100

Unavailable

Reinforcement

518306000

Unavailable

Pop Rivet 3/16"

390402200

$0.35

Tool Kit

529027900

Unavailable

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable
