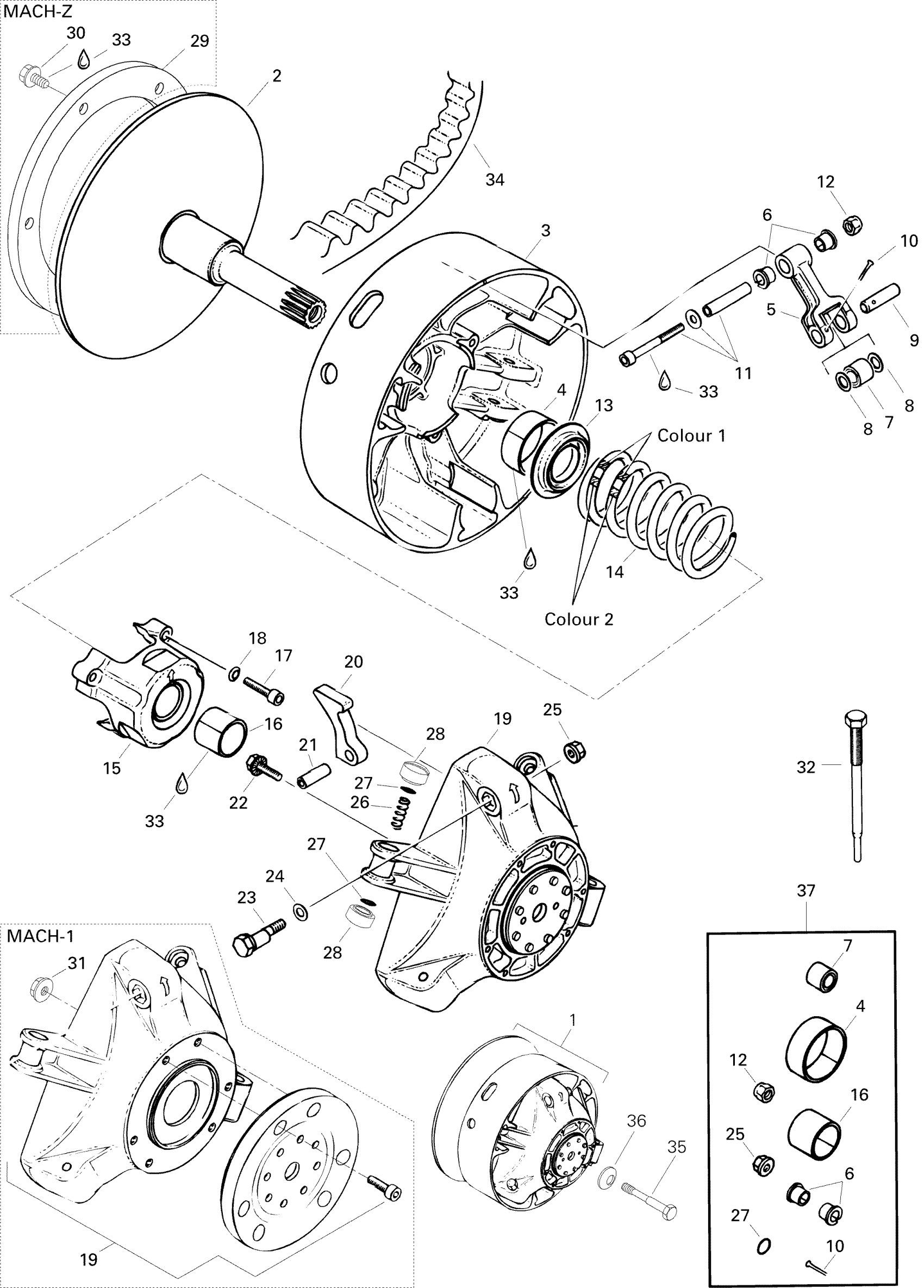

Ski-Doo Mach Z, 1996 05- Drive Pulley Mach Z Diagram

#

Description
Price

1

Drive Pulley Ass’y | Includes 1 to 30

417211200

Unavailable

2

Flasque Fixe Us*Flange-Fix.Mach This part replaces 420480415.

417222408

$439.99

3

OUTER HALF ASS?Y - Call your local BRP dealership | Includes 3 to 4

420480297

Unavailable

4

BUSHING OUTER HALF - Call your local BRP dealership

420433173

Unavailable

5

Lever Ass‘y | Includes 5 to 6

420448455

Unavailable

6

Bushing

417004305

$11.52

7

Roller

417222947

$21.99

8

Stopper Washer

417004302

$15.90

9

Pin

417004308

$13.99

10

Cotter Pin

250400060

$2.00

11

Fitting Screw

420440166

Unavailable

12

Elastic Stop Nut M6

232561414

$0.55

13

Spring Seat

420427392

Unavailable

14

Spring, Green/violet | 800R Power TEK

414762800

$39.99

15

Spring Cover Ass‘y | Includes 15 to 16

420412287

Unavailable

16

Bushing

417004501

$24.99

17

Socket Screw M6 X 40

205064086

Unavailable

18

WASHER - Call your local BRP dealership

420245370

Unavailable

19

Governor Cup

420480305

Unavailable

20

Ramp

420480286

Unavailable

21

Dowel Tube M8 x 24

420429150

Unavailable

22

Hex. Locking Screw M6 x 20

420440180

Unavailable

23

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

24

Washer | Skandic Super Wide Track.

420927941

Unavailable

25

Hex. Flange Nut M6

233061414

$1.68

26

Spring

417005700

$4.76

27

O-Ring

732401030

$0.98

28

Slider Shoe This part replaces 420460045.

417223021

$5.90

29

Shim protection

420475036

Unavailable

30

Taptite Screw M6 x 12

420240389

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

Puller This part replaces 529022400.

529000064

$71.99

33

Sealant Loctite 648

219703000

$45.99

34

Drive Belt | Formula Deluxe 700.

417300067

$134.99

35

Drive Pulley Bolt

417120000

$65.49

36

Spring Washer 14 mm

250200006

$6.99

37

Clutch Repair Kit

420483325

Unavailable
