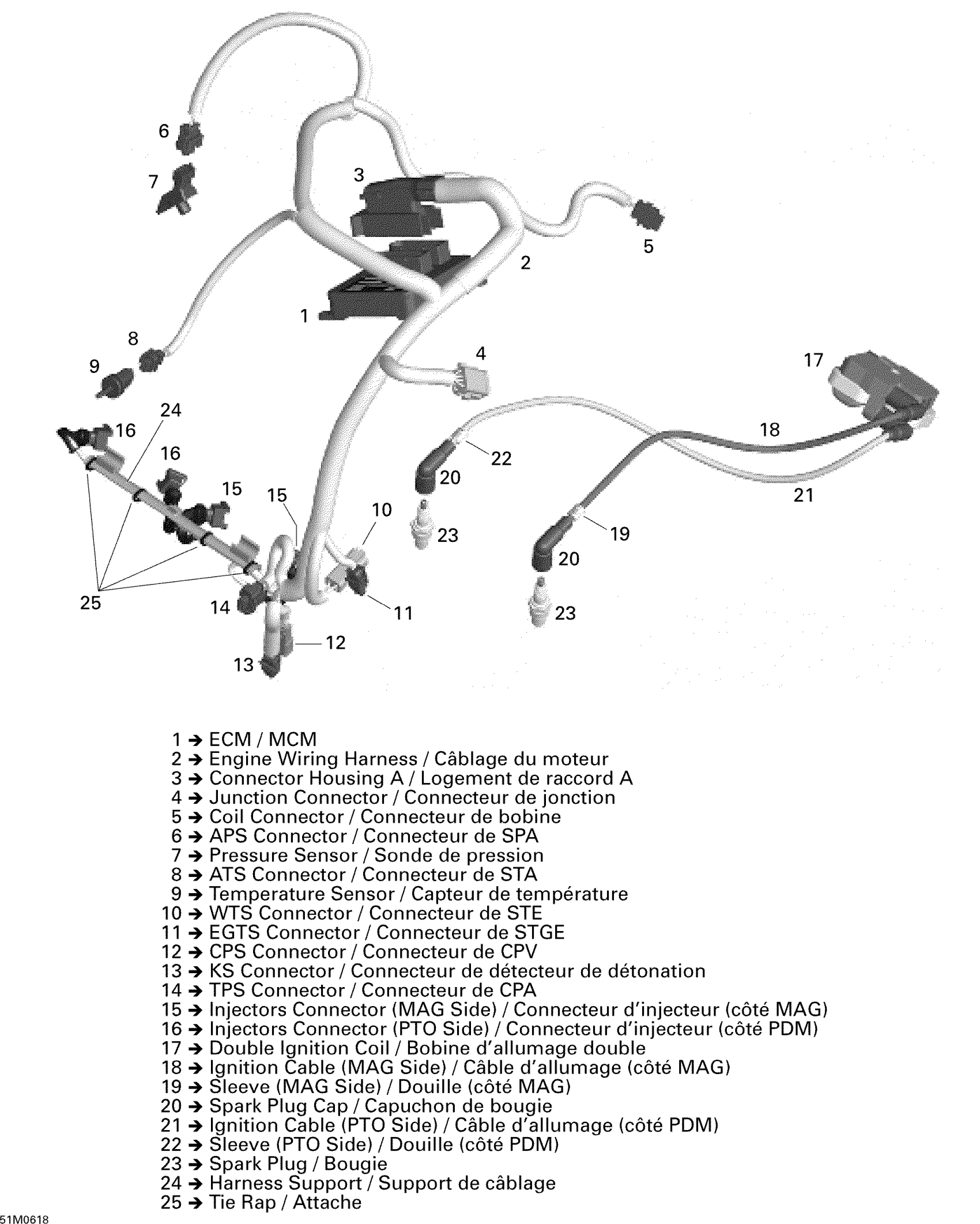

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 10- Engine Harness And Electronic Module Diagram

#

Description
Price

1

ECM, Engine Control Module

420664613

Unavailable

2

ENGINE WIRING HARNESS - Call your local BRP dealership

420664550

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Pressure Sensor

270600040

$199.99

8

Not Available As Spare Part - Friction Washer

Unavailable

9

TEMPERATURE SENSOR - Call your local BRP dealership

420966970

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Ignition Coil

278001546

$158.99

18

Ignition Cable, Mag Side

420665335

$74.99

19

SLEEVE, MAG SIDE - Call your local BRP dealership

420660632

Unavailable

20

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

21

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

22

SLEEVE, PTO SIDE - Call your local BRP dealership

420660630

Unavailable

23

Spark Plug NGK BR9ECS

415128524

$10.59

24

HARNESS SUPPORT - Call your local BRP dealership

420960880

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable
