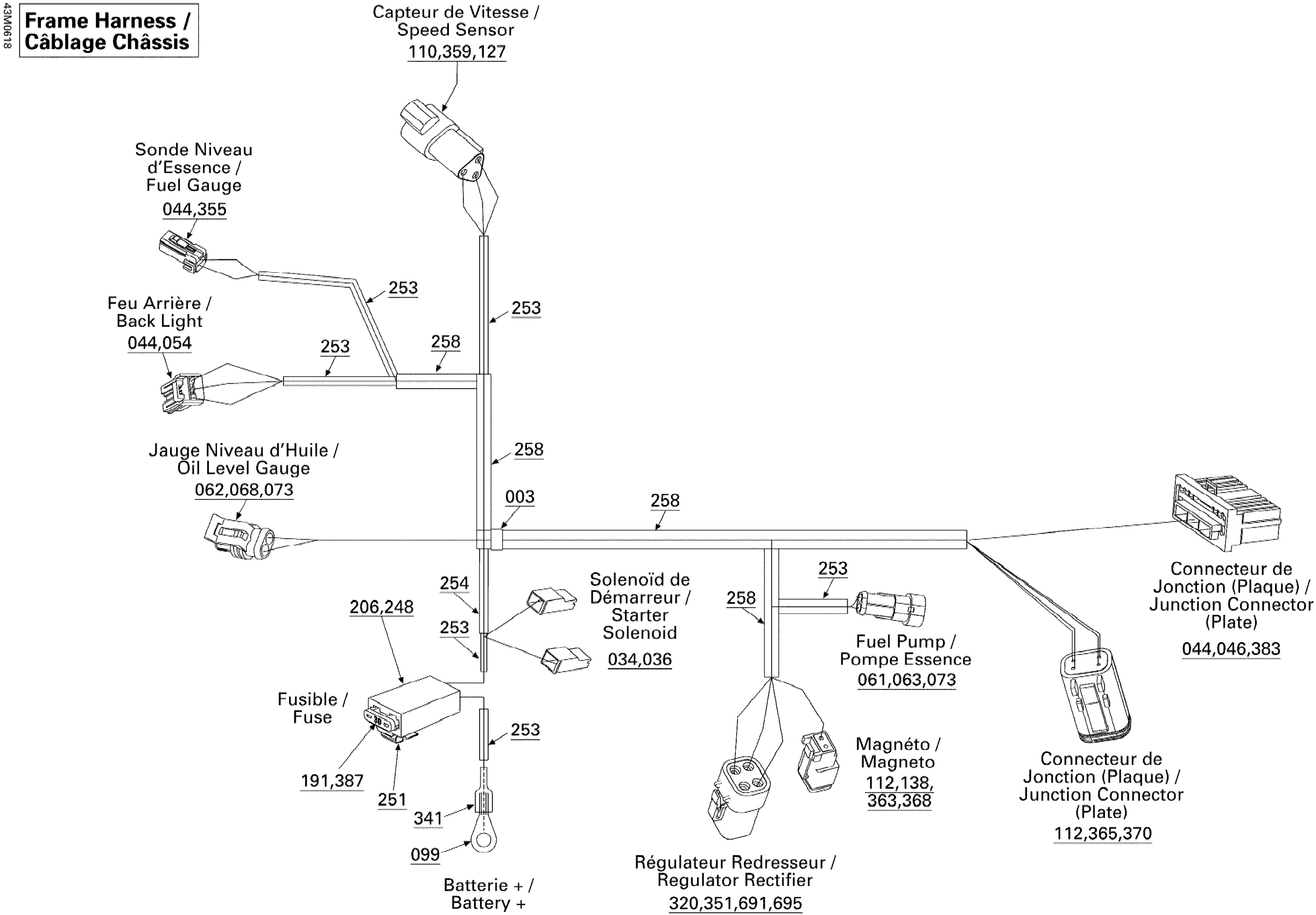

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 10- Electrical Harness Diagram

Frame Harness Ass'y | Includes 1 to 695

515176389

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Female Terminal

409010100

$5.61

Female Terminal Housing, 1 Circuit

409010400

$7.62

Female Terminal

515175231

$4.39

Female Terminal

515175282

$7.86

Female Housing, 3 Circuits

515175495

$16.18

Male Terminal | Europe Models

409012900

$3.28

Female Terminal

278001014

$3.28

Male Terminal Housing, 2 Circuits

409209400

$16.86

Female Housing, 2 Circuits

409209500

$15.27

Wire Seal

278001013

$3.28

Open Barrel

278000992

$2.21

Male Terminal

278000631

$4.39

Female Terminal

278000632

$2.09

Male Lock, 3 Circuits

409207600

$3.19

Sealing Cap

293000052

$3.19

Fuse, 30 Amperes

410917200

$3.28

Female Terminal

409004200

$4.55

Fuse Holder

409004000

$8.09

CLIP - Call your local BRP dealership

409014200

Unavailable

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Was 409901700 Tubing (9 mm)

219704399

$84.99

Tubing 10 MM 1000MM Long

219704407

$2.79

Female Terminal

515175567

$7.69

Not Available As Spare Part - Friction Washer

Unavailable

Female Lock, 4 Circuits

278001474

$3.49

Female Housing, 2 Circuits

515175658

$16.18

Male Housing

515175666

$15.49

Female Terminal Housing, 2 Circuits

515175670

$8.39

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

Female Lock, 2 Circuits

515175675

$4.55

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

278002027

Unavailable

KEYING PIN - Call your local BRP dealership

515176283

Unavailable
