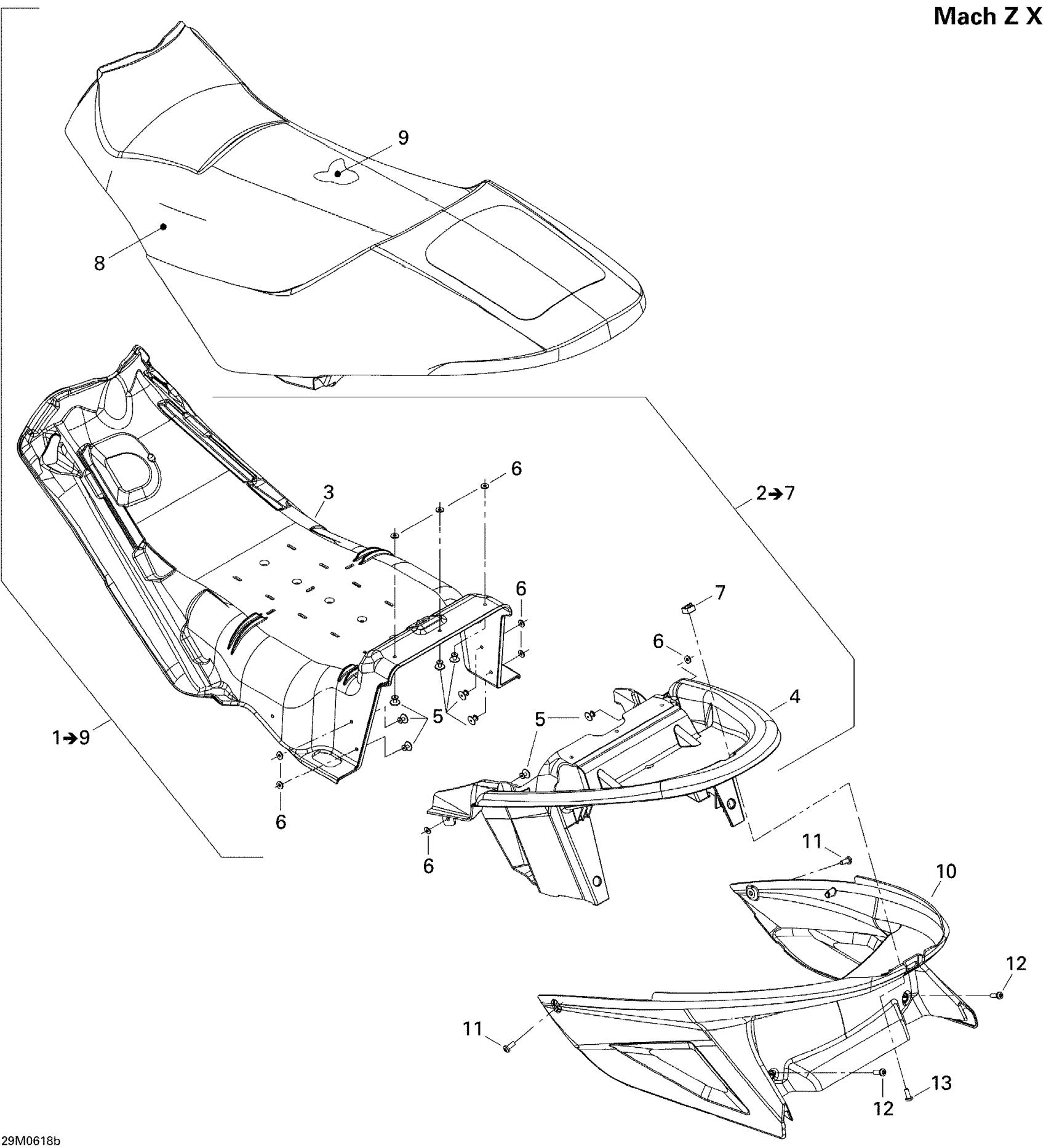

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 Seat X Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SEAT BASE ASS'Y - Call your local BRP dealership

510004582

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

6

Flat Washer

517225900

$0.16

7

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

8

SEAT COVER - Call your local BRP dealership

510004682

Unavailable

9

Seat Foam

510004216

Unavailable

10

Trunk, Slate Grey, B-242

510004683

Unavailable

11

Torx Truss Screw M6 X 16

250000721

$1.60

12

Torx Screw M6 X 20

250000722

$1.54

13

Torx Truss Screw M6 X 16

250000721

$1.60
