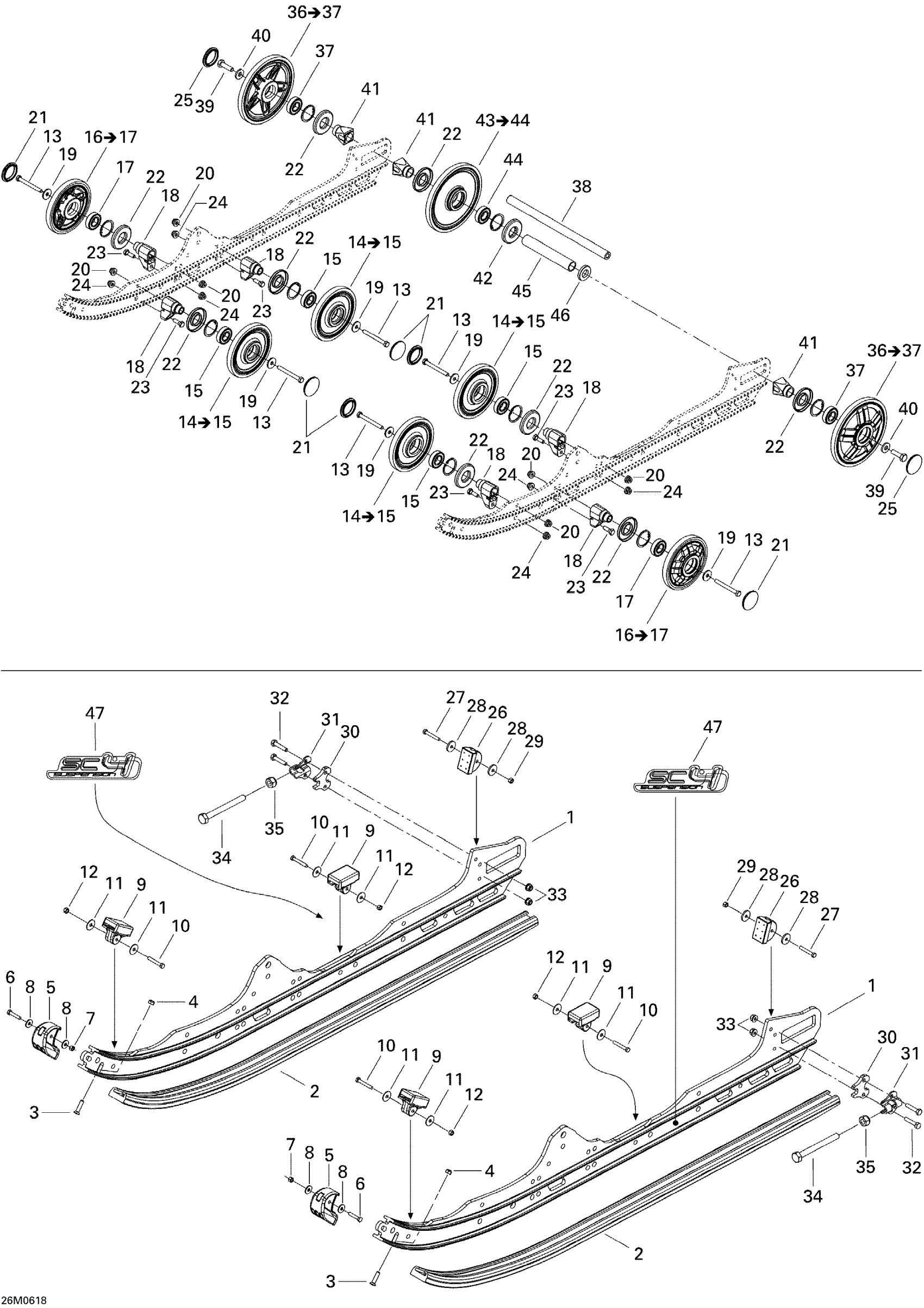

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 Rear Suspension Diagram

#

Description
Price

1

RUNNER 121 - Call your local BRP dealership

503191224

Unavailable

2

Slider Shoe

503190573

$26.84

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

Runner Protector

503191137

$9.90

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.82

8

Washer | DS 650 X

391301600

$0.46

9

Rubber Stopper

503190576

$9.93

10

Hex. Screw M5 X 30

207053044

$1.12

11

Washer

250200016

$0.70

12

Elastic Stop Nut M5

232551414

$0.82

13

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

14

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$35.04

15

Ball Bearing | Package-STD

503190396

$8.18

16

Wheel 141 With Pattern Ass'y, Yellow

503191312

$35.04

17

Ball Bearing | Package-STD

503190396

$8.18

16

Wheel 141 With Pattern Ass'y, Full Moon

503191313

$35.04

17

Ball Bearing | Package-STD

503190396

$8.18

18

Support

503190580

Unavailable

19

Washer

211200041

$3.01

20

Hex. Flange Elastic Nut M8

233281414

$1.31

21

Wheel Cap

570063600

$3.18

22

Labyrinth Seal

503190434

$4.16

23

Hex. Screw M8 X 25

207182544

$0.85

24

Hex. Flange Elastic Nut M8

233281414

$1.31

25

Wheel Cap

570063600

$3.18

26

Rubber Stopper

503191291

$17.88

27

Hex. Screw M5 X 30

207053044

$1.12

28

Washer

250200016

$0.70

29

Elastic Stop Nut M5

232551414

$0.82

30

Spacer

503193250

$13.54

31

Tensioner

503192583

$5.67

32

Hex. Screw M6 X 30

207063044

$1.12

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

34

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

35

Elastic Locking Nut M10 X 1.5

233601416

$1.63

36

Wheel 180 With Pattern Ass'y, Yellow | Includes 34 to 35

503190342

$48.48

37

Ball Bearing | Package-STD

503190396

$8.18

36

WHEEL 180, FULL MOON - Call your local BRP dealership | Includes 34 to 35

503190752

Unavailable

37

Ball Bearing | Package-STD

503190396

$8.18

38

Rear Axle

503190429

$58.18

39

Hex. Screw With Nylon

250000019

$1.63

40

Washer

503190439

$5.64

41

Rear Wheel Spacer

503190428

$5.88

42

Labyrinth Seal

503190682

$5.67

43

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$48.48

44

Ball Bearing | Package-STD

503190396

$8.18

45

Spacer

503196317

$14.90

46

Washer

503190432

$12.15

47

SC4 Decal

516002615

Unavailable
