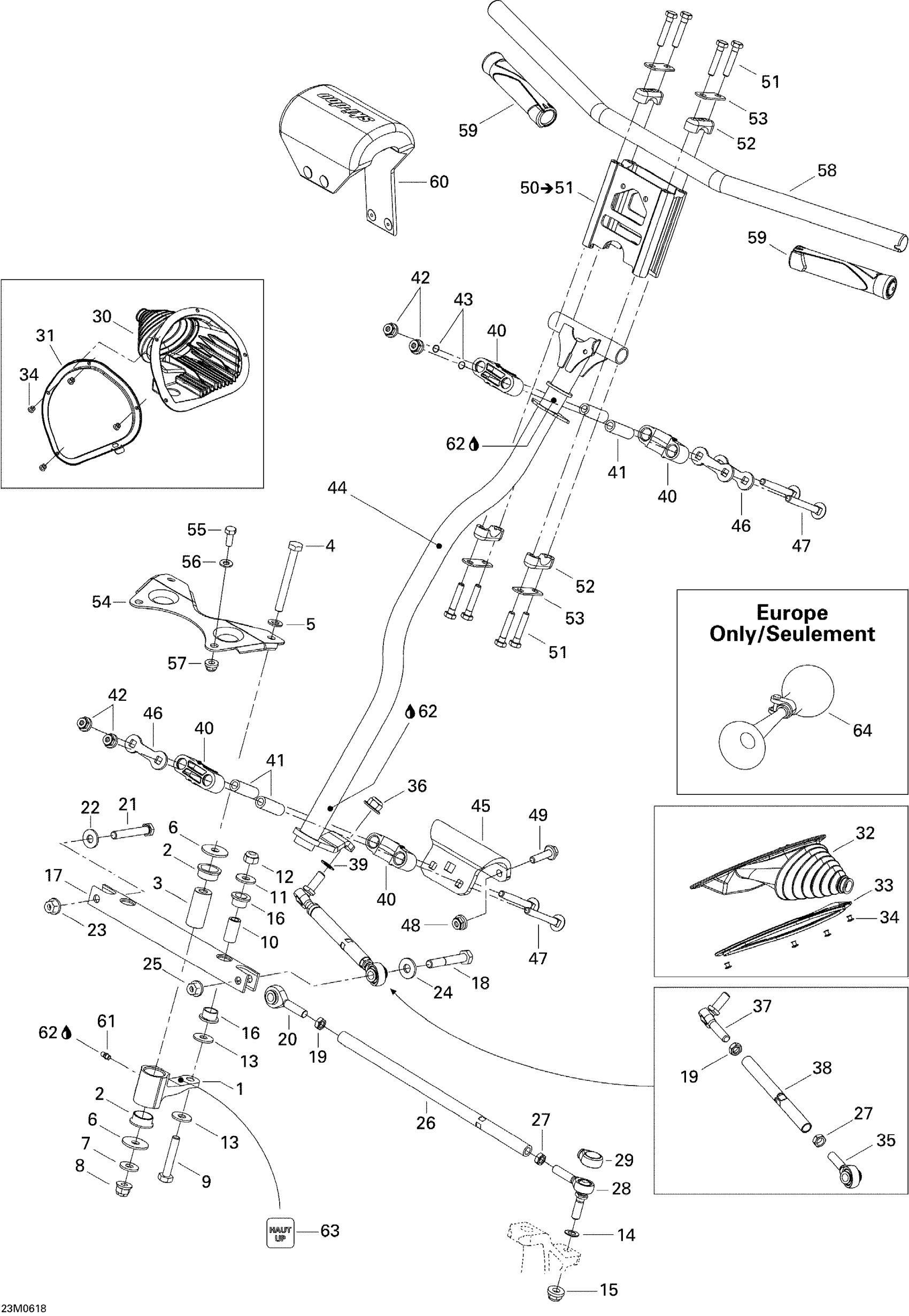

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 07- Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151627

Unavailable

1

LH Swivel Arm

506151628

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.28

6

Washer 10 mm

506150000

$2.74

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Flange Nut M10

732610084

$6.79

9

Hex. Screw M10 X 55

207005544

$2.22

10

Pivot Bar

506151273

$15.99

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.69

13

Washer

250200032

$5.08

14

Washer

503175800

$3.28

15

Hex. Flange Elastic Nut M10

250100165

$0.85

16

Swivel Bushing

503191555

$7.83

17

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

18

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

19

LH Threaded Hex. Jam Nut M10

250100016

$0.74

20

LH THREAD BALL JOINT - Call your local BRP dealership

506152018

Unavailable

21

Hex. Screw M10 X 45

207004544

$1.69

22

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

23

Hex. Flange Elastic Nut M10

233201414

$1.58

24

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

25

Hex. Flange Elastic Nut M10

233201414

$1.58

26

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

27

RH Threaded Hex. Jam Nut M10

732610010

$0.74

28

BALL JOINT - Call your local BRP dealership

506152212

Unavailable

29

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

30

RH Tie-Rod Cap

506151725

$43.99

31

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

32

LH Tie-Rod Cap

506151726

$43.99

33

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

34

Avex Rivet

390909100

$0.30

35

LH Thread Ball Joint

506152081

$41.49

36

Hex. Flange Elastic Nut M10

250100165

$0.85

37

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

38

TIE ROD - Call your local BRP dealership

506152006

Unavailable

39

Washer

503175800

$3.28

40

Housing Half

506150400

$7.62

41

Housing Bushing

506150500

$7.99

42

Hex. Flange Elastic Nut M8

233281414

$1.47

43

O-RING - Call your local BRP dealership

506151140

Unavailable

44

Main Tube

506151877

Unavailable

45

MAIN TUBE SUPPORT - Call your local BRP dealership

506151819

Unavailable

46

Stopper Plate

506150600

$4.39

47

Carriage Bolt M8 X 70

207787044

$1.37

48

Hex. Flange Elastic Nut M8

233281414

$1.47

49

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

50

Steering Extension Kit

860603700

Unavailable

51

Hex. Screw With Nylon M8 X 40

250000074

$1.90

52

Steering Support

709400919

$22.49

53

Stiffner

709400509

$4.69

54

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

55

Hex. Screw M8 X 25

207182544

$0.90

56

Flat Washer 8 mm

234081410

$0.83

57

Hex. Flange Elastic Nut M8

233281414

$1.47

58

HANDLE BAR - Call your local BRP dealership

506151782

Unavailable

59

Heated Handle Grip

506152211

$81.49

60

STEERING PAD - Call your local BRP dealership

506152522

$53.99

60

Steering Pad | X

506151960

Unavailable

61

Grease Fitting

408200700

$3.49

62

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

63

Upper Decal

516001750

Unavailable

64

Horn

549011291

$35.99
