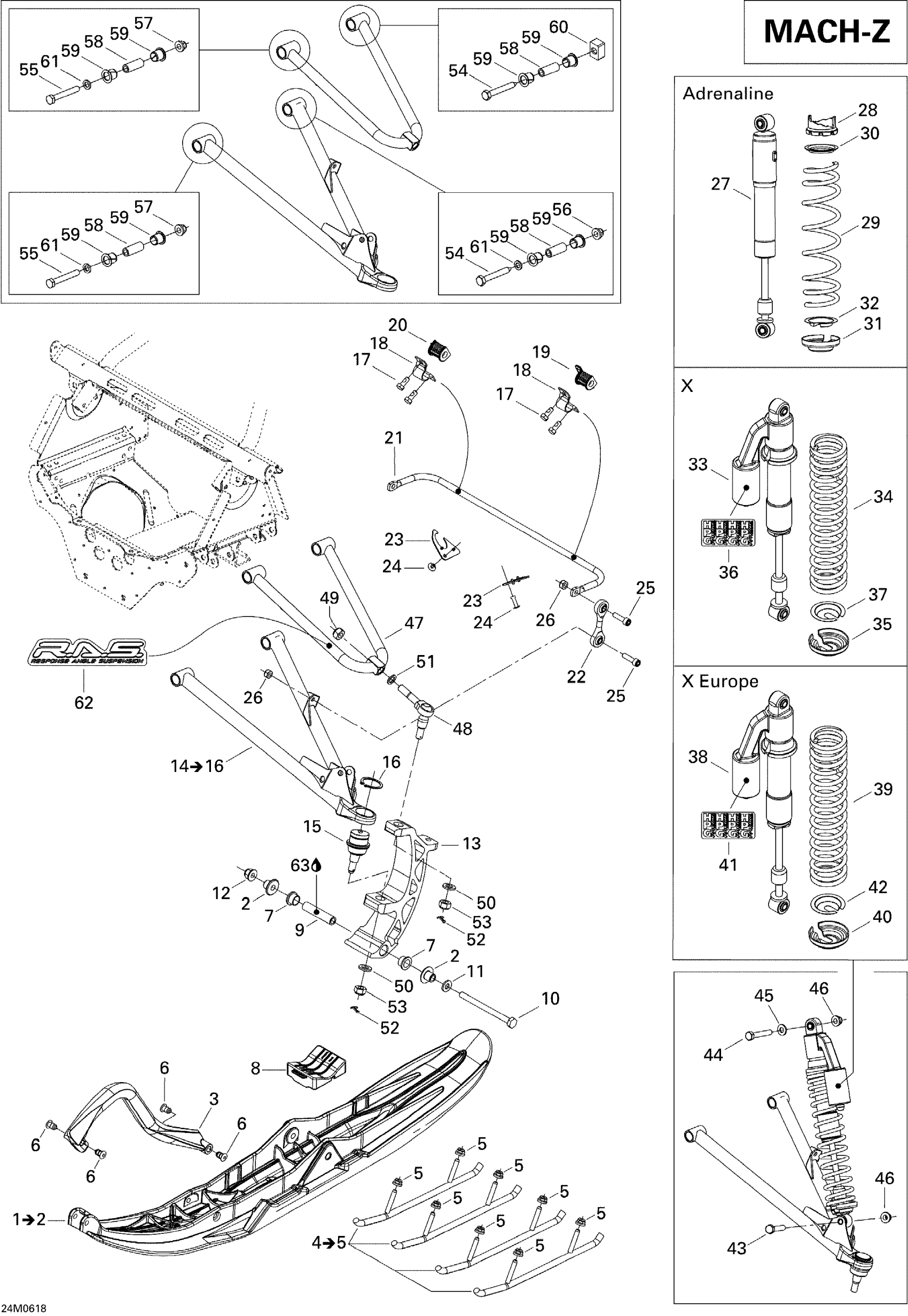

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

1

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

2

Ski Bushing

505071781

$14.90

3

Black, Handle

505070963

$34.30

3

Full Moon Handle

505071556

$33.55

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$130.57

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Retainer 17mm long

505071812

$4.30

7

Leg Bushing

505072690

$5.75

8

Ski Stopper

505071779

$15.64

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

11

Washer

732900049

$0.55

12

Flange Nut M10

732610084

$6.30

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512300

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512200

Unavailable

15

Ball Joint

505073636

$48.48

16

Circlip

293370035

$2.48

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

20

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

21

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

22

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.52

25

Socket Head Screw M8 X 30

205083044

$1.06

26

Hex. Elastic Stop Nut M8

232581414

$0.54

27

Front Shock

505071446

Unavailable

28

Adjustment Cam

505073625

$11.82

29

SPRING, RED-SILVER-RED - Call your local BRP dealership | REN

505071830

Unavailable

30

Spring Guide

503191872

$2.12

31

Spring Stopper

706200881

$11.82

32

Cap

706200785

$4.28

33

RH Front Shock | X

505071470

Unavailable

33

LH Front Shock | X

505071471

Unavailable

34

SPRING, GOLD-GOLD-BLUE - Call your local BRP dealership | X

505071850

Unavailable

35

Spring Stopper

706200881

$11.82

36

Shock Decal | X

516002748

Unavailable

37

Cap

706200785

$4.28

38

RH Front Shock | X Europe

505071949

Unavailable

38

LH Front Shock | X Europe

505071950

Unavailable

39

Spring, Red-gold-red | X Europe

505071953

Unavailable

40

Spring Stopper

706200881

$11.82

41

Shock Decal | X

516002748

Unavailable

42

Cap

706200785

$4.28

43

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

44

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

45

Washer

503189564

$0.70

46

Hex. Flange Elastic Nut M10

233201414

$1.45

47

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

48

Upper Ball Joint

505072257

$16.39

49

Hex. Flange Elastic Nut M12

250000047

$1.79

50

Flat Washer 12 mm

234021410

$0.66

51

Washer

503189276

$3.10

52

Cotter Pin

211400017

$0.28

53

Hex. Flange Elastic Nut M12

250000047

$1.79

54

Hex. Screw M10 X 75

250001063

$11.18

55

Hex. Screw M10 X 75

250001063

$11.18

56

Hex. Flange Elastic Nut M10

250100165

$0.81

57

Hex. Flange Elastic Nut M10

250100165

$0.81

58

Aluminium Bushing

505070960

$10.84

59

Arm Bushing

505070566

$3.04

60

RECTANGULAR NUT - Call your local BRP dealership

505071695

Unavailable

61

Washer

503189564

$0.70

62

R.a.s. Suspension Decal

516002747

Unavailable

63

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
