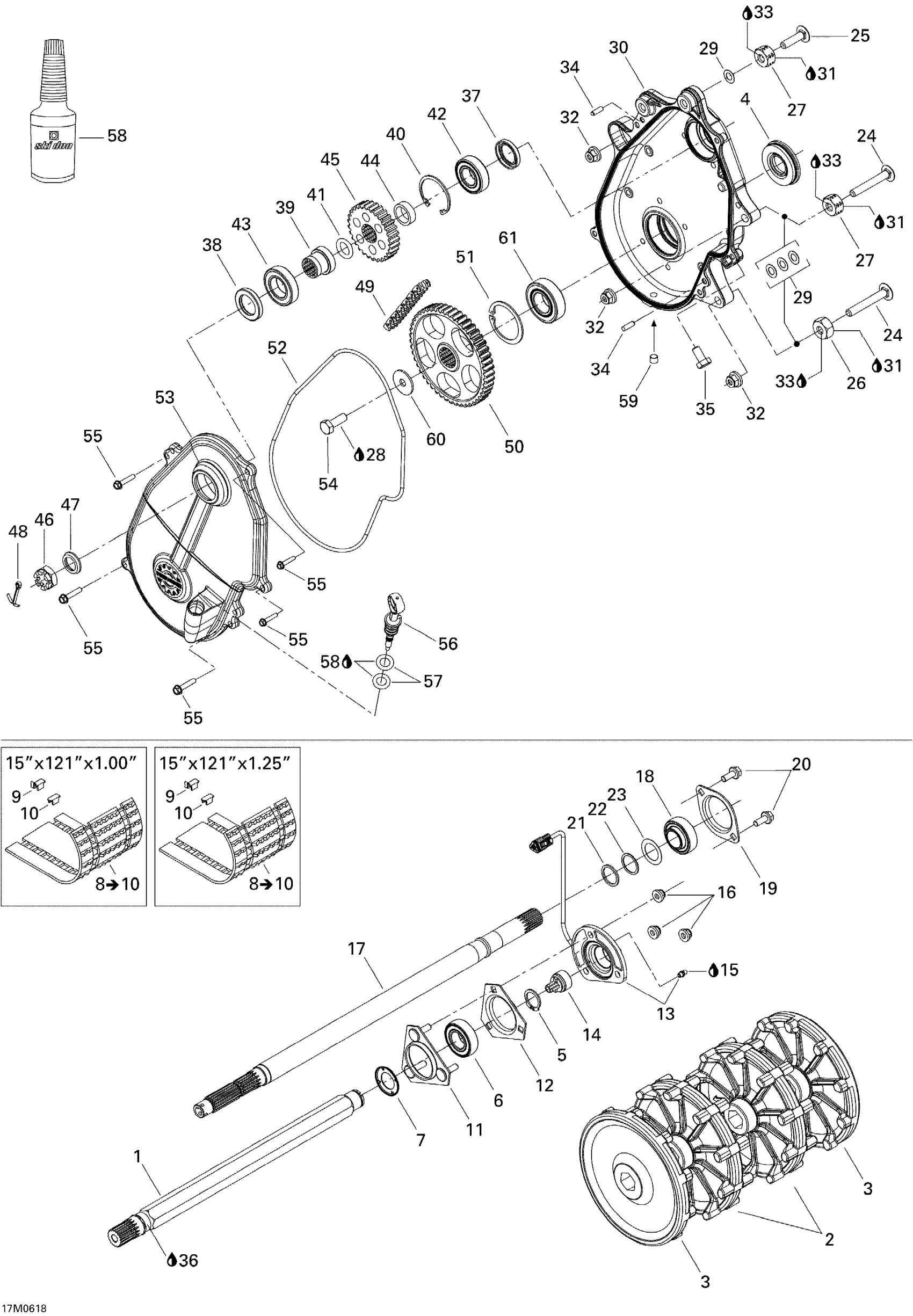

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 05- Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

504152424

Unavailable

2

SPROCKET, 10 TEETH - Call your local BRP dealership

504152198

Unavailable

3

HALF SPROCKET, 10 TEETH - Call your local BRP dealership

504152199

Unavailable

4

Oil Seal Ass'y

504151918

$20.49

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 15" X 121" X 1" Ass'y

504152446

Unavailable

8

Chenille 15X121 *Track 15X121X1.25 Rip S | Includes 8 to 10 This part replaces 504152558.

C9968H

$759.99

9

Track Guide | Track Width 16''

415129528

$3.29

10

Cleat

504152651

$9.69

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

FLANGE - Call your local BRP dealership

501025000

Unavailable

13

SENSOR - Call your local BRP dealership

504152409

Unavailable

14

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

15

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Counter Shaft

504152432

Unavailable

18

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

19

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

20

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

21

Spacer

417300252

$5.49

22

Spacer

417300265

$2.29

23

Shim

504112000

$8.59

24

CARRIAGE BOLT M10 - Call your local BRP dealership

250000164

Unavailable

25

CARRIAGE BOLT M10 - Call your local BRP dealership

250000165

Unavailable

26

Spacer

504083800

Unavailable

27

SPACER - Call your local BRP dealership

504152524

Unavailable

28

Loctite 271, 10 ml

293800005

$26.99

29

WASHER - Call your local BRP dealership

504073700

Unavailable

30

CHAIN CASE - Call your local BRP dealership

504152308

Unavailable

31

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

32

Hex. Flange Elastic Nut M10

233201414

$1.58

32

Hex. Flange Elastic Nut M10

233201414

$1.58

33

Loctite 243, 10 ml

293800060

$21.49

34

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

Unavailable

35

Hex. Screw M10 X 20, Scotch Grip

207302044

Unavailable

36

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable

37

OIL SEAL - Call your local BRP dealership

504152544

Unavailable

38

OIL SEAL - Call your local BRP dealership

504152545

Unavailable

39

SPACER - Call your local BRP dealership

504152400

Unavailable

40

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

41

O-RING - Call your local BRP dealership

293300109

Unavailable

42

Ball Bearing

293350115

$12.11

43

Ball Bearing

504152418

$23.99

44

SHIM - Call your local BRP dealership

504152398

Unavailable

45

SPROCKET, 29 TEETH - Call your local BRP dealership

504152442

Unavailable

46

HEX. CASTLE NUT 20 X 1.5 - Call your local BRP dealership

250100079

Unavailable

47

Cap

504152523

Unavailable

48

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

49

CHAIN, 82 LINKS - Call your local BRP dealership

504152415

Unavailable

50

SPROCKET, 49 TEETH - Call your local BRP dealership

504152412

Unavailable

51

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

52

O-RING - Call your local BRP dealership

504152299

Unavailable

53

COVER - Call your local BRP dealership

504152416

Unavailable

54

Hex. Screw M10 X 30

207103044

$1.48

55

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

56

FILLER CAP ASSY. - Call your local BRP dealership

504152322

Unavailable

57

O-RING - Call your local BRP dealership

414969400

Unavailable

58

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

59

Plug 1/8”-27

504151921

$4.19

60

Washer 10 mm

506150000

$2.74

61

Ball Bearing

504152005

$46.49
