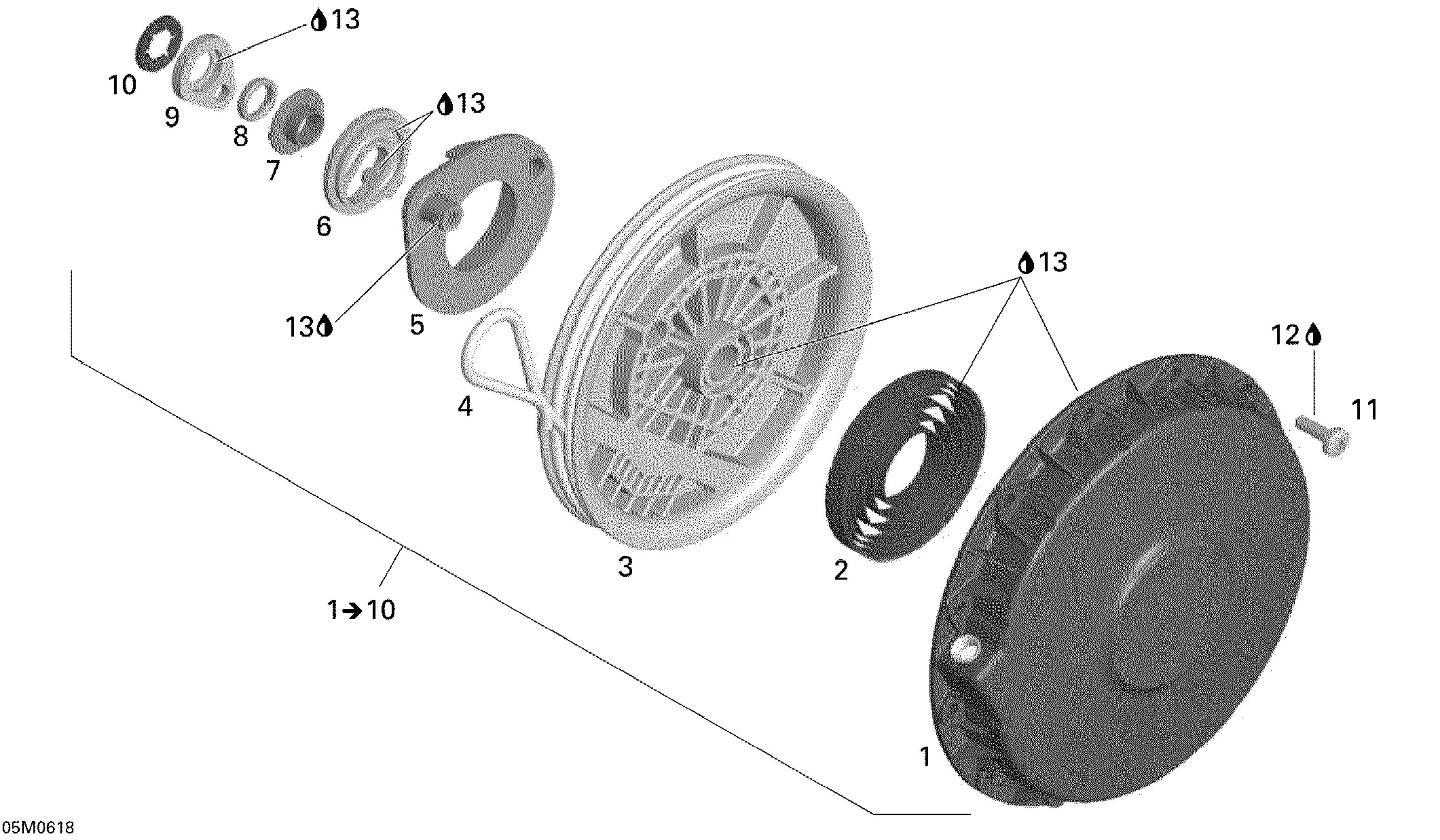

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 04- Rewind Starter Diagram

#

Description

Price

1

REWING STARTER ASS'Y - Call your local BRP dealership | Includes 1 to 10

420889767

Unavailable

1

Starter Housing

420910256

$94.99

2

Rewind Spring

420939115

$30.49

3

Rope Sheave

420852288

$41.49

4

Was 412500100 Rope-Starter

219704403

$158.99

5

Pawl

420852610

$30.99

6

PAWL LOCK - Call your local BRP dealership

420852304

Unavailable

7

Stage Sleeve

420847926

$16.33

8

O-Ring

420250407

$1.90

9

Lock Ring

420852520

$9.27

10

Locking Element

420845560

$2.11

11

Torx Flange Screw M6 X 20

420441386

$2.11

12

Loctite 243, 10 ml

293800060

$21.49

13

Molykote PG 54, 10 g

420899763

$21.99
