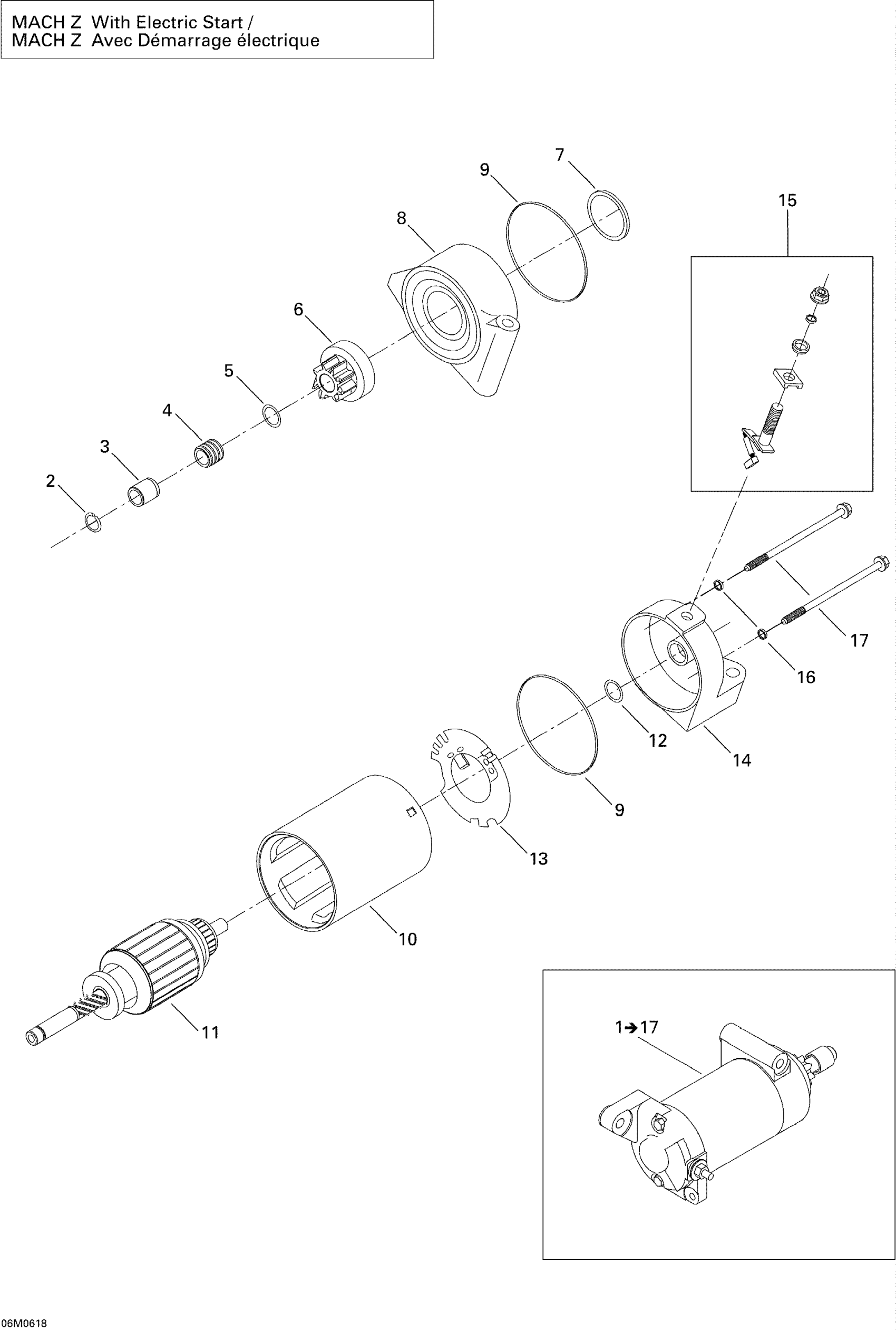

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 04- Electric Starter Diagram

#

Description
Price

1

Electric Starter Ass'y

515176133

$319.49

2

SNAP RING - Call your local BRP dealership

410207700

Unavailable

3

CLUTCH KIT - Call your local BRP dealership

415129334

$109.99

4

CLUTCH KIT - Call your local BRP dealership

415129334

$109.99

5

WASHER PLATE - Call your local BRP dealership

278001105

Unavailable

6

Ens.Embrayage*Kit-Clutch This part replaces 515175928.

415129338

$119.99

7

O-Ring Kit This part replaces 278000696.

415129342

$14.24

8

Housing

410922959

Unavailable

9

O-Ring

278000695

$14.24

10

Starter Housing

410922976

Unavailable

11

Armature Ass’y

410922977

Unavailable

12

FLAT WASHER - Call your local BRP dealership

410204500

Unavailable

13

Brush Kit

415129333

$62.99

14

Housing

410922979

Unavailable

15

Brush Kit

410212100

$33.99

16

O-RING - Call your local BRP dealership

278000060

Unavailable

17

Bolt

410922980

Unavailable
