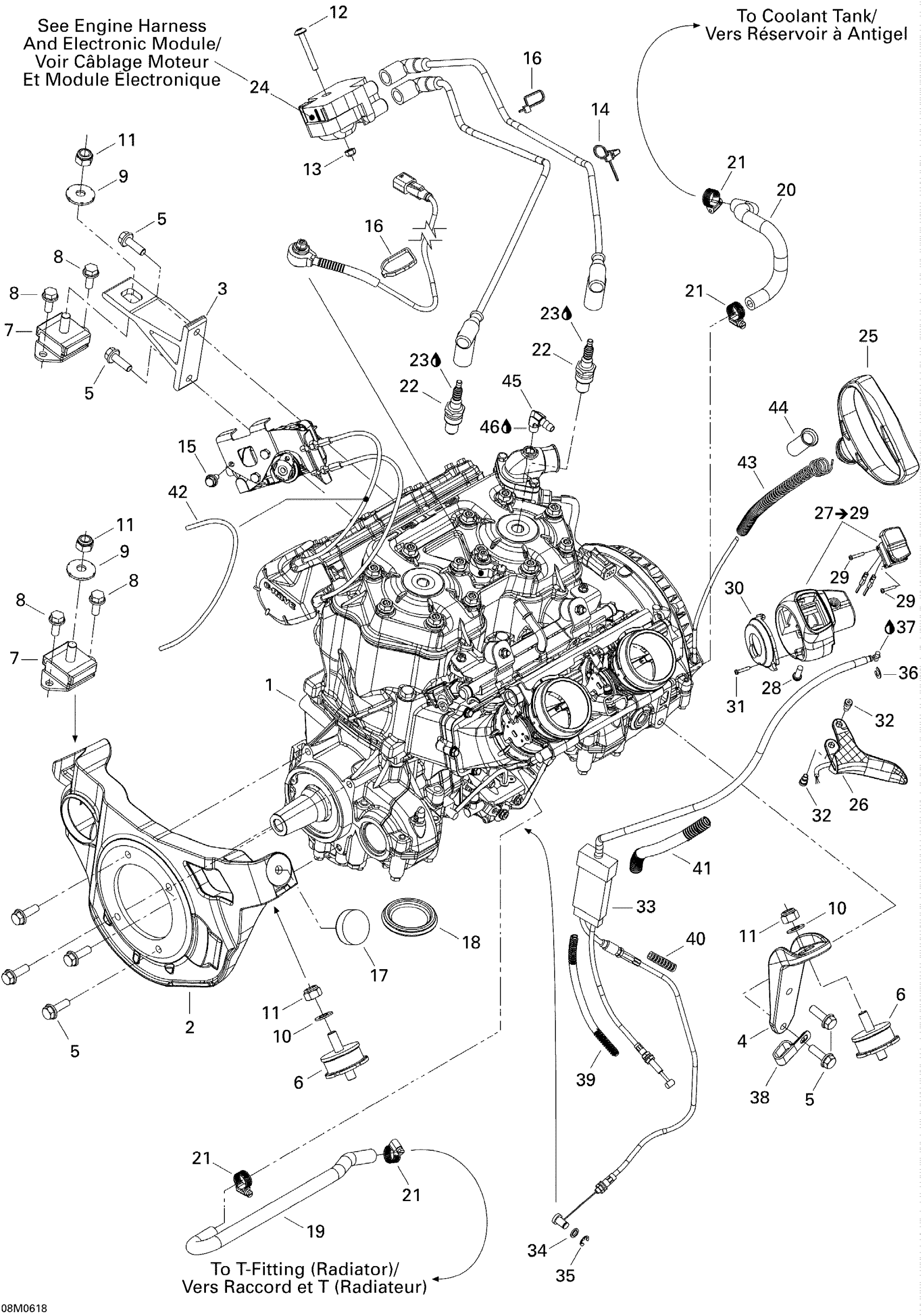

Ski-Doo Mach Z 1000 SDI Adrenaline & X, 2006 Engine Diagram

#

Description
Price

1

Engine 995 SDI

400101118

Unavailable

2

ENGINE SUPPORT, PTO - Call your local BRP dealership

512059792

Unavailable

3

FRONT ENGINE SUPPORT, MAG - Call your local BRP dealership

512059894

Unavailable

4

REAR ENGINE SUPPORT, MAG - Call your local BRP dealership

512059794

Unavailable

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

6

RUBBER MOUNT - Call your local BRP dealership

512059960

Unavailable

7

Rubber Mount

512060564

$38.78

8

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

9

Lock Washer

512056700

$3.01

10

Flat Washer 10 mm

234001410

$1.12

11

Elastic Stop Nut M10

232500416

$1.79

12

Torx Screw M6 X 45

250000215

$1.79

13

Elastic Stop Nut M6

232561414

$1.78

14

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

15

Hex. Flange Screw M6 X 12

207661244

$1.96

16

Tie-Rap 180 mm

414115200

$0.10

17

Stopper

512060000

Unavailable

18

BOTTOM PAN CAP - Call your local BRP dealership

570045101

Unavailable

19

FORMED HOSE, INLET THROTTLE BODY - Call your local BRP dealership

512060012

Unavailable

20

FORMED HOSE, OUTLET THROTTLE BODY - Call your local BRP dealership

512059935

Unavailable

21

Tridon Gear Clamp

293650170

$2.00

22

Spark Plug NGK BR8ECS

512060029

$11.13

23

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

24

Ignition Coil

278001546

$148.48

25

Starter Grip

572084400

$14.10

26

Throttle Handle Ass'y | Includes 13 to 14

512060484

$114.90

27

Housing Throttle Ass'y | Includes 25 to 27

512060121

$36.54

28

Socket Head Screw M6 X 16

250000036

Unavailable

29

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

30

COVER - Call your local BRP dealership

512059698

Unavailable

31

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

32

Flange Screw

732601143

$3.90

33

Throttle Cable

512060164

Unavailable

34

Flat Washer 8 mm, Nylon

234081100

$1.15

35

Circlip

414753500

$0.67

36

Circlip

414274500

$0.85

37

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

38

OPEN CLAMP - Call your local BRP dealership

515175980

Unavailable

39

Tubing 6 Mm 3000Mm Long

219704425

$12.75

40

Tubing 6 Mm 3000Mm Long

219704425

$12.75

41

Was 409901700 Tubing (9 mm)

219704399

$77.58

42

Tubing 6 Mm 3000Mm Long

219704425

$12.75

43

ROPE GUIDE - Call your local BRP dealership

512059964

Unavailable

44

TUBE - Call your local BRP dealership

512059536

Unavailable

45

ELBOW FITTING 90 - Call your local BRP dealership

293700045

Unavailable

46

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
