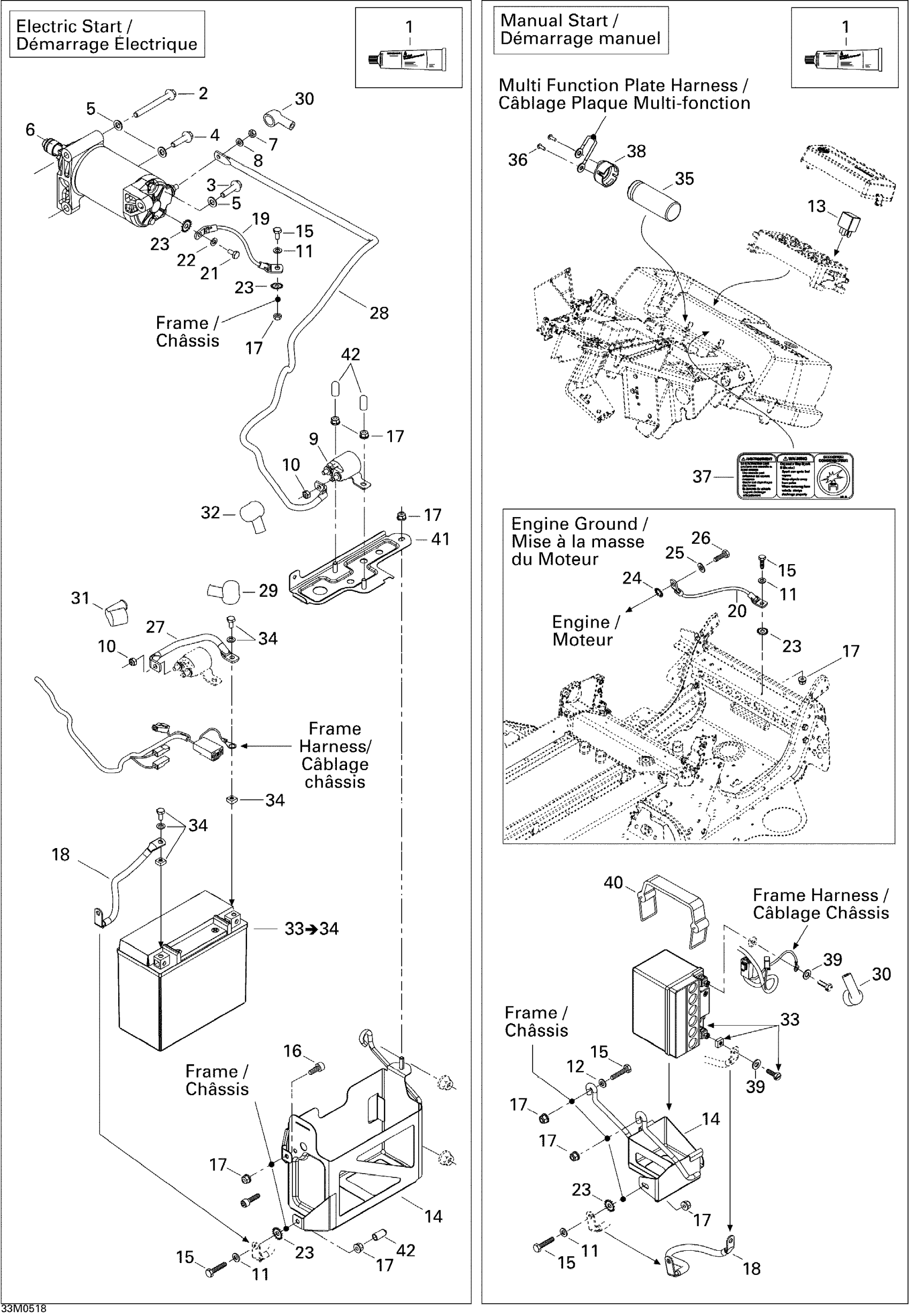

Ski-Doo Mach Z 1000 SDI, 2005 10- Electrical System Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$8.29

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

5

Flat Washer With Teflon 8 mm

250200008

$3.80

6

Electric Starter Ass'y

515176133

$319.49

7

Elastic Stop Nut M6

232561414

$0.55

8

Flat Washer 6 mm

234061410

$1.36

9

Starter Relay

515176011

$62.49

10

Elastic Stop Nut M6

232561414

$0.55

11

Flat Washer 6 mm

234061410

$1.36

12

Flat Washer

224061121

$0.53

13

Relais *Relay This part replaces 410113604.

515177672

$46.49

14

BATTERY SUPPORT - Call your local BRP dealership | Electric Start

515176048

Unavailable

14

Battery Support | Manual Start

515176142

Unavailable

15

Hex. Screw M6 X 25

207162544

$1.15

15

Hex. Screw M6 X 25

207162544

$1.15

16

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

GROUND WIRE - Call your local BRP dealership

515176172

Unavailable

19

GROUND WIRE - Call your local BRP dealership | Electric Start

515176277

Unavailable

20

BATTERY ASSISTED GROUND CABLE - Call your local BRP dealership | Manual Start

515176276

Unavailable

21

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

22

Flat Washer 6 mm

234061410

$1.36

23

Lock Washer Serrated M6

250200041

$1.15

23

Lock Washer Serrated M6

250200041

$1.15

24

Serrated Lock Washer 8 mm

234481608

$1.15

25

Flat Washer 8 mm

234081410

$0.83

26

Hex. Screw M8 x 16

207181644

$1.15

27

Battery Wire

515175904

$19.99

28

BATTERY WIRE - Call your local BRP dealership | Electric Start

515176259

Unavailable

29

Protection Cap

570151000

$21.99

30

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

31

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

32

Protector Cap | XT

515175919

$17.99

33

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

33

Battery 12 Volt 4 Ah

415130961

Unavailable

34

Battery Bolt Kit

250000282

$7.29

35

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

36

Mechanical Screw | Manual Start

515176257

Unavailable

37

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

38

CAP - Call your local BRP dealership

515176211

Unavailable

39

Flat Washer M5

234051410

$0.53

40

Battery Strap

515176044

$18.49

41

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

42

Cap

515176141

$3.09
