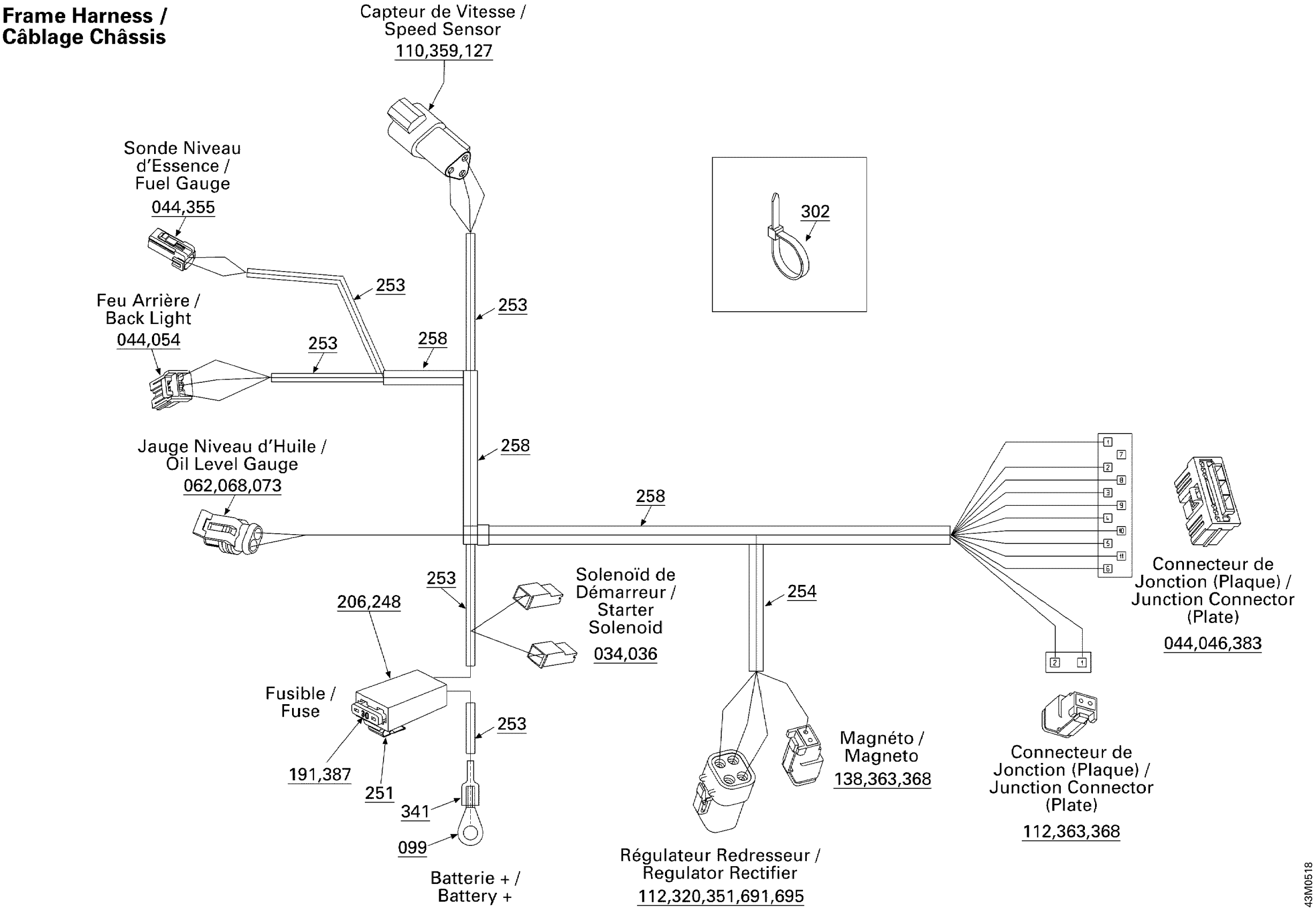

Ski-Doo Mach Z 1000 SDI, 2005 Electrical Harness Diagram

#

Description
Price

1

Frame Harness Ass'y | Includes 001 to 695

515176083

Unavailable

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

62

Female Terminal

278001014

$3.28

68

Female Housing, 2 Circuits

409209500

$15.27

73

Wire Seal

278001013

$3.28

99

Open Barrel

278000992

$2.21

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

127

Male Lock, 3 Circuits

409207600

$3.19

138

Sealing Cap

293000052

$3.19

191

Fuse, 30 Amperes

410917200

$3.28

206

Female Terminal

409004200

$4.55

248

Fuse Holder

409004000

$8.09

251

CLIP - Call your local BRP dealership

409014200

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

258

Tubing 10 MM 1000MM Long

219704407

$2.79

302

Tie Wrap 94 mm | 4X4

293750001

$1.03

320

Female Terminal

515175567

$7.69

341

Tubing Shrink

515175608

Unavailable

351

Female Lock, 4 Circuits

278001474

$3.49

355

Female Housing, 2 Circuits

515175658

$16.18

359

Male Housing

515175666

$15.49

363

Female Terminal Housing, 2 Circuits

515175670

$8.39

368

Female Lock, 2 Circuits

515175675

$4.55

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

691

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

278002027

Unavailable

695

KEYING PIN - Call your local BRP dealership

515176283

Unavailable
