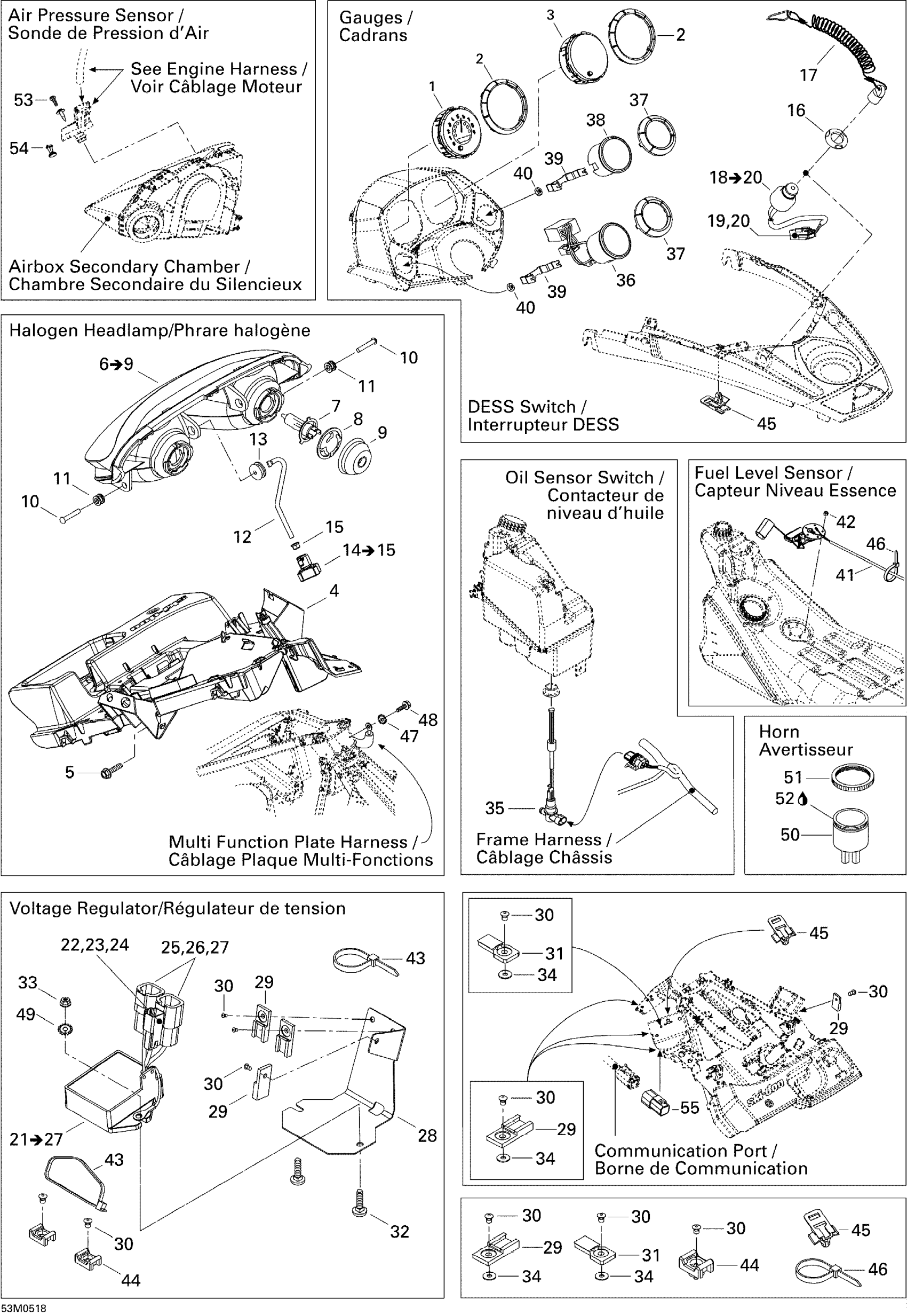

Ski-Doo Mach Z 1000 SDI, 2005 10- Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership

515176244

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

Tachometer

515176275

Unavailable

4

MULTI FUNCTION PLATE - Call your local BRP dealership

515176104

Unavailable

5

Hex. Flange Screw M6 X 16

210261650

$1.67

6

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

9

COVER - Call your local BRP dealership

515175911

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

12

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

13

Grommet - Call your local BRP dealership

415100800

Unavailable

14

HANDLE - Call your local BRP dealership

515175975

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Safety Nut (DESS Switch)

278002963

$3.28

17

DESS

515178284

$84.99

18

DESS Switch

515177249

$114.99

19

Male Terminal

515175232

$1.58

20

Male Housing, 3 Circuits

515175494

$16.18

21

Voltage Regulator | Includes 32 to 38

515176243

$359.99

22

Male Housing, 2 Circuits

409206900

$9.59

23

Male Terminal

278000631

$4.39

24

Male Lock, 2 Circuits

409207500

$3.19

25

Female Housing, 4 Circuits

278000635

$16.49

26

Male Terminal

515175568

$9.12

27

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

28

Housing Support

515176167

Unavailable

29

Clip

270000141

$11.49

30

Avdel Rivet 3/16"

293150037

$0.56

31

DEUTSCH GRAY CLIP - Call your local BRP dealership

515176209

Unavailable

32

Carriage Bolt M6 X 25

207762544

$1.69

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Flat Washer

517225900

$0.18

35

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

36

Temperature Gauge

515176214

Unavailable

37

RING GAUGE - Call your local BRP dealership

515176216

Unavailable

38

FUEL GAUGE - Call your local BRP dealership

515176215

Unavailable

39

HOLDER CASE - Call your local BRP dealership

515176235

Unavailable

40

LOCK NUT - Call your local BRP dealership

515176236

Unavailable

41

FUEL LEVEL SENSOR - Call your local BRP dealership | LTD

515176213

Unavailable

42

Elastic Stop Nut M5

232551414

$0.87

43

Tie Wrap 368 mm

293750008

$1.04

44

Tie Rap Mount (screwable)

515176795

$5.39

45

Housing Support

515175283

$9.19

46

Tie-Rap 180 mm

414115200

$0.11

46

Tie Wrap 142 mm

293750002

$1.25

46

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

46

Tie-Rap 173 mm

293750009

$1.04

47

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

48

Hex. Flange Screw M6 X 12

210261250

$1.90

49

Lock Washer Serrated M6

250200041

$1.15

50

HORN - Call your local BRP dealership

515176035

Unavailable

51

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

52

Silicone Sealant 51388, 300 ml

296000309

$36.99

53

Tuflock Phillips Plastic Screw

414745900

$1.69

54

CAP - Call your local BRP dealership

508000465

Unavailable

55

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable
