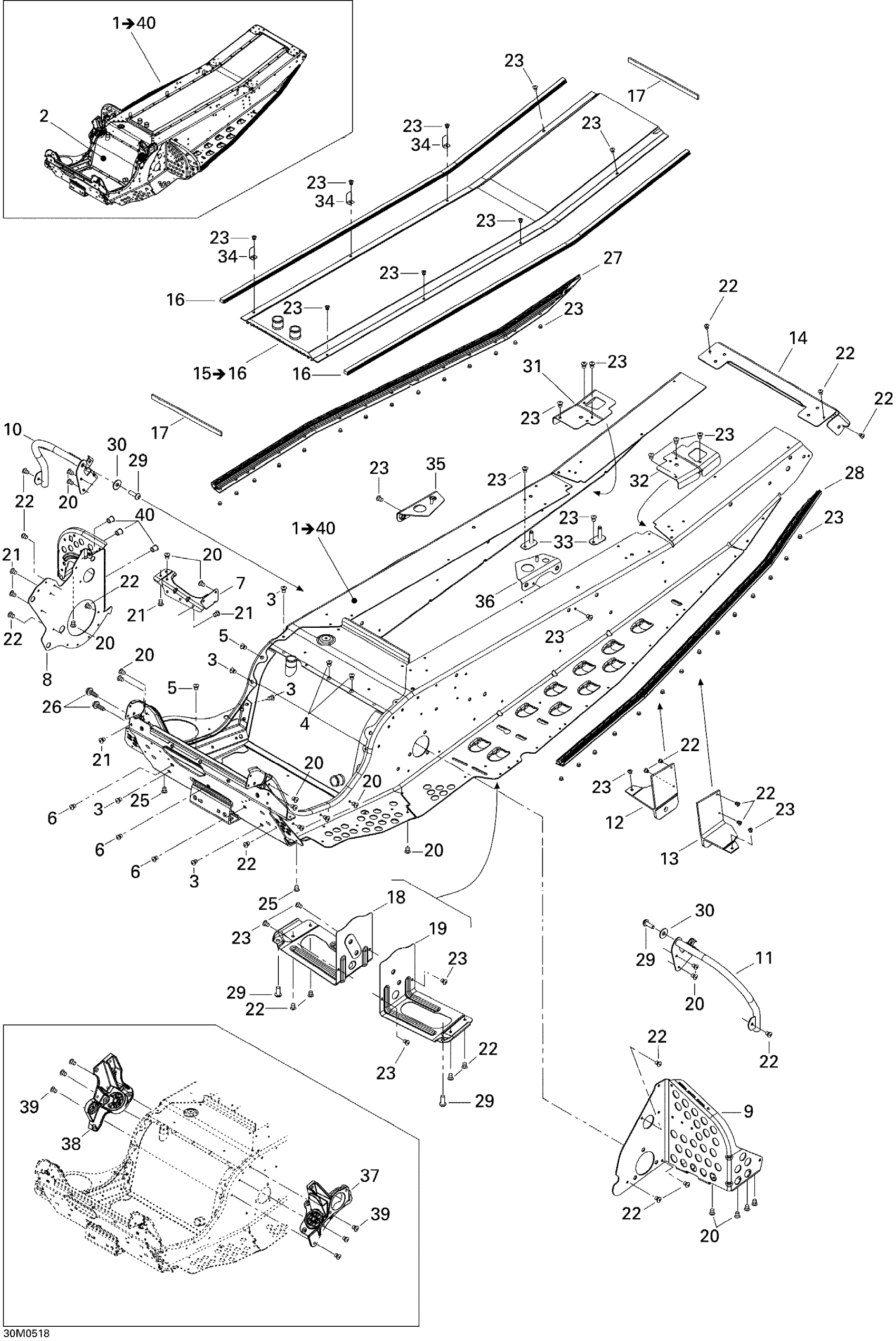

Ski-Doo Mach Z 1000 SDI, 2005 09- Frame Diagram
#
Description
Price
1
Frame Ass'y | Includes 1 to 40
415128930
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
RH Slide Bracket
518323572
Unavailable
13
LH SLIDE BRACKET - Call your local BRP dealership
518323573
Unavailable
14
REAR CAP - Call your local BRP dealership
518324409
Unavailable
15
Rear Radiator | Includes 17 to 18
518324242
Unavailable
16
RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.
415012300
Unavailable
17
GASKET - Call your local BRP dealership | LTD
293200097
Unavailable
18
RH FOOTREST REINFORCEMENT - Call your local BRP dealership
518323952
Unavailable
19
LH Footrest Reinforcement
518323954
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
27
RH Roller
518324298
Unavailable
28
LH Roller
518324299
Unavailable
29
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter
205982086
Unavailable
31
RH FRAME REINFORCEMENT - Call your local BRP dealership
518324431
Unavailable
32
LH FRAME REINFORCEMENT - Call your local BRP dealership
518324432
Unavailable
33
Tank Bracket
518322791
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324385
Unavailable
36
LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324386
Unavailable
37
LH Engine Support
518323715
Unavailable
38
RH ENGINE SUPPORT - Call your local BRP dealership
518323716
Unavailable
