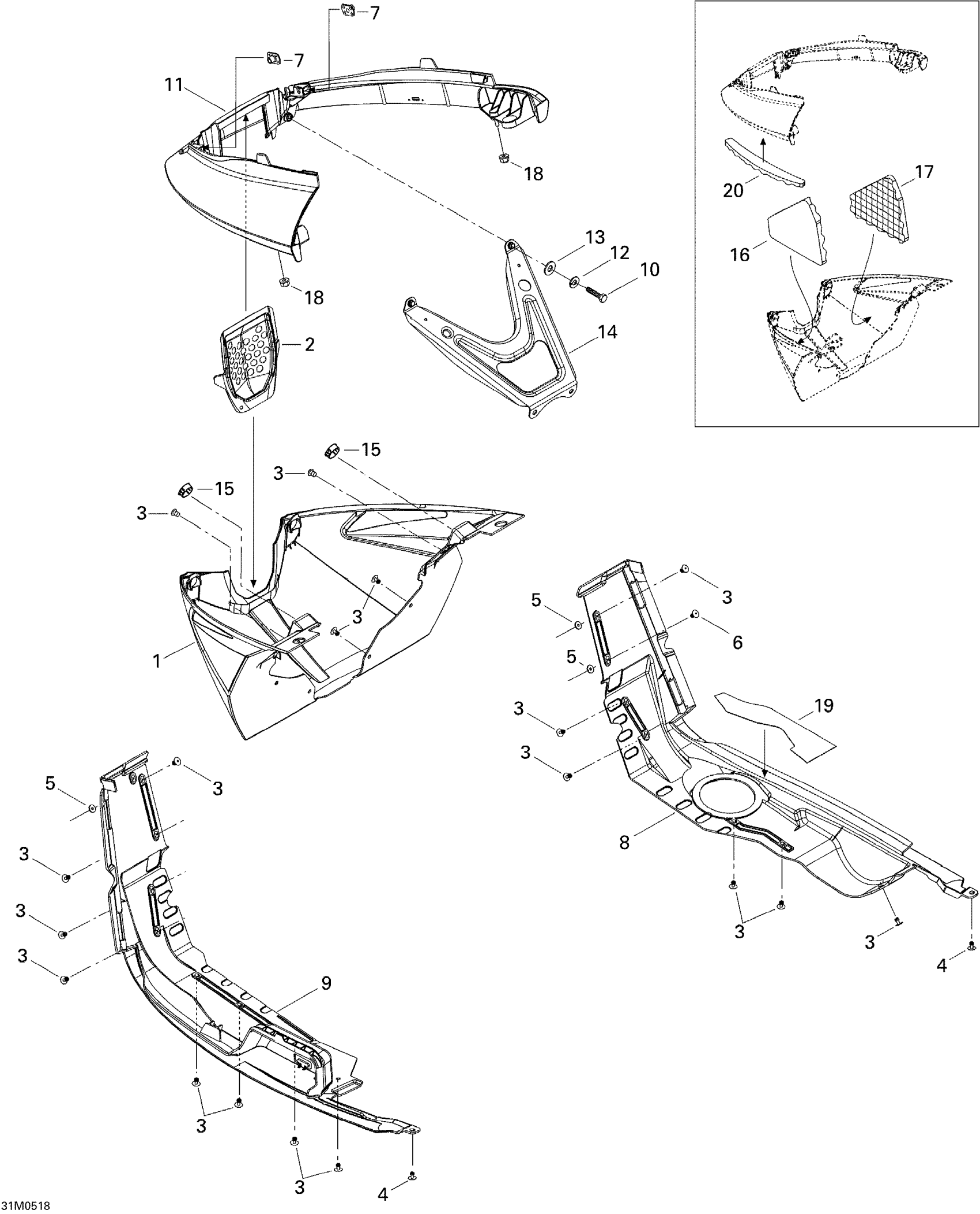

Ski-Doo Mach Z 1000 SDI, 2005 09- Bottom Pan Diagram

#

Description
Price

1

Front Bottom Pan, Slate Grey | X

502006727

Unavailable

2

BOTTOM PAN GRILL, BLACK - Call your local BRP dealership

502006746

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Pop Rivet 3/16"

293150103

$0.55

5

Washer

517124300

$0.19

6

Pop Rivet 3/16"

293150043

$2.09

7

Nut Welded, M6

293100003

$9.12

8

RH BOTTOM PAN, BLACK - Call your local BRP dealership

502006725

Unavailable

9

LH BOTTOM PAN, BLACK - Call your local BRP dealership

502006726

Unavailable

10

Hex. Screw M6 X 14

207161444

$0.58

11

BUMPER, BLACK - Call your local BRP dealership

502006724

Unavailable

12

Lock Washer M6, Black

234161471

$0.53

13

Flat Washer

224061121

$0.53

14

Support

502006772

$38.99

15

Black, Nylon Cap

414916600

$4.69

16

LH BOTTOM PAN FOAM - Call your local BRP dealership

502006765

Unavailable

17

RH BOTTOM PAN FOAM - Call your local BRP dealership

502006767

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Reflective Sheet

502006795

Unavailable

20

BUMPER FOAM - Call your local BRP dealership

502006800

Unavailable
