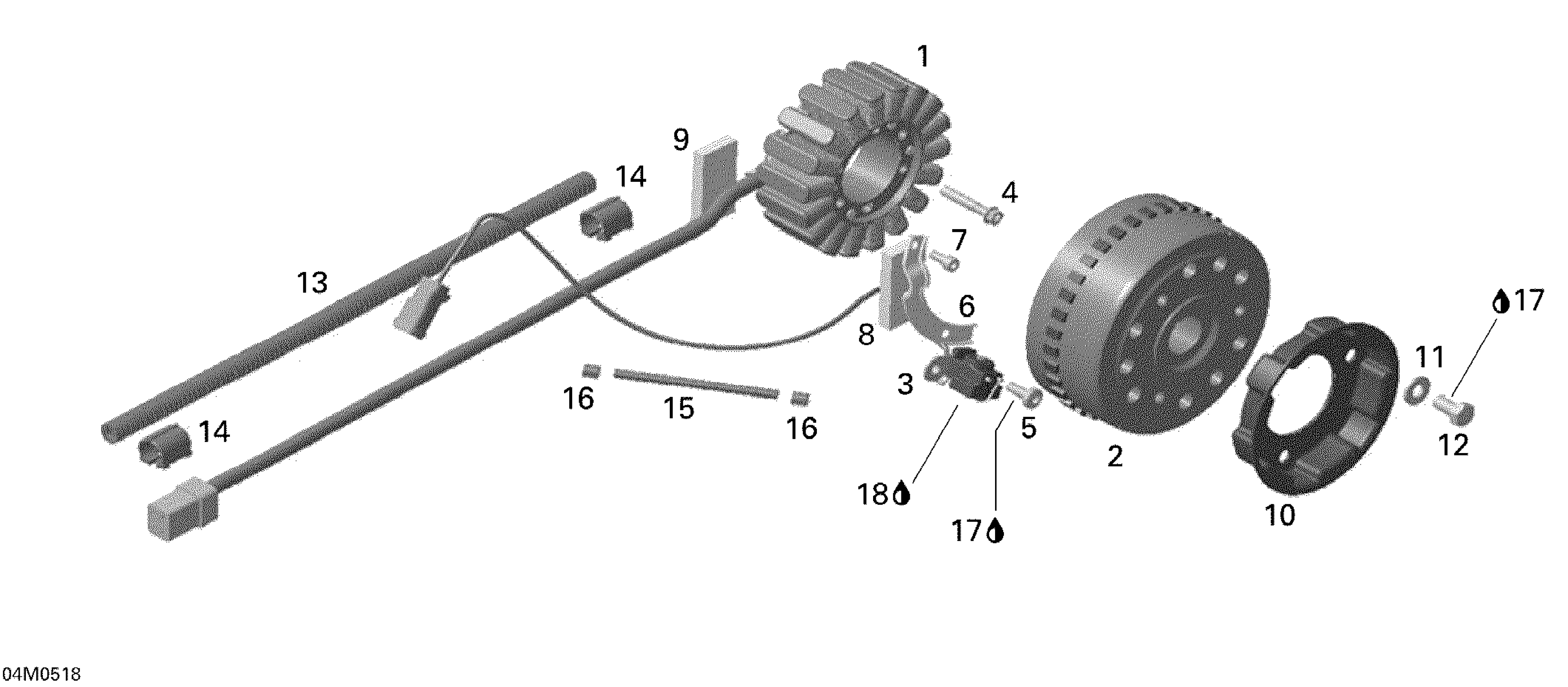

Ski-Doo Mach Z 1000 SDI, 2005 03- Magneto Diagram

#

Description
Price

1

STATOR ASS'Y - Call your local BRP dealership

420866068

Unavailable

2

Flywheel

420866042

Unavailable

3

Pick-Up

410922951

$114.99

4

Torx Flange Screw M6 X 35

420440274

$1.01

5

Torx Screw M6 X 16

420640324

$2.11

6

RETAINING PLATE - Call your local BRP dealership

420851870

Unavailable

7

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

420640541

Unavailable

8

Rubber Stopper

420960925

$6.39

9

RUBBER STOPPER - Call your local BRP dealership

420960920

Unavailable

10

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

11

Flat Washer

420827405

$1.69

12

Hex. Screw M8 X 12

420940161

Unavailable

13

TUBE - Call your local BRP dealership

420660912

Unavailable

14

CLIP - Call your local BRP dealership

420960892

Unavailable

15

Tube 390MM

420460042

$8.57

16

CLIP - Call your local BRP dealership

420960894

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

Loctite 5910, 300 ml

293800081

$57.99
