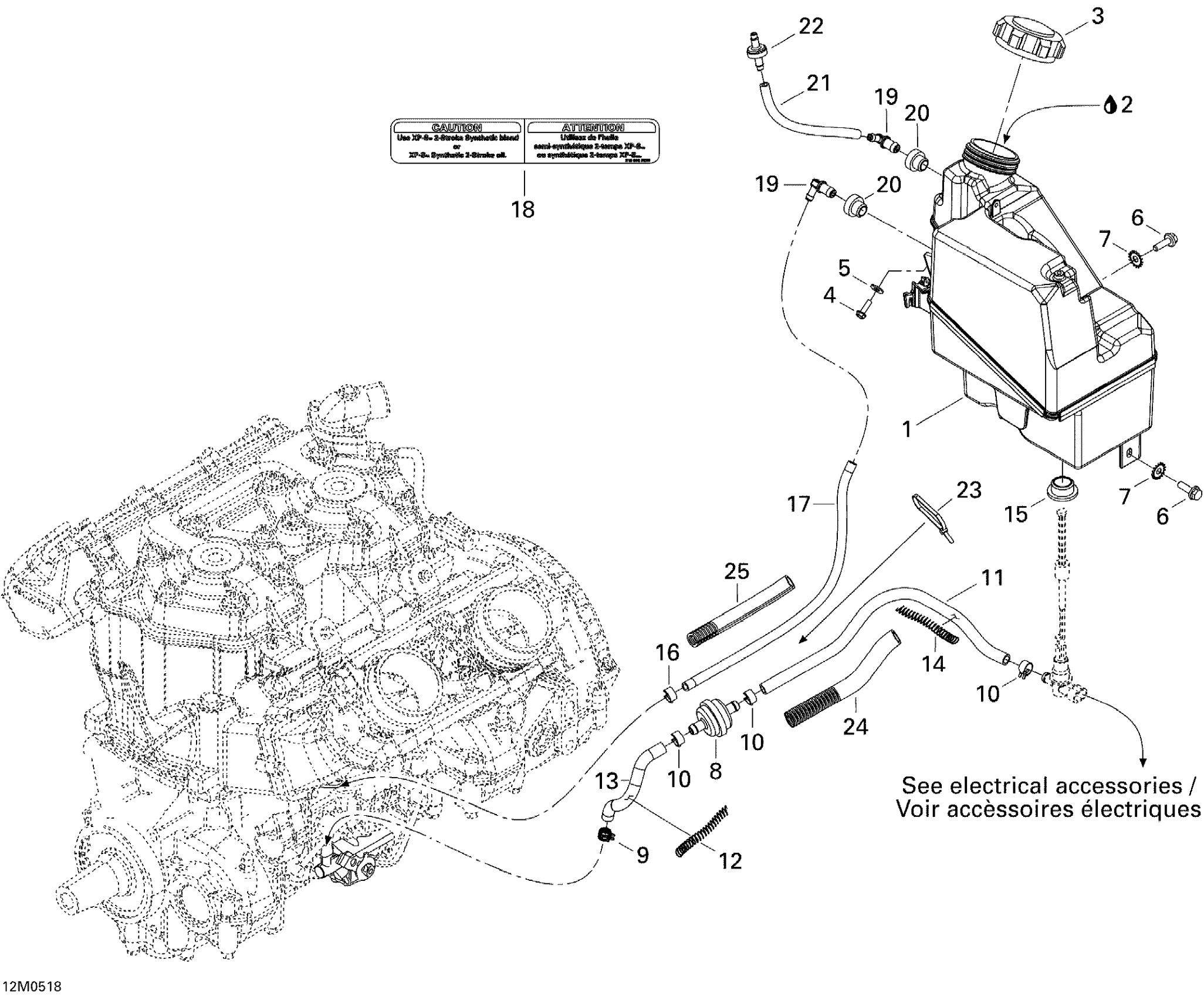

Ski-Doo Mach Z 1000 SDI, 2005 02- Oil System Diagram

#

Description
Price

1

INJECTION OIL TANK - Call your local BRP dealership

519000070

Unavailable

2

OIL 2T 12X1BLEND - Call your local BRP dealership This part replaces 293600071.

293600100

Unavailable

2

SEMI-SYNTHETIC OIL, 3 X 4 LITERS - Call your local BRP dealership

293600072

Unavailable

2

SEMI-SYNTHETIC OIL, 205 LITERS - Call your local BRP dealership

293600073

Unavailable

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Hex. Forming Screw M5 X 16

210251650

$1.15

5

Flat Washer

224061121

$0.53

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Lock Washer Serrated M6

250200041

$1.15

8

Filter

414536500

$4.02

9

Spring Clamp

414420700

$0.72

10

Spring Clamp

414415200

$0.88

11

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

12

SPRING_COMPRESSION - Call your local BRP dealership

414940300

Unavailable

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

14

SPRING - Call your local BRP dealership

519000065

Unavailable

15

Insulating Ring

570023000

$5.61

16

Spring Clamp

414554800

$0.88

17

Polyurethane Hose 10000Mm Long

219704410

$56.99

18

Warning Decal, Oil

516002325

Unavailable

19

Male Connector

414580700

$4.12

20

Grommet

513032908

$10.49

21

Polyurethane Hose 10000Mm Long

219704410

$56.99

22

Check Valve

275500398

$10.99

23

Tie Wrap 142 mm

293750002

$1.25

24

Tubing 10 MM 1000MM Long

219704407

$2.79

25

Was 409901700 Tubing (9 mm)

219704399

$84.99
