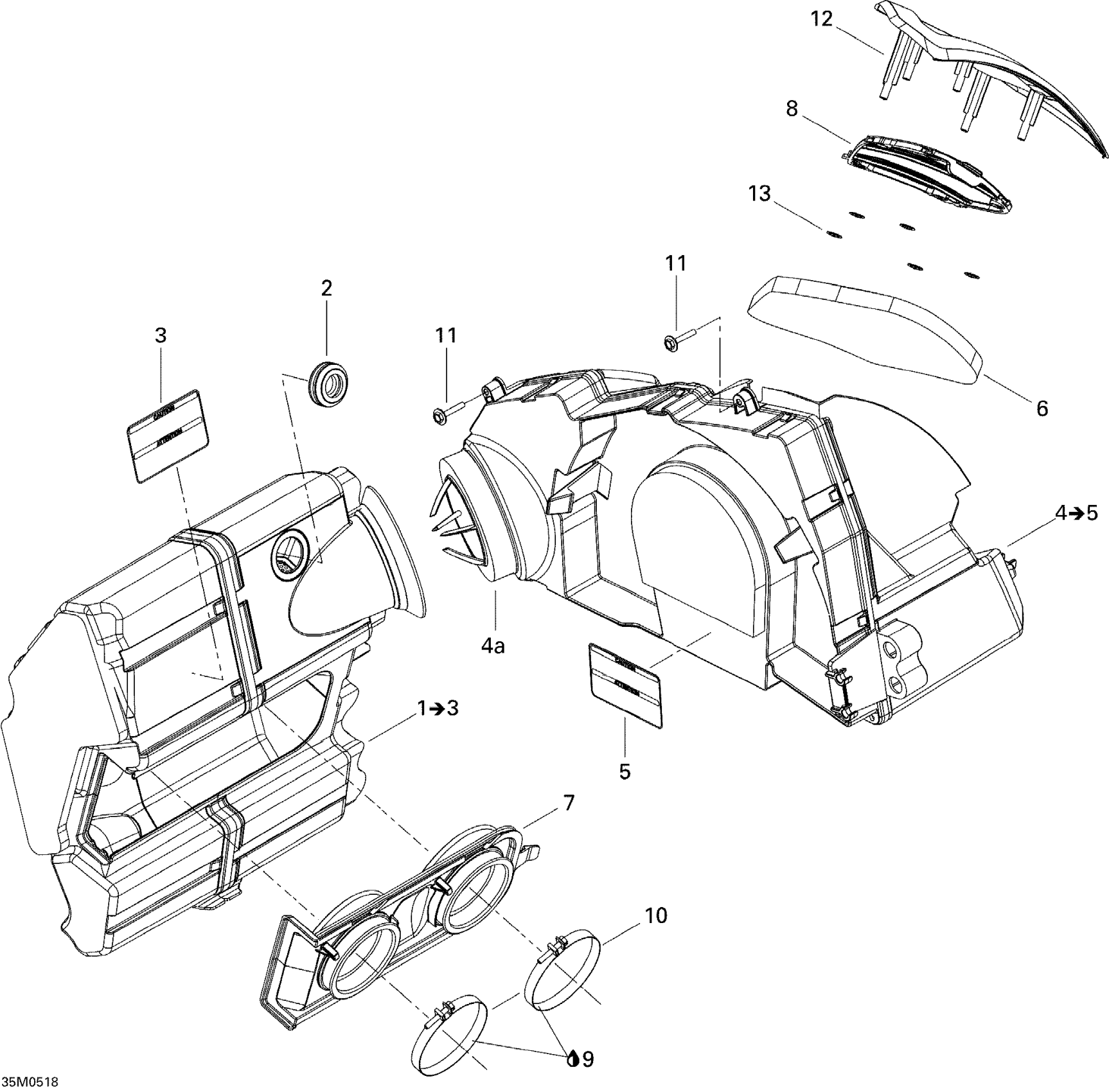

Ski-Doo Mach Z 1000 SDI, 2005 02- Air Intake System Diagram
#
Description
Price
1
PRIMARY CHAMBER ASS'Y - Call your local BRP dealership
508000354
Unavailable
2
GROMMET - Call your local BRP dealership
570065500
Unavailable
3
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
4
Secondary Chamber Ass'y | Includes 4 to 5
508000359
Unavailable
4a
FOAM - Call your local BRP dealership
508000520
Unavailable
5
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
6
AIR FILTER - Call your local BRP dealership
508000367
Unavailable
7
ADAPTOR PLATE ASS'Y - Call your local BRP dealership
508000451
Unavailable
8
Intake Filter | X
508000433
Unavailable
9
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
12
Deflector
508000461
Unavailable
