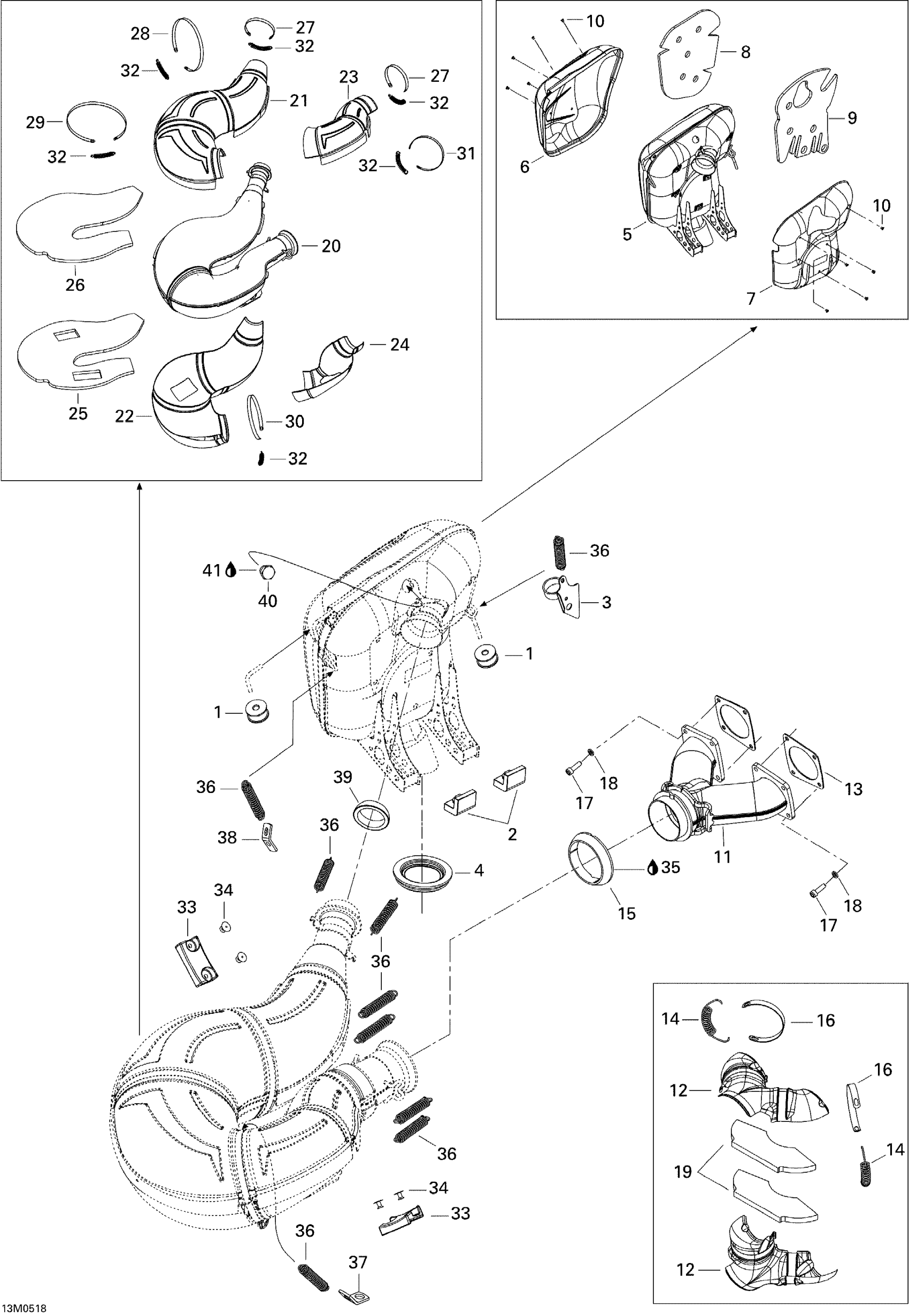

Ski-Doo Mach Z 1000 SDI, 2005 01- Exhaust System Diagram

#

Description
Price

1

Anti-Vibration Rubber

707600702

$8.57

2

Lower Stopper

514053373

Unavailable

3

MUFFLER BRACKET - Call your local BRP dealership

514053810

Unavailable

4

EXHAUST GROMMET - Call your local BRP dealership

514053935

Unavailable

5

Muffler Ass'y | Includes 4 to 10

514054172

Unavailable

6

RH Heat Deflector

514053777

Unavailable

7

LH HEAT DEFLECTOR - Call your local BRP dealership

514053778

Unavailable

8

RH INSULATING WOOL - Call your local BRP dealership

514053904

Unavailable

9

LH Insulating Wool

514053905

Unavailable

10

Pop Rivet 3/16”

390910000

$0.57

11

EXHAUST MANIFOLD - Call your local BRP dealership

420673150

Unavailable

12

EXHAUST MANIFOLD ENVELOPE - Call your local BRP dealership

514054033

Unavailable

13

GASKET - Call your local BRP dealership

420630820

Unavailable

14

Spring

514053643

$6.35

15

Exhaust Gasket

514053487

$26.49

16

RETAINING STRAP - Call your local BRP dealership

514053493

Unavailable

17

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

18

Washer

514053953

$0.77

19

INSULATING WOOL - Call your local BRP dealership

514054034

Unavailable

20

Tuned Pipe

514053764

Unavailable

21

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053772

Unavailable

22

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053773

Unavailable

23

UPPER FRONT HALF ENVELOPE - Call your local BRP dealership

514053770

Unavailable

24

LOWER FRONT HALF ENVELOPE - Call your local BRP dealership

514053771

Unavailable

25

LOWER INSULATING WOOL - Call your local BRP dealership

514053910

Unavailable

26

UPPER INSULATING WOOL - Call your local BRP dealership

514054035

Unavailable

27

Retaining Strap

514053498

$11.47

28

RETAINING STRAP - Call your local BRP dealership

514053975

Unavailable

29

RETAINING STRAP - Call your local BRP dealership

514053976

Unavailable

30

RETAINING STRAP - Call your local BRP dealership

514053605

Unavailable

31

Retaining Strap

514053501

$9.27

32

Spring

514053643

$6.35

33

BUMPER - Call your local BRP dealership

514053352

Unavailable

34

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

35

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

36

Spring

415107100

$6.35

37

SPRING BRACKET - Call your local BRP dealership

514054087

Unavailable

38

Spring Bracket

514053026

Unavailable

39

Exhaust Gasket

514053677

$24.99

40

Hexagonal Head Pipe Plug M14

250100074

$12.72

41

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
