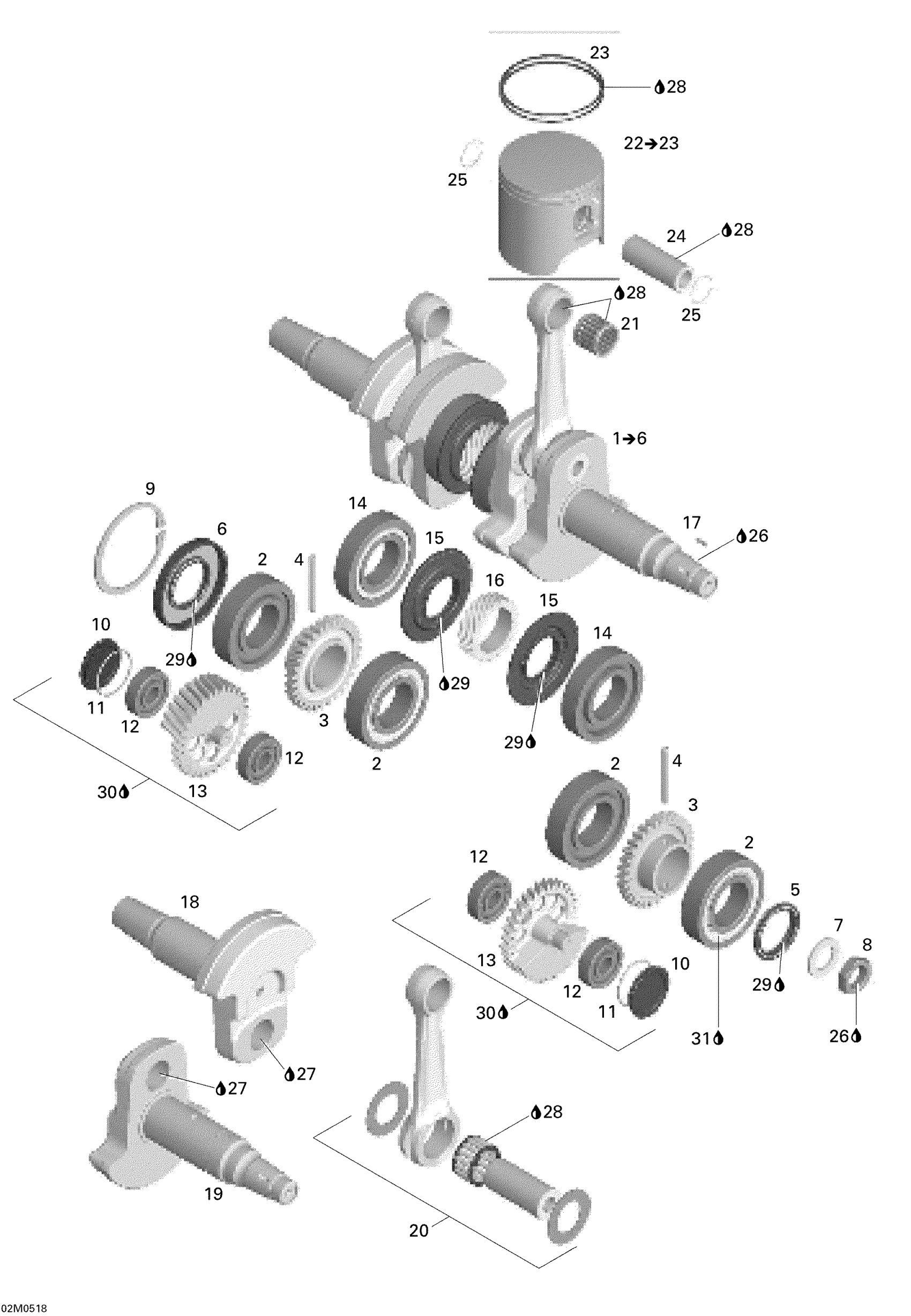

Ski-Doo Mach Z 1000 SDI, 2005 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 6

420889216

Unavailable

2

Ball Bearing | With drive pin

420832602

$94.00

3

GEAR BALANCE, 31 TEETH - Call your local BRP dealership

420834571

Unavailable

4

NEEDLE PIN - Call your local BRP dealership

420929430

Unavailable

5

OIL SEAL - Call your local BRP dealership

420430540

Unavailable

6

OIL SEAL - Call your local BRP dealership

420931287

Unavailable

7

Lock Washer, 22 mm

420945759

$1.78

8

Hex. Nut, M22 X 1.5

420842239

$16.39

9

CIRCLIP - Call your local BRP dealership

420845700

Unavailable

10

Cover Bearing

420812175

Unavailable

11

O-Ring

420230035

$7.79

12

BALL BEARING - Call your local BRP dealership

420232292

Unavailable

13

Balance Gear, 31 Teeth

420834581

Unavailable

14

BALL BEARING - Call your local BRP dealership

420832582

Unavailable

15

Oil Seal

420931910

$35.79

16

Central Gear, 17 Teeth

420834560

Unavailable

17

Woodruff Key

420246015

$3.01

18

Crankshaft, PTO Side

420819147

Unavailable

19

Crankshaft, Mag Side

420819177

Unavailable

20

Rod Repair Kit, PTO Side

420889214

Unavailable

20

Rod Repair Kit, Mag Side

420889213

Unavailable

21

NEEDLE BEARING - Call your local BRP dealership

420832680

Unavailable

22

Piston Ass'y With Rings | Includes 22 to 23

420889233

$244.75

22

Piston Ass'y With Rings | Includes 22 to 23

420889233

$244.75

23

SEMI-TRAPEZ RING - Call your local BRP dealership

420815370

Unavailable

24

GUDGEON PIN - Call your local BRP dealership

420916440

Unavailable

25

CIRCLIP - Call your local BRP dealership

420845611

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Sealant Loctite 648

219703000

$41.01

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Petamo Grease, GHY133N, 400 g

420899271

$65.64

30

Isoflex Grease

420898351

$124.60

31

Isoflex Grease, TOPAS NB52, 50 g

293550021

$55.94
