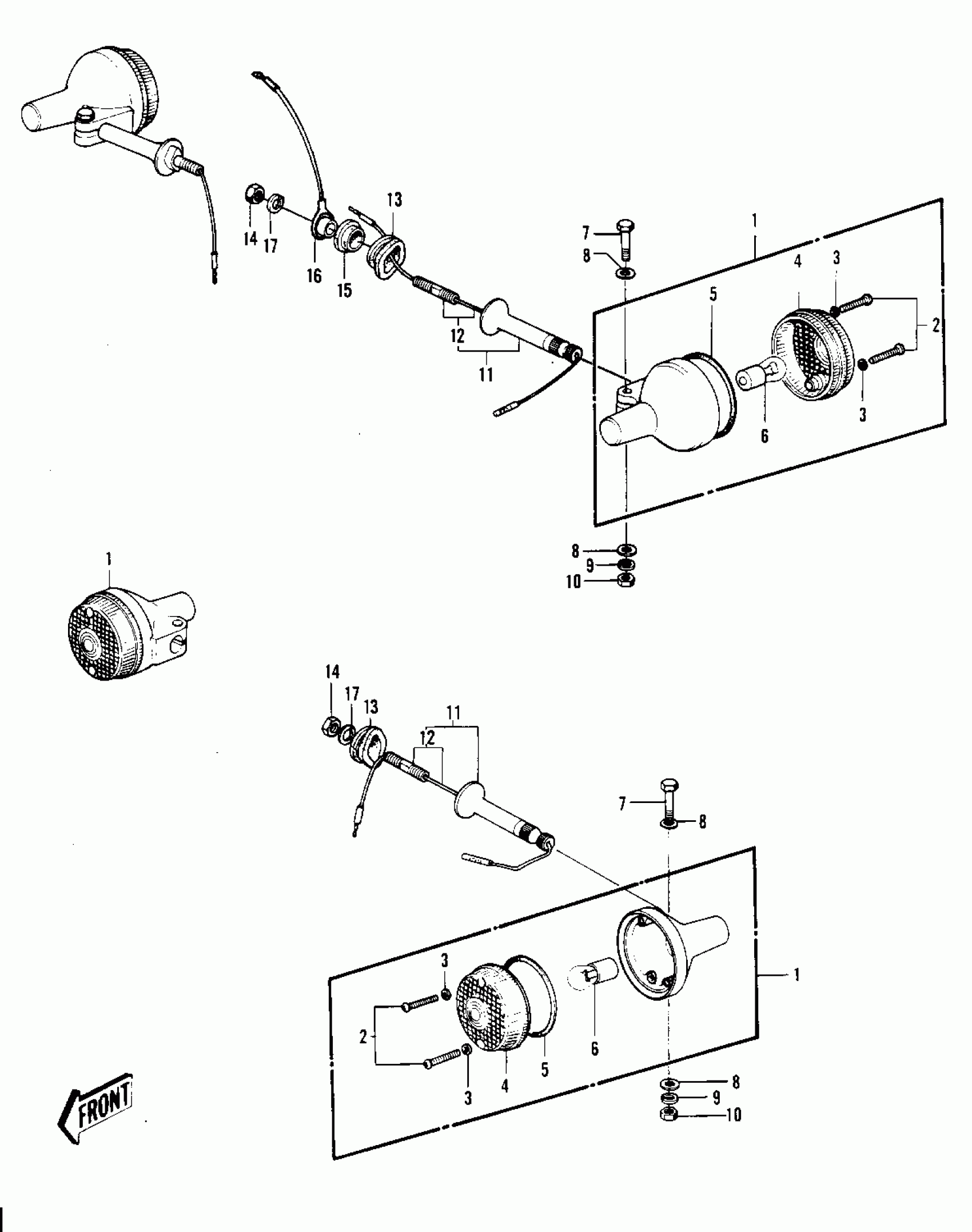

Kawasaki Mach II TURN SIGNALS ('74-'75 S3/S3-A) Diagram

#

Description

Price

1

LAMP ASSY-TURN SIGNAL

23040-037

Unavailable

2

SCREW-PAN HEAD,4X20

220E0420A

Unavailable

3

WASHER,PLAIN,4MM

23058-002

Unavailable

4

LENS-SIGNAL LAMP,"045-6588"

23048-1001

Unavailable

4

LENS-SIGNAL LAMP,"045-6588"

23048-1001

Unavailable

5

GASKET,SIGNAL LAMP

23050-003

Unavailable

6

BULB,12V 32CP(23W)

92069-055

Unavailable

7

BOLT-UPSET

112G0630

Unavailable

7

BOLT-UPSET

112G0630

Unavailable

8

WASHER-PLAIN,6MM

411D0600

Unavailable

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

BRACKET-TURN SIG LAMP

23078-001

Unavailable

12

BOLT SET-SIG LAMP BKT

23073-001

Unavailable

13

DAMPER,LAMP

92075-128

Unavailable

14

NUT-HEX-FINE,10MM

315B1000

Unavailable

15

DAMPER RUBBER,SIG LM

92075-158

Unavailable

16

COLLAR

23076-003

Unavailable

17

WASHER SPRING 10MM

461F1000

Unavailable
