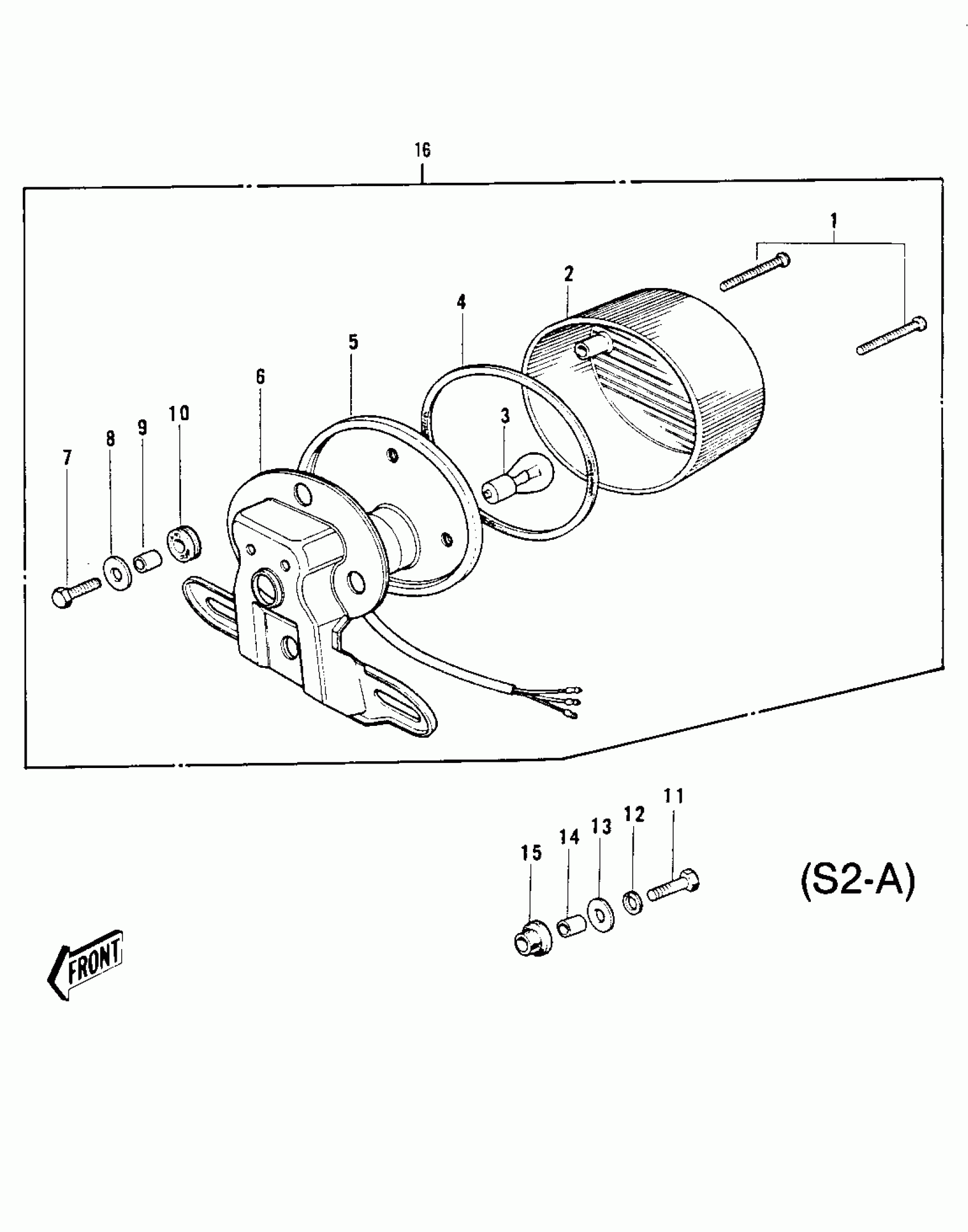

Kawasaki Mach II TAILLIGHT (S2-A) Diagram

#

Description

Price

1

UNAVAILABLE IN PRICE BOOK

220E0435

Unavailable

2

LENS-TAIL LAMP

23026-023

Unavailable

3

BULB,12V 27/8W

92069-059

Unavailable

4

GASKET-TAIL LAMP LENS

23028-018

Unavailable

5

CASE,TAIL LAMP

23027-030

Unavailable

6

BKT-LICENSE PLT,BLACK

23036-022-21

Unavailable

7

BOLT-UPSET,6X20

112G0620

Unavailable

8

WASHER,6.5X20X1.6

92022-125

Unavailable

9

COLLAR,6.8X10X8.5

92027-129

Unavailable

10

DAMPER RUBBER

92075-076

Unavailable

11

BOLT 6X22

112B0622

Unavailable

12

WASHER SPRING 6MM

461F0600

Unavailable

13

WASHER,6.5X20X1.6

92022-125

Unavailable

14

COLLAR 6.8X10X10.5

92027-120

Unavailable

15

DAMPER RUBBER

92075-112

Unavailable

16

LAMP ASSY-TAIL,BLACK

23024-026-21

Unavailable
