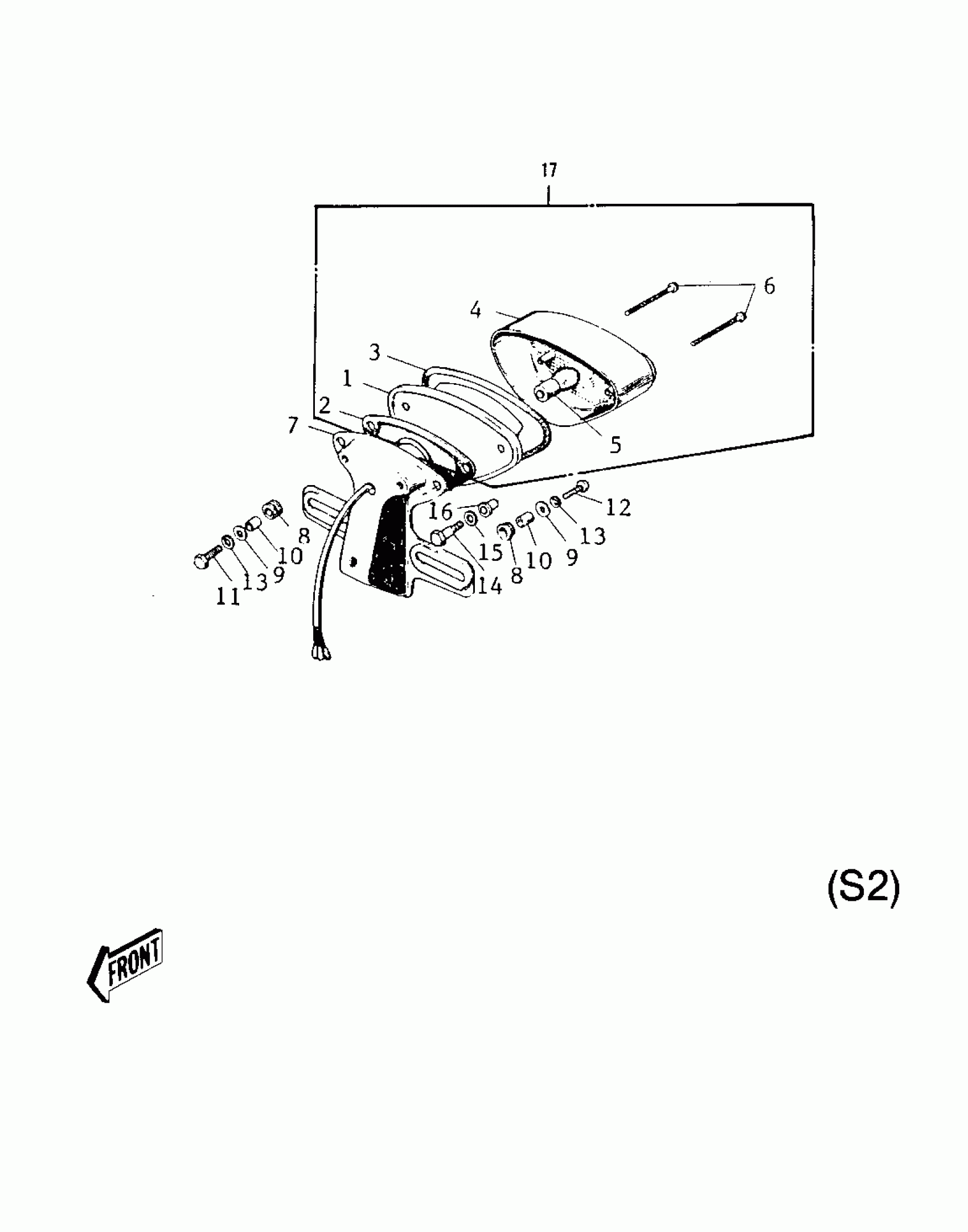

Kawasaki Mach II TAILLIGHT (S2) Diagram

#

Description

Price

1

CASE-TAIL LAMP

23027-029

Unavailable

2

GASKET-TAIL LAMP CASE

23028-015

Unavailable

3

GASKET-TAIL LAMP LENS

23028-016

Unavailable

4

LENS-TAIL LAMP

23026-022

Unavailable

5

BULB,12V 27/8W

92069-059

Unavailable

6

SCREW

220R0455

Unavailable

7

BKT-LICENSE PLT,BLACK

23036-012-21

Unavailable

8

DAMPER RUBBER

92075-112

Unavailable

9

WASHER,6.5X20X1.6

92022-125

Unavailable

10

COLLAR 6.8X10X10.5

92027-120

Unavailable

11

BOLT-UPSET,6X20

112G0620

Unavailable

12

SCREW-PAN-CROS,6X20,WHITE

220B0620

Unavailable

13

WASHER SPRING 6MM

461F0600

Unavailable

14

BOLT

92001-105

Unavailable

15

WASHER,8.5X20X1.6

92022-1561

Unavailable

16

DAMPER RUBBER

92075-091

Unavailable

17

LAMP ASSY-TAIL

23025-044

Unavailable
