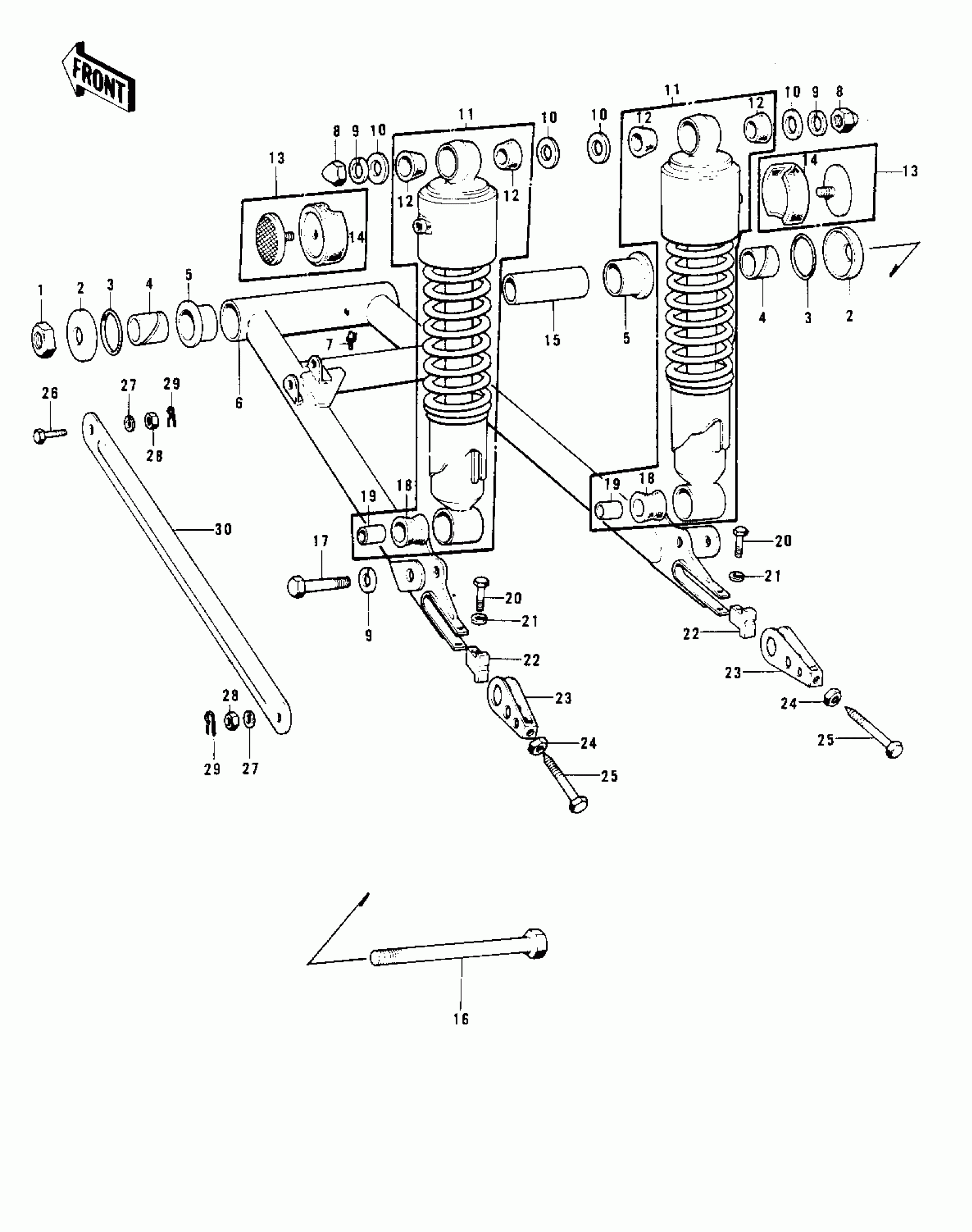

Kawasaki Mach II SWING ARM/SHOCK ABSORBERS ('74-'75 S3/S3 Diagram
#
1
NUT-LOCK,14MM
92019-011
Unavailable
2
CAP,SWING ARM
33035-007
Unavailable
3
"0" RING,30MM
671B2530
Unavailable
4
SLEEVE-SWING ARM,SHRT
33034-013
Unavailable
5
BUSHING-SWING ARM
33033-009
Unavailable
6
ARM-COMP-SWING
33001-1089
Unavailable
6
ARM-COMP-SWING
33001-1089
Unavailable
7
GREASE NIPPLE
92005-002
Unavailable
8
NUT,CAP,10MM
92020-003
Unavailable
9
WASHER SPRING 10MM
461F1000
Unavailable
10
WASHER,10.5X26X2.3
92022-246
Unavailable
11
SHOCK ABSBR RR
45014-078
Unavailable
12
BUSH SHCK ABS RUBBER
45017-001
Unavailable
13
REFLECTOR,REFLEX,REAR
28001-030
Unavailable
13
REFLECTOR,REFLEX,REAR
28001-030
Unavailable
14
DAMPER RUBBER-REFLEX
28016-002
Unavailable
14
DAMPER RUBBER,REFLEX
28016-003
Unavailable
15
SLEEVE-SWING ARM,LONG
33034-012
Unavailable
16
SHAFT-SWING ARM PIVOT
33032-037
Unavailable
17
BOLT HEX HEAD 10X35
113N1035
Unavailable
18
BUSHING,SHCK ABS RUB
45017-018
Unavailable
19
COLLAR,SHOCKABSORBER
45016-003
Unavailable
20
BOLT,FLANGED,8X35
92001-1577
Unavailable
20
BOLT,FLANGED,8X35
92001-1577
Unavailable
21
WASHER SPRING 8MM
461F0800
Unavailable
22
STOPPER,CHAIN ADJUST
33044-002
Unavailable
23
ADJUSTER,CHAIN
33040-056
Unavailable
24
NUT 8MM
312B0800
Unavailable
25
BOLT,8X50
92001-1399
Unavailable
25
BOLT,8X50
92001-1399
Unavailable
26
BOLT,10X29
92003-096
Unavailable
27
WASHER SPRING 10MM
461F1000
Unavailable
28
NUT-HEX-FINE,10MM
314B1000
Unavailable
29
PIN-SNAP,8MM
554A0800
Unavailable
30
TORQUE LINK-RR BRAKE
43007-031
Unavailable
