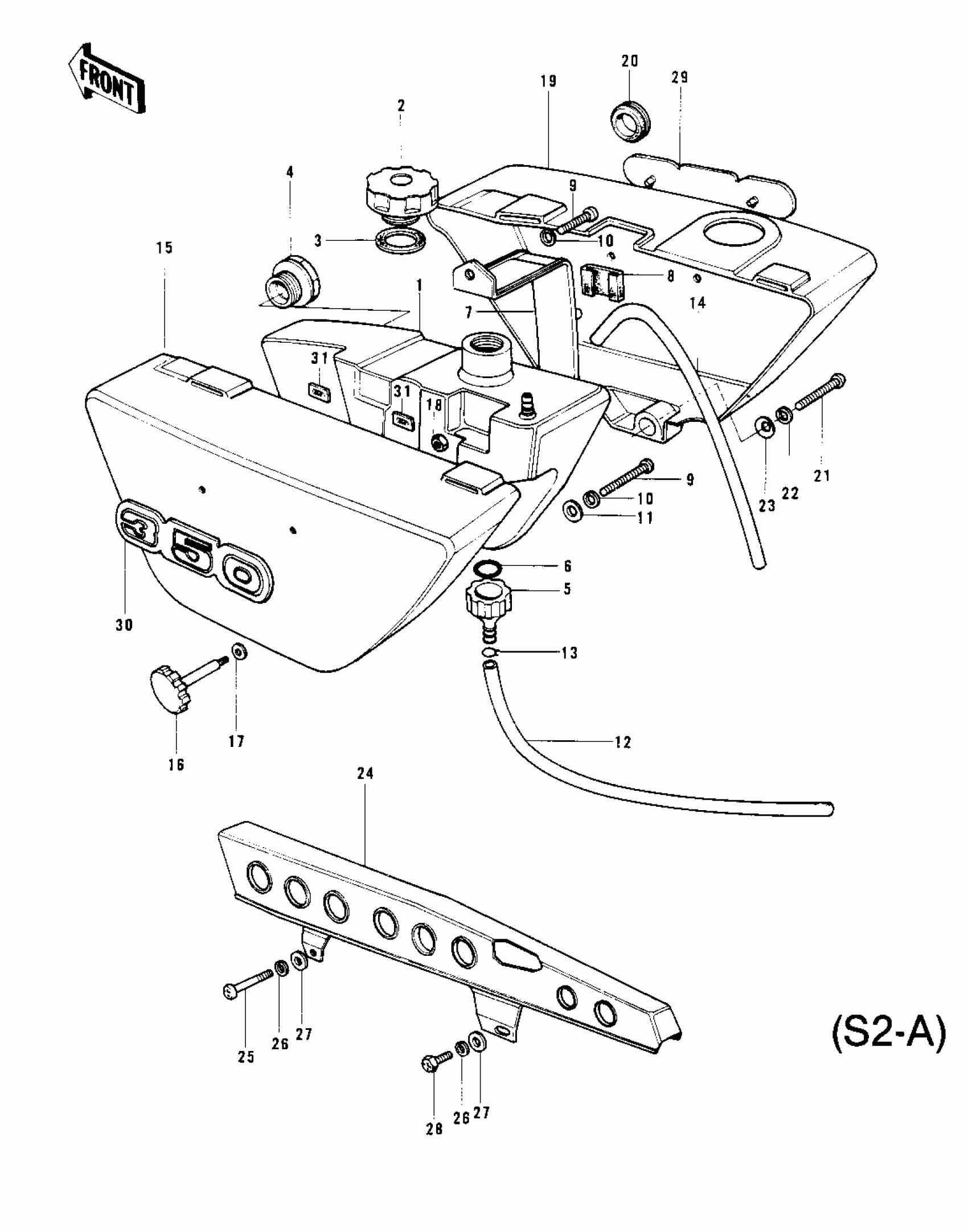

Kawasaki Mach II SIDE COVERS/OIL TANK/CHAIN COVER (S2-A) Diagram
#
Description
Price
1
TANK-OIL
52001-033
Unavailable
2
CAP-OIL TANK
52003-020
Unavailable
3
GASKET-OIL TANK
92065-086
Unavailable
4
GAUGE-OIL LEVEL
52015-005
Unavailable
5
FILTER-OIL
52020-001
Unavailable
6
O RING,15MM
670B2015
Unavailable
7
BAND-OIL TANK
52018-002
Unavailable
8
DAMPER RUBBER-OIL TNK
31082-010
Unavailable
9
SCREW-PAN-CROS,6X14
220B0614
Unavailable
10
WASHER SPRING 6MM
461F0600
Unavailable
11
WASHER PLAIN 6MM
411B0600
Unavailable
12
PIPE-OIL
92059-072
Unavailable
13
CLAMP,TUBE
92037-010
Unavailable
14
TUBE-PVC,5X600
700Q05600
Unavailable
15
COVER-L.H SIDE,ORANGE
36001-039-91
Unavailable
15
COVER-L.H SIDE,C.BLUE
36001-039-93
Unavailable
16
KNOB
92077-020
Unavailable
17
DAMPER RUBB SIDE COV
92075-041
Unavailable
18
NUT 6MM
312B0600
Unavailable
19
COVER,RH SIDE,ORANGE
36007-031-91
Unavailable
19
COVER,RH SIDE,C.BLUE
36007-031-93
Unavailable
20
GROMMET-R.H SIDE COV
92071-065
Unavailable
21
SCREW-PAN HEAD, 6X35
220E0635
Unavailable
22
WASHER SPRING 6MM
461F0600
Unavailable
23
WASHER-PLAIN,6MM
411D0600
Unavailable
24
CASE-CHAIN,FR BLACK
36014-040-21
Unavailable
25
SCREW PAN HEAD 6X55
220E0655
Unavailable
26
WASHER SPRING 6MM
461F0600
Unavailable
27
WASHER,6.5X20X1.6,WHITE
92022-193
Unavailable
28
BOLT,HEX HEAD,6X14
92001-121
Unavailable
29
EMBLEM-R.H SIDE COVER
56018-135
Unavailable
30
EMBLEM-L.H SIDE COVER
56018-136
Unavailable
31
NUT,PUSH,3MM
92018-005
Unavailable
