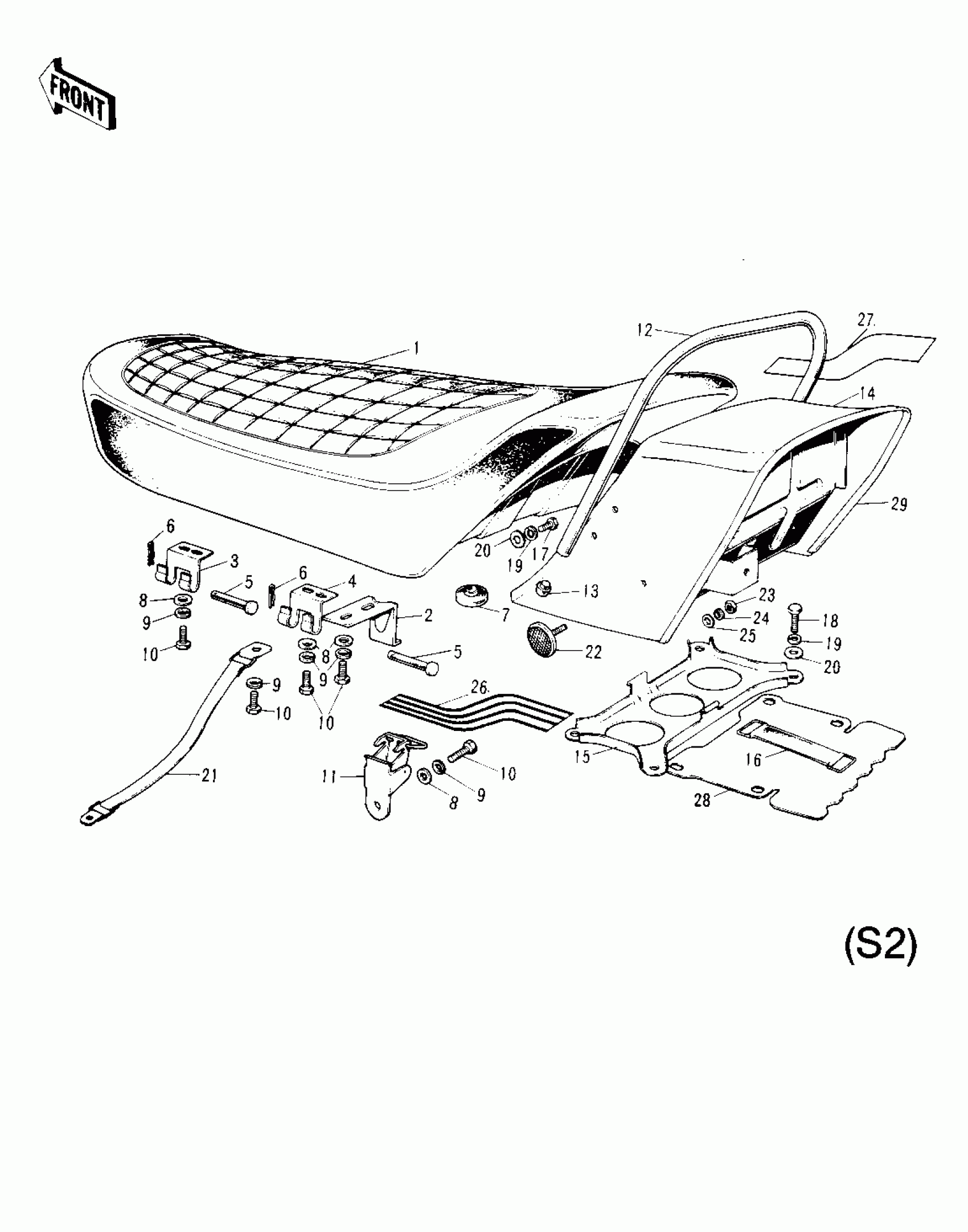

Kawasaki Mach II SEAT/SEAT COVER (S2) Diagram
#
Description
Price
1
SEAT ASSY-DUAL
53001-070
Unavailable
2
HOOK
53008-011
Unavailable
3
HINGE,BLACK
53009-017-10
Unavailable
4
HINGE-SEAT
53009-021
Unavailable
5
PIN,6X48
53011-002
Unavailable
6
COTTER PIN
92041-003
Unavailable
7
DAMPER,DUAL SEAT
92075-023
Unavailable
8
WASHER PLAIN 6MM
411B0600
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
BOLT-UPSET 6X14
112B0614
Unavailable
11
HOOK ASSY
53045-001
Unavailable
12
GRIP-SEAT
53042-004
Unavailable
13
PLUG-SEAT GRIP
32112-004
Unavailable
14
BACK RENT,P.C.RED
53043-001-84
Unavailable
14
BACK RENT,P.C.RED
53043-001-84
Unavailable
15
BOX-TOOL
32098-015
Unavailable
16
BAND
92072-012
Unavailable
17
BOLT SMALL
114G0812
Unavailable
18
BOLT,8X20
115G0820
Unavailable
16
WASHER SPRING 8MM
461F0800
Unavailable
20
WASHER PLAIN 8MM
411B0800
Unavailable
21
BAND-SEAT STOPPER
92072-038
Unavailable
21
BAND-SEAT STOPPER
92072-038
Unavailable
22
REFLECTOR-REFLEX,REAR
28001-009
Unavailable
23
NUT-HEX
311B0500
Unavailable
24
WASHER SPRING 5MM
461F0500
Unavailable
25
WASHER-PLAIN,5MM
411B0500
Unavailable
26
EMBLEM-L.H BACK REST
56027-050
Unavailable
27
EMBLEM-R.H BACK REST
56027-052
Unavailable
28
PLATE
53046-002
Unavailable
29
MOULDING-SEAT REST
53044-001
Unavailable
