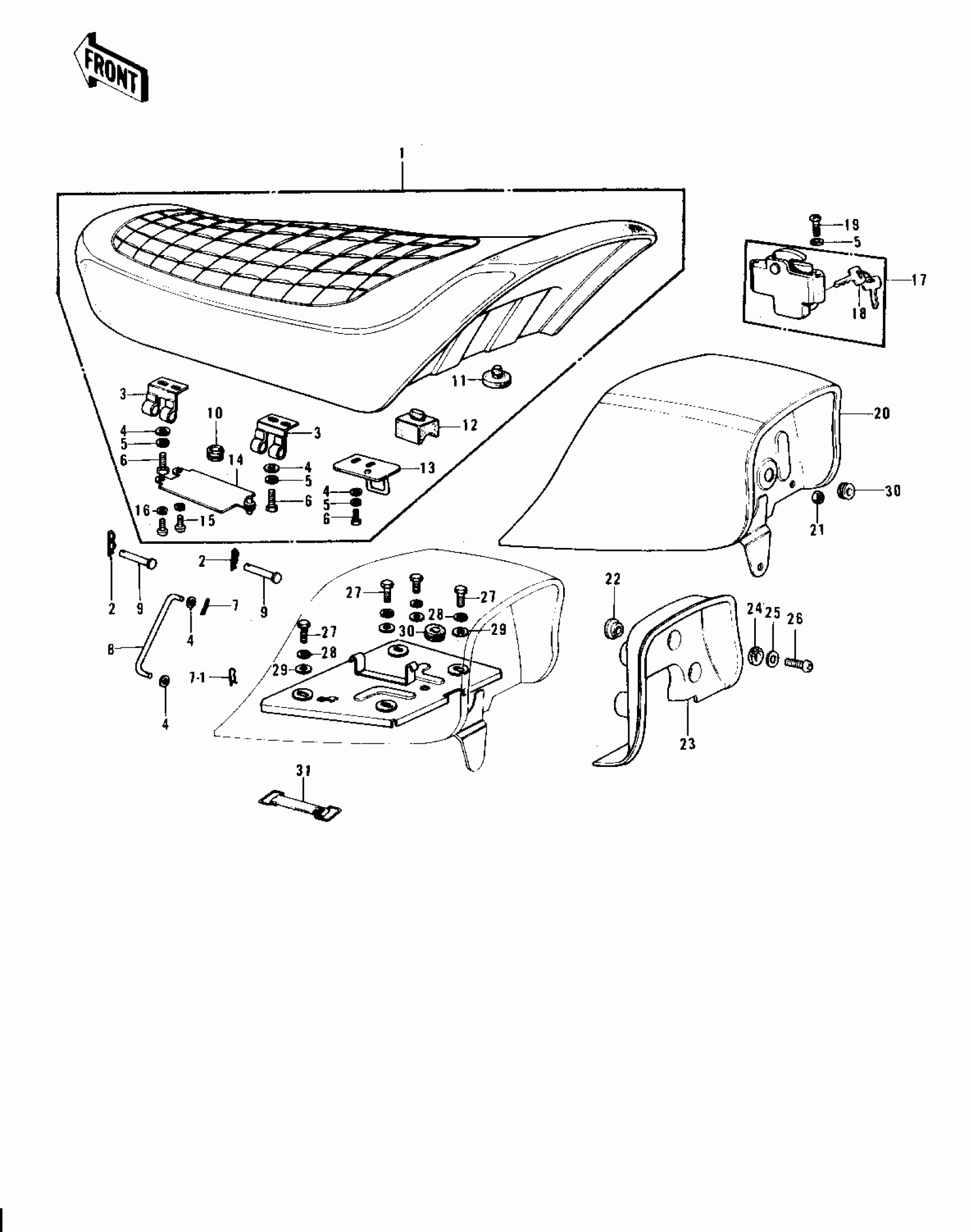

Kawasaki Mach II SEAT/SEAT COVER ('74-'75 S3/S3-A) Diagram
#
1
SEAT-ASSY,DUAL
53001-102
Unavailable
2
COTTER PIN
92041-003
Unavailable
3
HINGE,BLACK
53009-017-10
Unavailable
4
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
5
WASHER SPRING 6MM
461F0600
Unavailable
6
BOLT-UPSET 6X14
112B0614
Unavailable
7
PIN-COTTER,1.6X15
550D1615
Unavailable
7
COTTER PIN
92041-003
Unavailable
8
STAND,SEAT
53054-002
Unavailable
9
PIN,6X48
53011-002
Unavailable
10
GROMMET
92071-056
Unavailable
11
DAMPER
92075-099
Unavailable
12
DAMPER RUBBER-SEAT
92075-156
Unavailable
13
HOOK,SEAT
53008-024
Unavailable
14
CASE,MANUAL
32099-011
Unavailable
15
SCREW PAN HEAD 4X10
220B0410
Unavailable
16
WASHER SPRING 4MM
461F0400
Unavailable
17
LOCK ASSY,SEAT
53045-013
Unavailable
18
KEY SET,#901
27008-055-01
Unavailable
18
KEY SET,#910
27008-055-10
Unavailable
19
SCREW-PAN-CROS,6X14
220B0614
Unavailable
20
BACK REST,C.RED
53043-008-2A
Unavailable
20
BACK REST,C.BLUE
53043-008-2B
Unavailable
20
BACKREST,C.S.RED
53043-008-2V
Unavailable
20
BACKREST,C.GREEN
53043-008-2Y
Unavailable
21
NUT 6MM
311B0600
Unavailable
22
DAMPER RUBBER
92075-169
Unavailable
23
COVER,BACKREST
53057-004
Unavailable
24
DAMPER RUBBER
92075-168
Unavailable
25
WASHER-PLAIN,7MM
92022-240
Unavailable
26
SCREW PAN HEAD 6X28
220B0628
Unavailable
27
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
28
WASHER SPRING 8MM
461F0800
Unavailable
29
WASHER PLAIN 8MM
411B0800
Unavailable
30
GROMMET
92071-059
Unavailable
31
BAND
92072-012
Unavailable
