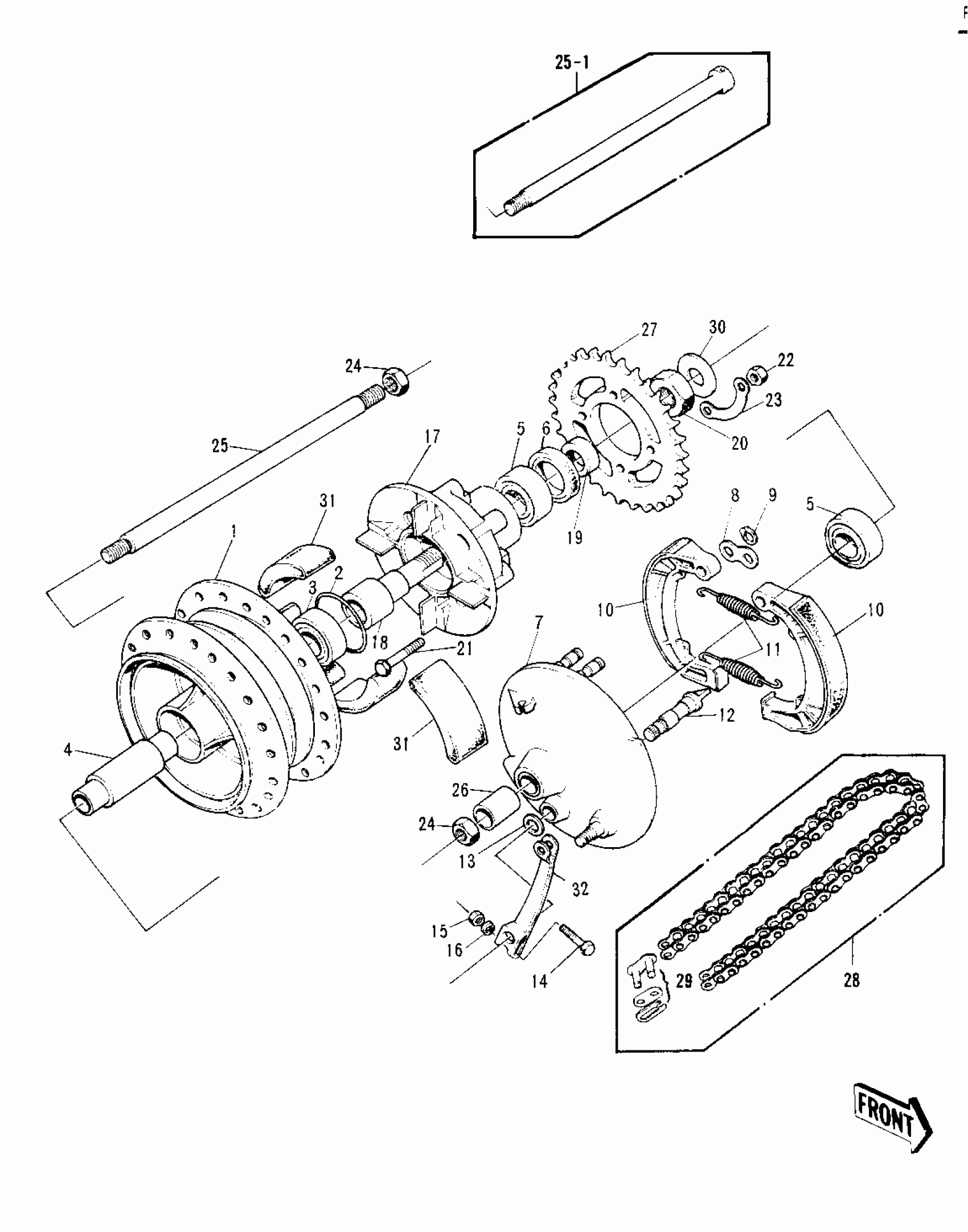

Kawasaki Mach II REAR HUB/BRAKE/CHAIN Diagram
#
1
DRUM ASSY REAR BRAKE
42005-009
Unavailable
1
DRUM-ASSY,RR BRK
41034-5001
Unavailable
2
O RING,60MM
671B2560
Unavailable
3
BEARING-BALL,#6205C3
601B6205
Unavailable
4
SPACER RR HUB BEARING
42010-008
Unavailable
5
BEARING BALL #6205Z
601B6205Z
Unavailable
6
SEAL-OIL,TWC35527
92052-006
Unavailable
7
PANEL-ASY,RR BRK,BUFF
42006-007-80
Unavailable
8
WASHER,BRAKE SHOE
41045-007
Unavailable
9
CIRCLIP-TYPE-C,14MM
480J1400
Unavailable
10
SHOE REAR BRAKE
42019-003
Unavailable
11
SPRING BRAKE SHOE
41049-003
Unavailable
12
CAM SHAFT,REAR BRAKE
42026-015
Unavailable
13
SEAL,BRAKE CAM
41051-001
Unavailable
14
BOLT-UPSET,6X40
112G0640
Unavailable
15
NUT 6MM
311B0600
Unavailable
16
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
17
COUPLING ASSY,RR HUB
42008-012
Unavailable
18
SLEEVE REAR AXLE
42036-006
Unavailable
19
COLLER RR AXLE SLEEVE
42037-006
Unavailable
20
NUT SLEEVE
42045-006
Unavailable
21
BOLT-REAR SPROCKET
92003-087
Unavailable
21
BOLT-REAR SPROCKET
92003-087
Unavailable
22
NUT-HEX-FINE,10MM
314B1000
Unavailable
23
WASHER,SPROCKET LOCK
92088-005
Unavailable
24
NUT,16MM
314B1600
Unavailable
25
AXLE-REAR
42031-033
Unavailable
25-1
AXLE-REAR
42031-033
Unavailable
26
COLLAR REAR HUB R.H
42032-008
Unavailable
27
REAR SPROCKET 43T
42041-102
Unavailable
28
DR CHAIN 530X98
92057-014
Unavailable
29
CHAIN JOINT 530
92058-008
Unavailable
30
WASHER,17.3X32X3.2
42046-009
Unavailable
31
DAMPER REAR HUB SHOCK
42014-008
Unavailable
32
LEVER,REAR BRAKE CAM
42029-037
Unavailable
