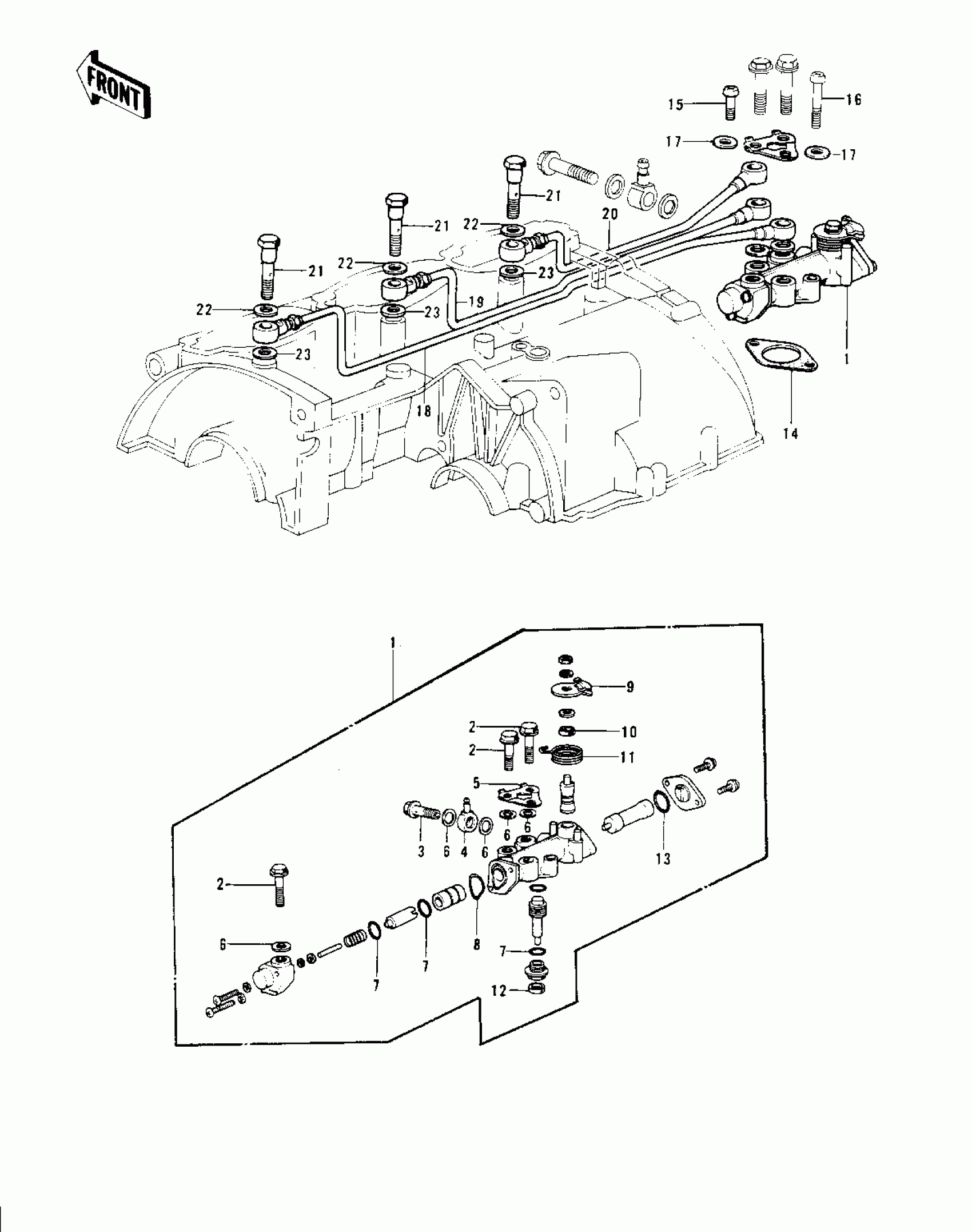

Kawasaki Mach II OIL PUMP ('74-'75 S3/S3-A) Diagram

#

Description

Price

1

PUMP ASSY,OIL

16082-1009

Unavailable

1

PUMP ASSY,OIL

16082-1009

Unavailable

2

BOLT,BANJO,L=13.5

92060-008

Unavailable

3

BOLT BANJO

92060-009

Unavailable

4

CONNECTOR BANJO

92061-015

Unavailable

5

WASHER,OIL PUMP LOCK

92024-058

Unavailable

6

WASHER OIL PUMP BANJO

92022-077

Unavailable

7

RING-O,OIL PUMP SHAFT

16090-002

Unavailable

8

RING-O,CAP,BANJO SIDE

16088-002

Unavailable

9

LETER,OIL PUMP CABLE

16096-011

Unavailable

10

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

Unavailable

11

SPRING OIL PUMP LEVER

16093-002

Unavailable

12

SEAL-OIL,OIL PUMP SHAFT

16091-001

Unavailable

13

"0" RING,LOWER CAP

16090-003

Unavailable

14

GASKET,OIL PUMP

11060-1160

Unavailable

15

SCREW-PAN-CROS

220B0514

Unavailable

16

SCREW-PAN-CROS

220B0528

Unavailable

17

WASHER,5.5X10.5X0.8

92022-037

Unavailable

18

PIPE-OIL,L.H

16134-012

Unavailable

19

PIPE-OIL,CENTER

16134-013

Unavailable

20

PIPE-OIL,R.H

16134-014

Unavailable

21

BOLT-BANJO,CR

92060-010-79

Unavailable

22

GASKET,10.5X16X1

92065-058

Unavailable

23

GASKET,8.5X16X1

92065-023

Unavailable
