1973 Kawasaki Mach II Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1973 Kawasaki Mach II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

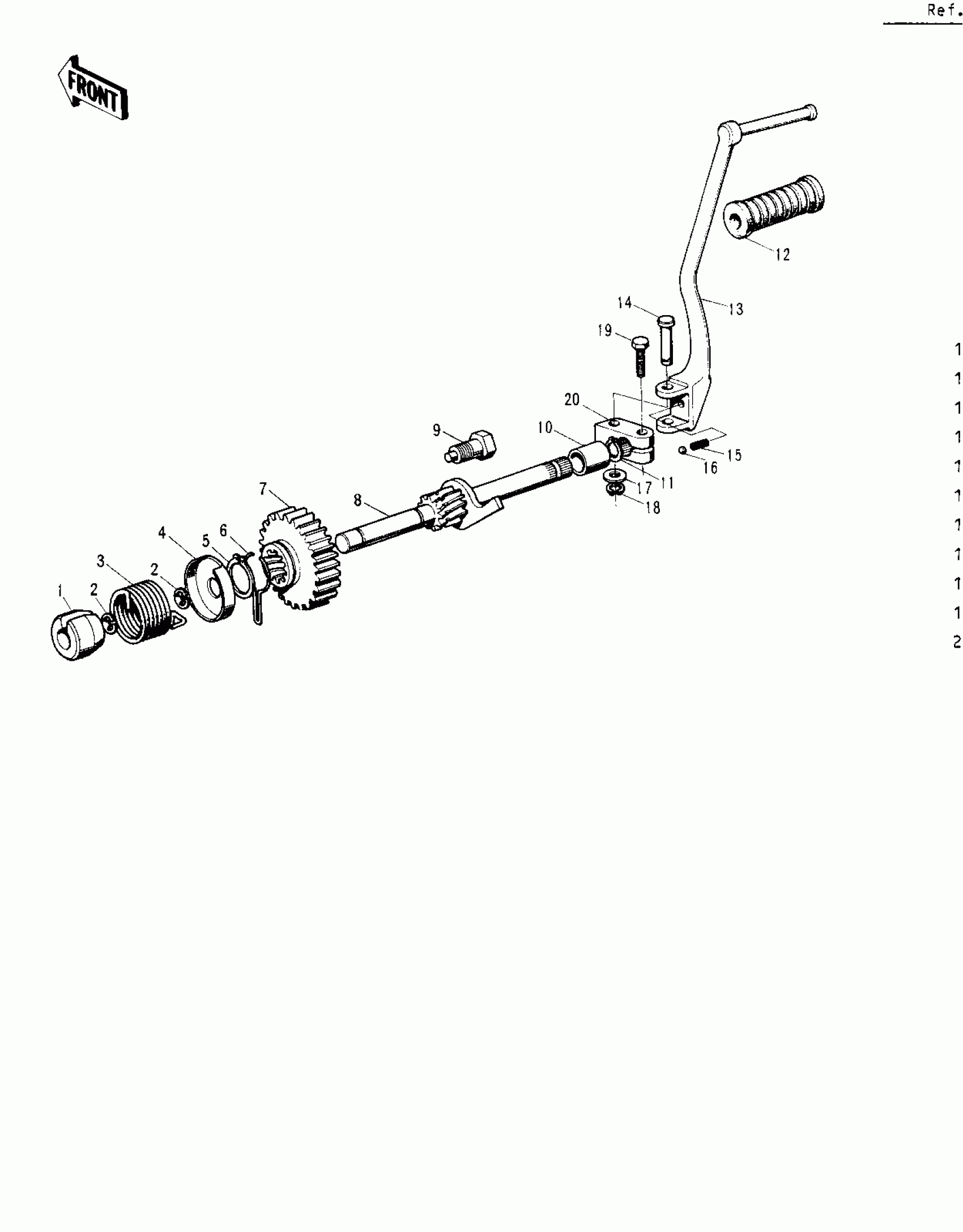

1973 Kawasaki Mach II Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

GUIDE KICK SPRING

13070-001

Out of stock

2

CIRCLIP-TYPE-E,10MM

482J0100

Out of stock

3

SPRING KICKSTARTER

92081-021

Out of stock

4

PLATE KICK GEAR HLDER

13071-003

Out of stock

5

CIRCLIP-TYPE-C,26MM

480J2600

Out of stock

6

HOLDER KICK GEAR

13077-002

Out of stock

7

GEAR-KICKSTARTER

13068-024

Out of stock

8

SHAFT ASY,KICKSTARTER

13245-009

Out of stock

8

SHAFT,KICKSTARTER

13245-008

Out of stock

9

STOPPER KICKSTARTER

13072-006

Out of stock

10

BUSH

92028-072

Out of stock

11

CIRCLIP-TYPE-C,16MM

480J1600

Out of stock

12

DAMPER,KICK PEDAL

13063-004

Out of stock

13

PEDAL-KICKSTARTER

13058-038

Out of stock

14

PIN-KICKSTARTER PEDAL

92043-068

Out of stock

15

SPRING,KICK PEDAL

92081-020

Out of stock

16

BALL-STEEL,1/4

600A0800

Out of stock

17

WASHER PLAIN 10MM

410B1000

Out of stock

18

CIRCLIP 8MM

482J8000

Out of stock

19

BOLT-KICK PEDAL

92001-101

Out of stock

20

BOSS-KICK PEDAL

13061-015

Out of stock
