1973 Kawasaki Mach II Crankshaft/pistons Diagram

← All diagrams

Find the part on the Crankshaft/pistons diagram for your 1973 Kawasaki Mach II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

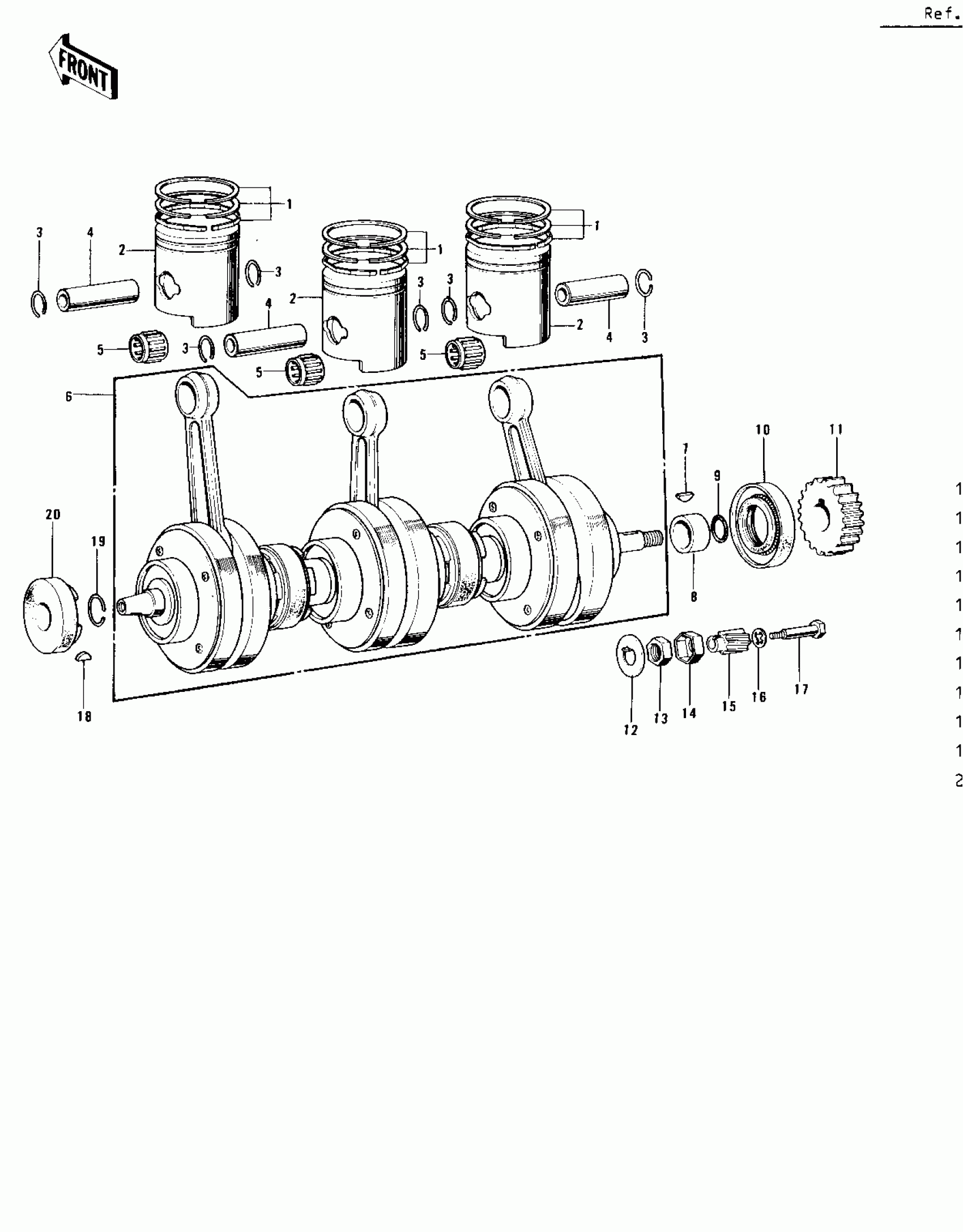

1973 Kawasaki Mach II Crankshaft/pistons Diagram

#

Description
Price
Status
Order Qty

1

RING SET,STD

13008-039

Out of stock

1

RING SET,0.020" O.S

13025-043

Out of stock

1

RING SET,0.040" O.S

13024-047

Out of stock

2

PISTON,STD

13001-043

Out of stock

2

PISTON,0.020' O.S

13029-052

Out of stock

2

PISTON,0.040' O.S

13027-050

Out of stock

3

RING-SNAP

92036-005

Out of stock

4

PIN-PISTON

13002-002

Out of stock

5

NEEDLE BEARING SM END

13033-007

Out of stock

6

CRANK CONROD ASSY

13031-1008

Out of stock

6

CRANK CONROD ASSY

13031-1008

Out of stock

7

WOODRUFF KEY

92038-015

Out of stock

8

COLLAR CRANK OIL SEAL

92027-031

Out of stock

9

"0" RING,22MM

92055-018

Out of stock

10

OIL SEAL,TC326210

92050-052

Out of stock

11

PINION-PRIMARY

13121-021

Out of stock

12

WASHER,LOCK,18MM

92024-067

Out of stock

13

NUT,18MM

92015-019

Out of stock

14

WASHER LOCK

92024-021

Out of stock

15

PINION-OIL PUMP

16084-014

Out of stock

16

WASHER LOCK 6MM

463H0600

Out of stock

17

BOLT-OIL PUMP GEAR

92003-068

Out of stock

18

KEY,WOODRUFF

92038-001

Out of stock

19

CIRCLIP

92036-013

Out of stock

20

OIL SEAL TCY256210

92050-041

Out of stock
