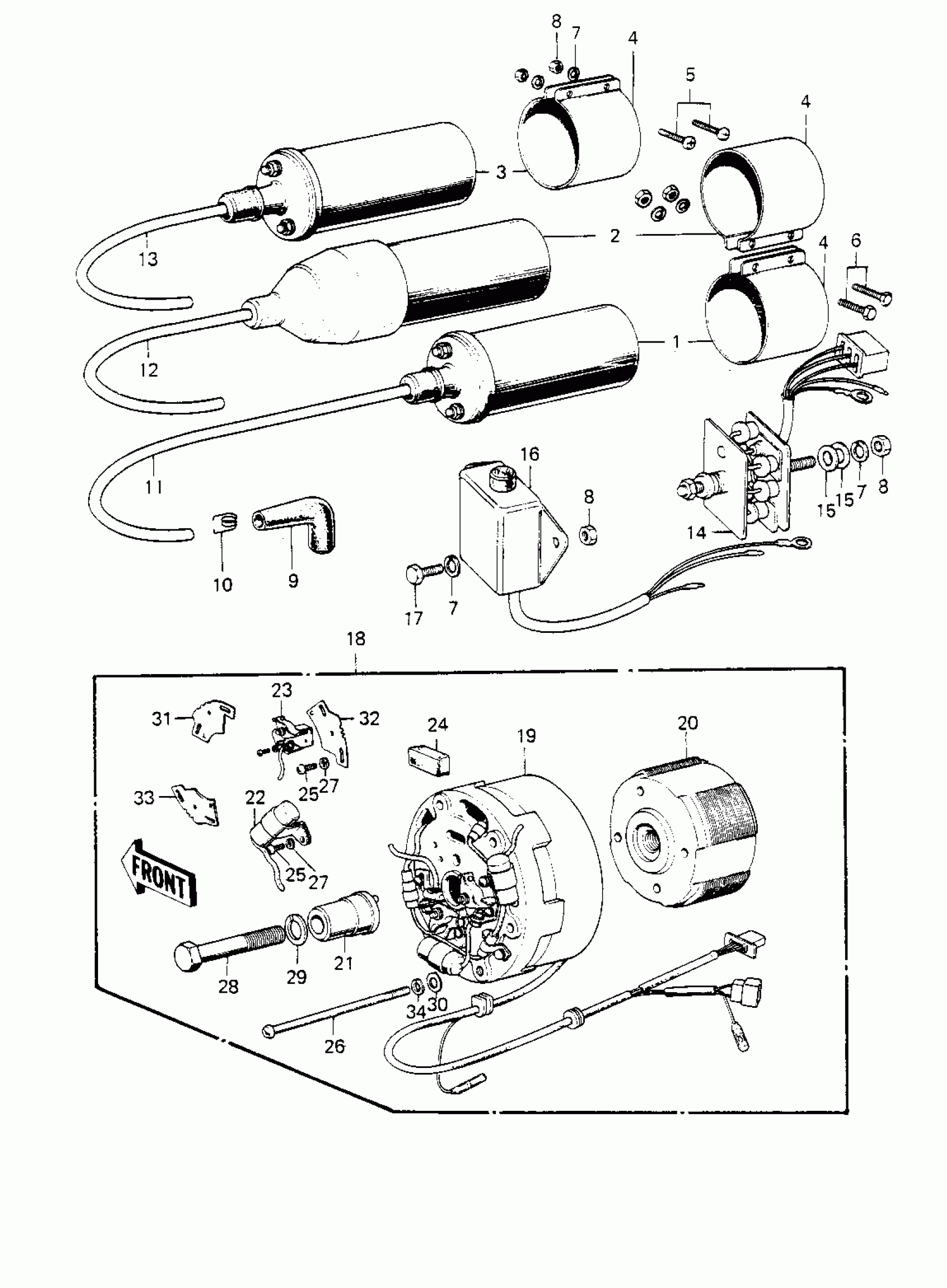

Kawasaki Mach II IGNITION/GENERATOR/REGULATOR Diagram
#
1
COIL-IGNITION,L.H
21121-051
Unavailable
2
COIL-IGNITION,CENTER
21121-052
Unavailable
3
COIL-IGNITION,R.H
21121-053
Unavailable
4
BAND-IGNITION COIL
21126-004
Unavailable
5
SCREW PAN HEAD 6X40
220B0640
Unavailable
6
BOLT-UPSET,6X16
112G0616
Unavailable
7
WASHER SPRING 6MM
461F0600
Unavailable
8
NUT 6MM
311B0600
Unavailable
9
CAP-SPARK PLUG
21130-009
Unavailable
10
TERMINAL,SPARK PLUG CAP
92101-001
Unavailable
11
CORD-HIGH TENSION,L.H
21133-020
Unavailable
12
CORD-HIGH TENSION,CNT
21133-021
Unavailable
13
CORD-HIGH TENSION,R.H
21133-022
Unavailable
14
RECTIFIER
21061-011
Unavailable
15
WASHER PLAIN 6MM
411B0600
Unavailable
16
REGULATOR,VOLTAGE
21066-020
Unavailable
16
REGULATOR,VOLTAGE
21066-020
Unavailable
17
BOLT-UPSET,6X12
112G0612
Unavailable
18
ALTERNATOR
21001-019
Unavailable
18
ALTERNATOR
21001-022
Unavailable
19
STATOR ASSY
21003-015
Unavailable
19
STATOR ASSY
21003-016
Unavailable
20
ROTOR
21007-020
Unavailable
21
CAM
21014-008
Unavailable
22
CONDENSER
21013-026
Unavailable
23
BREAKER-CONTACT
21008-019
Unavailable
24
FELT-OIL
21019-011
Unavailable
25
SCREW PAN HEAD 4X8
220B0408
Unavailable
26
SCREW PAN HEAD 5X80
220E0580A
Unavailable
26
SCREW PAN HEAD 5X55
220B0555A
Unavailable
27
WASHER SPRING 4MM
461F0400
Unavailable
28
BOLT HEX HEAD 8X70
114B0870
Unavailable
29
WASHER SPRING 8MM
461F0800
Unavailable
30
WASHER-PLAIN,5MM
411B0500
Unavailable
31
PLATE-CNTCT BRKER,L.H
21156-003
Unavailable
32
PLATE-CNTCT BRKER,CEN
21156-004
Unavailable
33
PLATE-CNTCT BRKER,R.H
21156-005
Unavailable
34
WASHER SPRING 5MM
461F0500
Unavailable
